Hometouch 7 Bticino for managing all MyHOME Up 3488W functions
BTI 3488W
8005543627433

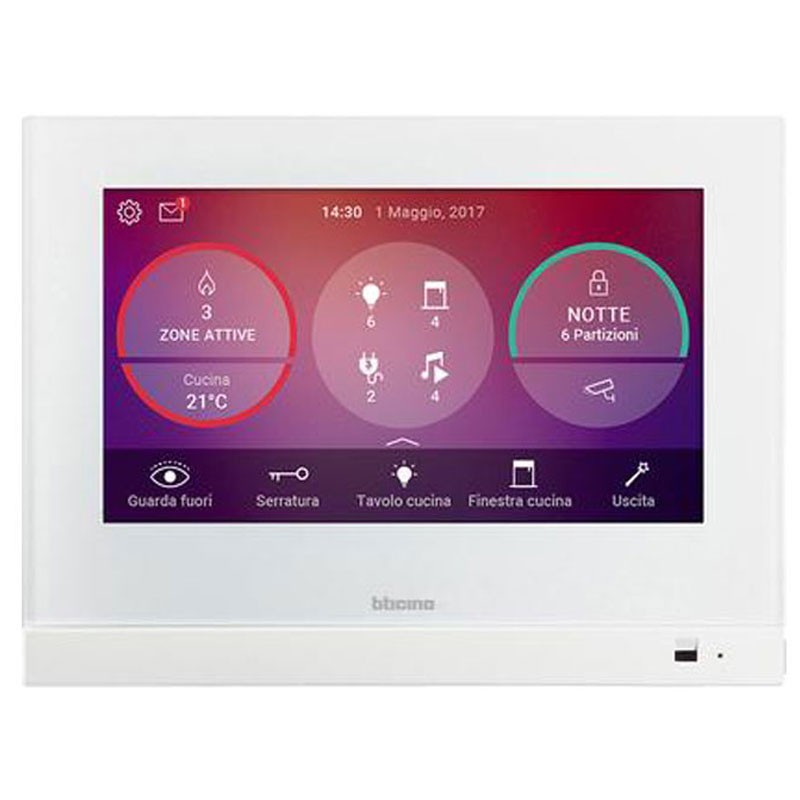

Hometouch 7 Bticino for the management of all MyHOME Up functions that can be integrated with the video entry system for use as a connected indoor station and with Netatmo indoor and outdoor cameras.
€457.40
Items Available: 10
: 1
Frequently bought together
Advantages:
- No configuration is required to use the home automation functions.
- Allows you to view the status of the MyHOME_Up system and to control the integrated functions (lights, automations, scenarios, burglar alarm, temperature management, Nuvo music system, ...)
- It is also possible to manage the video door phone functions of a BTicino 2-wire system both from the capacitive Display 7 and from Smartphone, thanks to the application DOOR ENTRY for HOMETOUCH available for Android and iOS.
- Flush-mounted installation with dedicated box for masonry (art. 3487) or wall-mounted thanks to the metal bracket provided
- White colour version.
It is also possible to manage the video entryphone functions of a 2-wire BTicino system both from the capacitive Display 7 and from Smartphone, thanks to the application DOOR ENTRY for HOMETOUCH available free of charge for Android and iOS.
It allows the connection to the automation BUS, to the video door phone BUS and to the network through Ethernet cable or Wifi connection; it needs an additional power supply. Recessed installation with dedicated box for masonry (art. 3487) or wall-mounted thanks to the metal bracket supplied.
Features:
- Power supply: 27V d.c. from SCS BUS
- Absorption SCS AV: A 27 V, max 20 mA when in conversation
- Absorption SCS MH: 1 mA
- Maximum absorption from terminal 1-2: 300 mA (conditions as above, measured during conversation)
- Operating temperature: 5 35 °C.
LHOMETOUCH must be connected to a WI-FI network with the following characteristics: - IEEE 802.11 b/g/n (2.4 GHz) 13 channels.
Encryption and authentication method supported:
- OPEN WPA-PSK networks
- Including TKIP WPA2-PSK
- Including AES WEP 64 bits (5-digit ASCII or 10-digit hexadecimal codes)
- WEP 128 bits (13 ASCII or 26 hexadecimal digits codes)
- WPS authentication (supported for WPA2-PSK).
Ports and protocols used by Hometouch and DoorEntryApp. - 5061 SIP (used by Hometouch) - 5228 SIP (used by the mobile app) - 0 to 65000 UDP (runtime negotiated for media streaming) - 80/443 HTTP / HTTPS.
