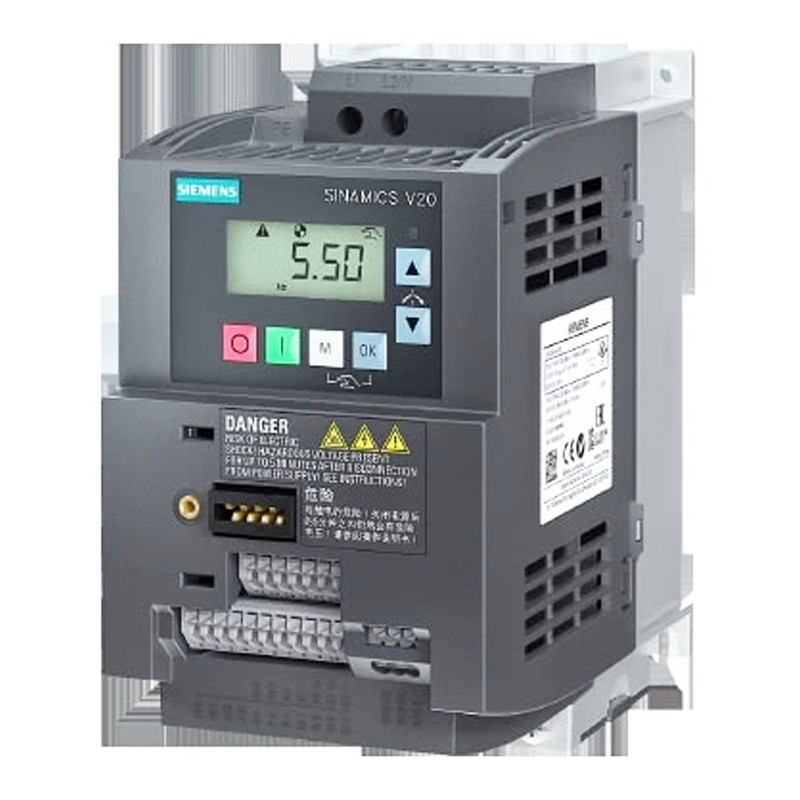

Siemens SINAMICS V20 1.5KW 6SL32105BB215BV1 frequency converter
SIE 6SL32105BB215BV1
4042948676967
Siemens SINAMICS V20 frequency converter, rated power 1.5KW, number of phases (Input 1 AC) (Output 3 AC), supply voltage 200-240V.
€189.26
Out of stock
Incoming
Features:
- Network frequency 47 ... 63 Hz
- Rated power (HO) 1.50 kW / 2.00 hp
- Power factor ? 0.72
- Phase shift factor cos 0,95
- Yield 0,98
- Filter class (integrated) Class B
- Cooling External fan
- Installation altitude 1000 m (3281 ft)
- USS Communication, Modbus RTU
- Mounting position Wall mounting / side-by-side mounting
- Degree of protection IP20 / UL open type
- Construction size FSAC
- Net weight 1.40 kg ( 3.09 lb )
- Width 91.0 mm ( 3.57 in )
- Height 160.9 mm ( 6.33 in )
- Depth 147.0 mm ( 5.79 in )
- Connections: Motor cable length, max. Shielded 25 m (82 ft) - Unshielded 50 m (164 ft)
- Standard digital inputs 4
- Number of relays with changeover contacts 1
- Number as transistor 1
- Analog Inputs 2 (Can be used as additional digital input)
- Analog outputs 1.
There are no reviews
Data sheet
- Type: Signal converters
