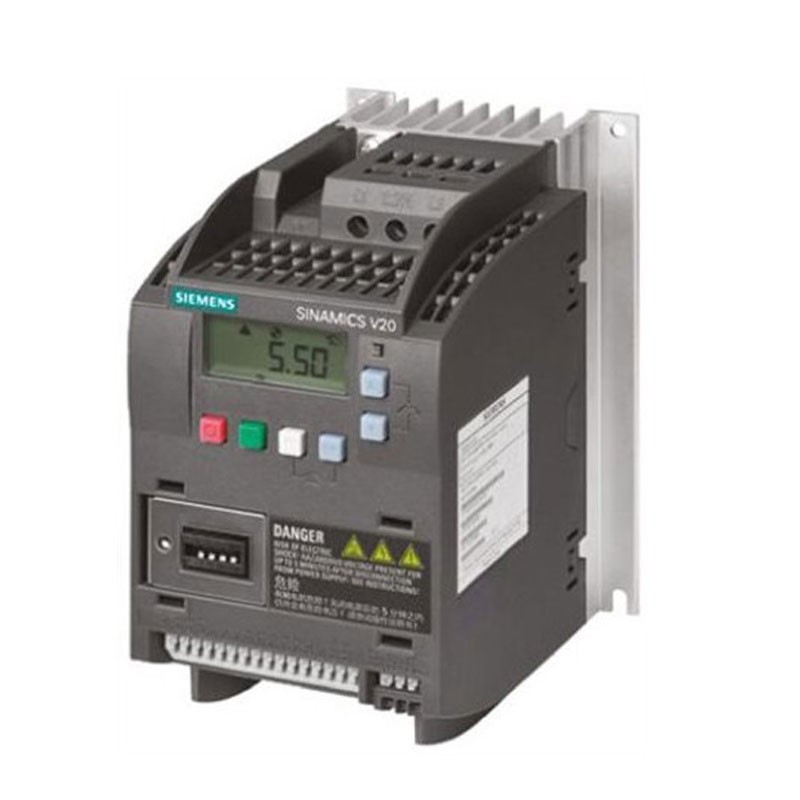

Siemens SINAMICS V20 frequency converter 2.20KW 6SL32105BE222CV0


SIE 6SL32105BE222CV0 6940408102651

Siemens SINAMICS V20 frequency converter, with the following characteristics:

  • Input=mains voltage: 380 ... 480 V -15 % +10 %
  • Output=rated voltage 400V IEC, 480V NEC
  • Rated power: 2.20 Kw
  • Number of phases: 3 AC
  • Mains frequency: 47 to 63 Hz
  • Output pulse frequency: 4.00 kHz
  • Output frequency: 0 to 550 Hz
  • Power factor: λ 0.72
  • Phase shift factor: cos φ 0.95
  • Efficiency: η 0.98
  • Filter class (built-in): class A
  • Communication: USS, Modbus RTU
  • Standard digital inputs: 4
  • Digital outputs: number of relays with changeover contacts 1, number as transistors 1
Request info about this product

Siemens SINAMICS V20 frequency converter 2.20KW 6SL32105BE222CV0

€315.43
€315.43

Siemens SINAMICS V20 frequency converter 2.20KW 6SL32105BE222CV0

€315.43
Tax included
klarna Pay in installments with Klarna
qty

Siemens SINAMICS V20 frequency converter 2.20KW 6SL32105BE222CV0

€315.43

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

Other technical features:

  • Analog inputs: 2 (Can be used as an additional digital input)
  • Analog outputs: 1
  • Efficiency class IE2
  • Comparison with reference converter (90% / 100%) 31 %
  • Installation altitude 1,000 m
  • Operating temperature: -10/+60°C
  • Storage temperature: -40/+70°C
  • Relative humidity: 95%
  • Cooling: external fan
  • Max motor cable length: shielded 10m, unshielded 50m
  • Mounting location: wall mounting / side-by-side mounting
  • Degree of protection: IP20
  • Construction size: FSA
  • Net weight: 1.10kg
  • Dimensions: width 90mm, height 166mm, depth 145.5mm
  • Compliance with standards: CE, cULus, C-Tick (RCM), KC
  • CE marking EN 61800-5-1 /EN 60204-1 and EN 61800- 3

Overload capacity:

  • Low overload (LO) 110 % rated output current for 60 s, cycle time 300s
  • High overload (HO) 150 % rated output current for 60 s, cycle time 300s
