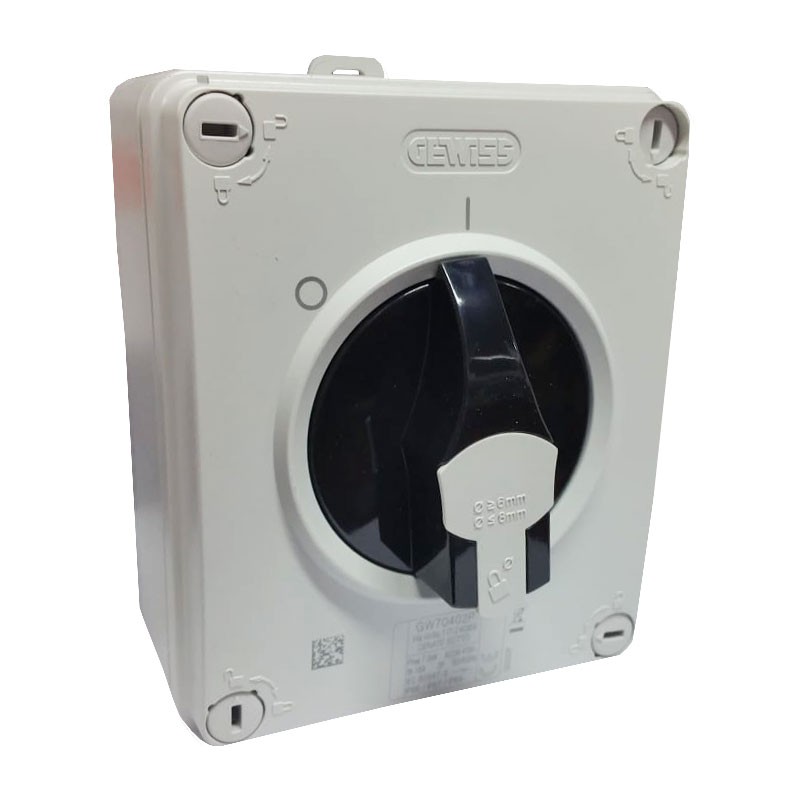

Gewiss rotary switch HP 3X16A wall IP65 GW70402P
GEW GW70402P
8011564942745
Gewiss HP rotary disconnect switch, with the following features:
- Box in insulating material
- Rated current 16A
- Number of poles: 3
- Black padlockable knob
- Degree of protection: IP66/IP67/IP69
- External dimensions BxHxD: 125x150x75,5 mm
€40.96
Items Available: 86
: 21
Features:
- Gewiss Series
- Shock resistance IK08
- Ambient temperature: -25 +60 °C
- Cover screws (number and type): 4 insulated 1/4 turn
- Input holes: 2 x M20/25 + 2 x M20/25
- Padlockable: YES (max. 3 padlocks in ON and OFF position)
- Accessories Type: Max. 2 aux contacts
- Current in AC22 (415V) 16
- Current in AC23A (415V) 16
- Cable cross section: Max 10 mm²
- Electrocod code 1742
- Ware number 85363010
There are no reviews
Data sheet
- Type: Rotary switches
- Voltage: 415VAC
- Poles: 3P
- Degree of protection: IP67
- Amps: 16A
