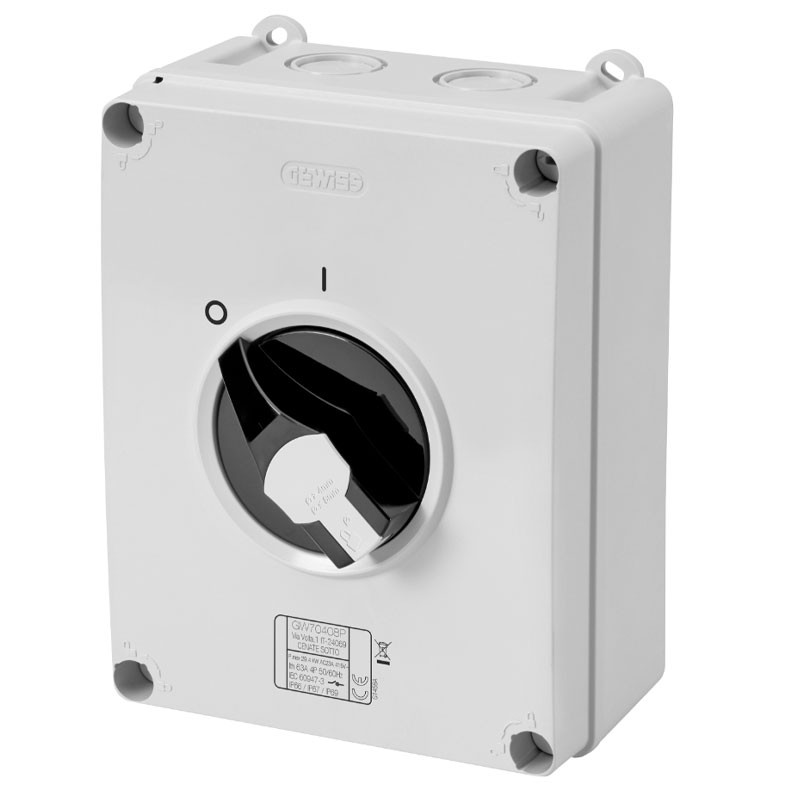

Gewiss HP 4X63A rotary wall switch IP65 GW70408P
GEW GW70408P
8011564943131
Gewiss rotary switch/disconnector, with the following characteristics:
- Current in AC22 (415V): 63
- Current in AC23A (415V): 63
- Cable cross section: Max 25 mm²
- Rated current 63A
- Version: cassette type
- Insulation material
- 4 poles
- Degree of protection: IP66/IP67/IP69
€85.43
Items Available: 38
: 9
Other technical features:
- Impact resistance: IK08
- Ambient temperature: -25/+60 °C
- Cover screws (number and type): 4 1/4-turn insulators
- Input holes: 2 x M25/32 + 2 x M25/32
- Padlockable: YES (max. 3 padlocks in ON and OFF)
- Accessory type: max. 2 aux contacts

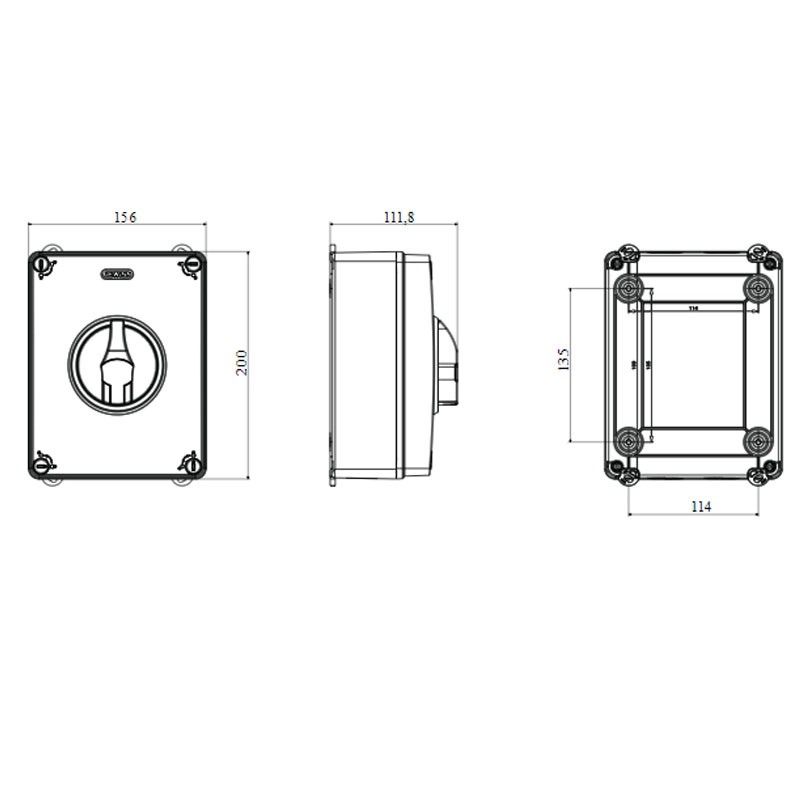

- External dimensions BxHxD (mm): 156x200x95
- Electrocod code 1742
- Ware number 85363030
There are no reviews
Data sheet
- Type: Rotary switches
- Voltage: 415VAC
- Poles: 4P
- Degree of protection: IP67
- Amps: 63A
