Eaton M22-KC10 NA Auxiliary Contact Screw Base Mounting 216380
EAO 216380
4015082163808
Eaton M22-KC10 pluggable auxiliary contact, with the following features:
- Without lamp holder
- Mounting type: floor mounting
- Electrical connection design: screw fitting
- Rated operating voltage: 500V AC
- Rated maximum operating voltage: 220V DC
- Rated impulse withstand voltage [Uimp]: 6000V AC
- Rated insulation voltage [Ui]: 500V
- Overvoltage category/pollution degree: III/3
- Rated use current 6 amps
- Degree of protection IP20
![](https://www.elettronew.com/56074-large_default/auxiliary-contact-eaton-m22-kc10-na-screw-fixing-base-216380.jpg)

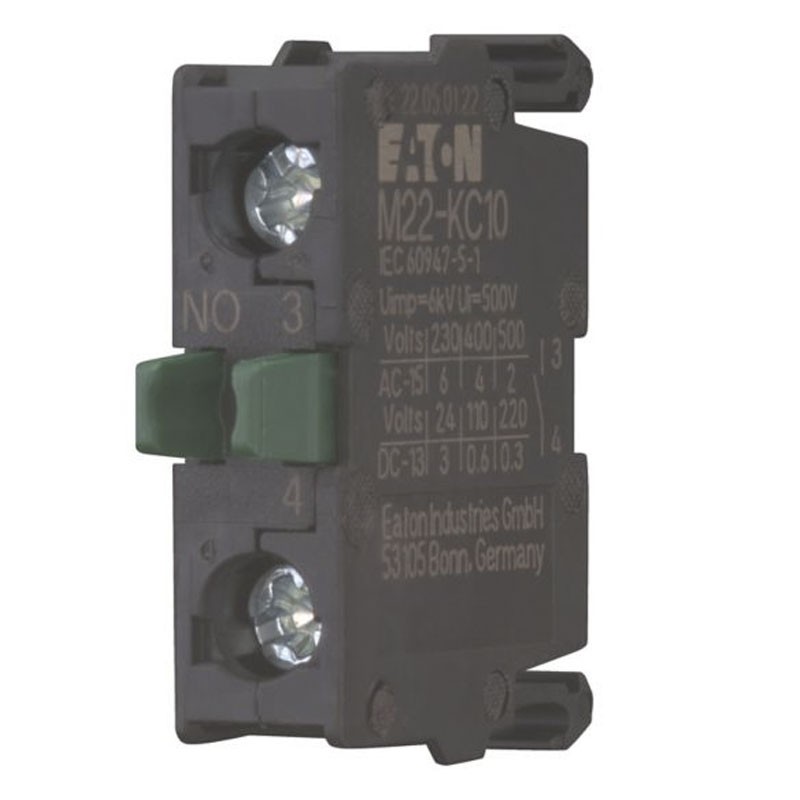

Eaton M22-KC10 NA Auxiliary Contact Screw Base Mounting 216380
€4.38
€4.38
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 40
Other technical features:
- Connection types Screw terminals
- Type of attachment: mounting in housing or on telescope clip
- Connection to SmartWire-DT no
- NA = norm. Open: 1 NO contact
- Mechanical life [maneuvers]: >5 x 106
- Maneuvering frequency [man/h]: ≦ 3600
- Actuating force: ≦ 5 NET
- Drive torque (screw terminals) ≦ 0.8 Nm
- Suitability for climates: Damp heat, constant, according to IEC 60068-2-78, Damp heat, cyclic according to IEC 60068-2-30
- Ambient temperature: daytime: -25/+70 °C
- Shock resistance according to IEC 60068-2-27 - Shock duration 11 ms, half-wave > 30 g
- Connection cross-sections Rigid: 0.75 - 2.5 mm2
- Flexible connection sections: 0.5 - 2.5 mm2
- Flexible connection sections with ferrule: 0.5 - 1.5 mm2
Data sheet
- Type:
- Auxiliary Contacts
- Voltage:
- 500VAC
- Degree of protection:
- IP20
