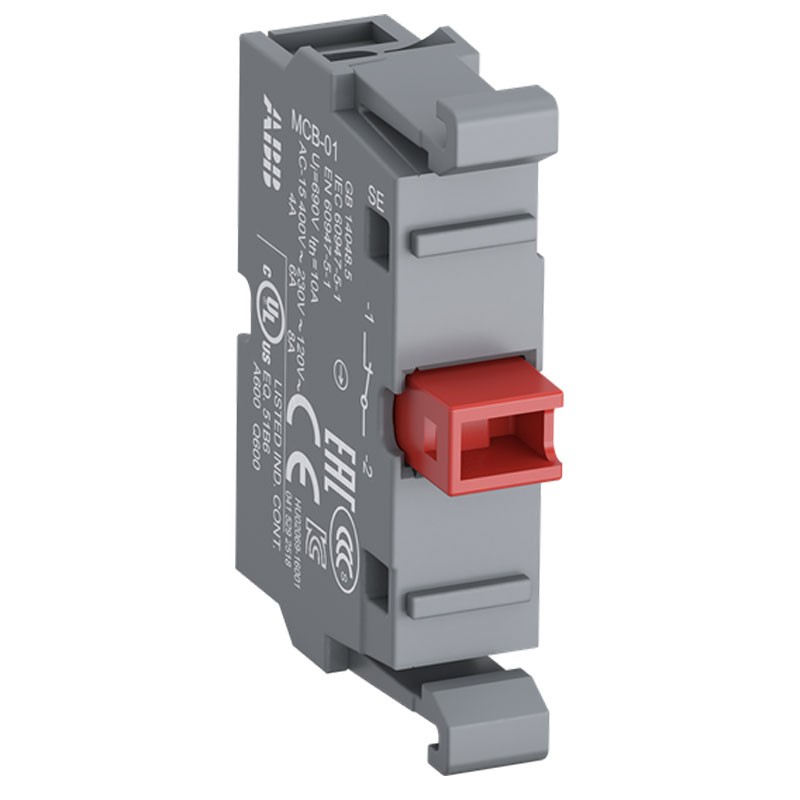

ABB NC contact for EO 571 3 pushbuttons


ABB EO 571 3 7320500307762

ABB 1 NC contact device, for front mounting push buttons.

Request info about this product

ABB NC contact for EO 571 3 pushbuttons

€4.27
€4.27

ABB NC contact for EO 571 3 pushbuttons

€4.27
Tax included
klarna Pay in installments with Klarna
qty

ABB NC contact for EO 571 3 pushbuttons

€4.27

Buy it within and receive it from Tuesday, 28 May
Two-year warranty
Secure Payment
Easy return within 14 days

From the smallest internal component to the strongest external one, ABB controllers are pieces of true engineering. They are reliable, flexible, robust. The devices of the compact and modular range can be easily combined to achieve a uniform appearance on the panel front. Complete range to meet all customer requirements.

Features:

  • Abb Series
  • Rated Frequency (f): 50/60 Hz Power Circuit
  • Rated Operating Voltage: Maximum 690V AC/DC
  • Lighting: Non-illuminated
  • Function: Without holder
  • Mounting Type:Front mounting
  • Number of NC auxiliary contacts:1
  • Number of NO auxiliary contacts:0
  • Degree of Protection:IP20 Terminals
  • Terminal type:Screw Terminals
  • Tightening torque: 0.9 Nm
  • Cable stripping length: 8 mm
  • Rated operating current AC-15 (Ie): (230 V AC) 6A
  • Power Loss: Maximum 2.5W
  • Mechanical life: 10 million

Ambient Temperature:

  • In operation -25 ... +70 °C
  • In storage: -40 ... +85 °C

Rated operating current DC-13 (Ie):

  • (24 V) 5 A
  • (125 V) 1.1 A

Cable cross-sections-main circuit

  • Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
  • Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm
  • Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² Flexible with Insulated Ferrule
  • Flexible 1 x 0.75 ... 2.5 mm² flexible
  • Flexible 2 x 0.75 ... 2.5 mm
  • Solid 1 x 0.75 ... 2.5 mm²
  • Solid 2 x0.75...2.5 mm²

Dimensions:

  • Width: 0.01 m
  • Height: 0.044 m
  • Depth: 0.028 m
  • Net weight: 0.04 kg

Data sheet

Type:
Auxiliary Contacts
Degree of protection:
IP20
