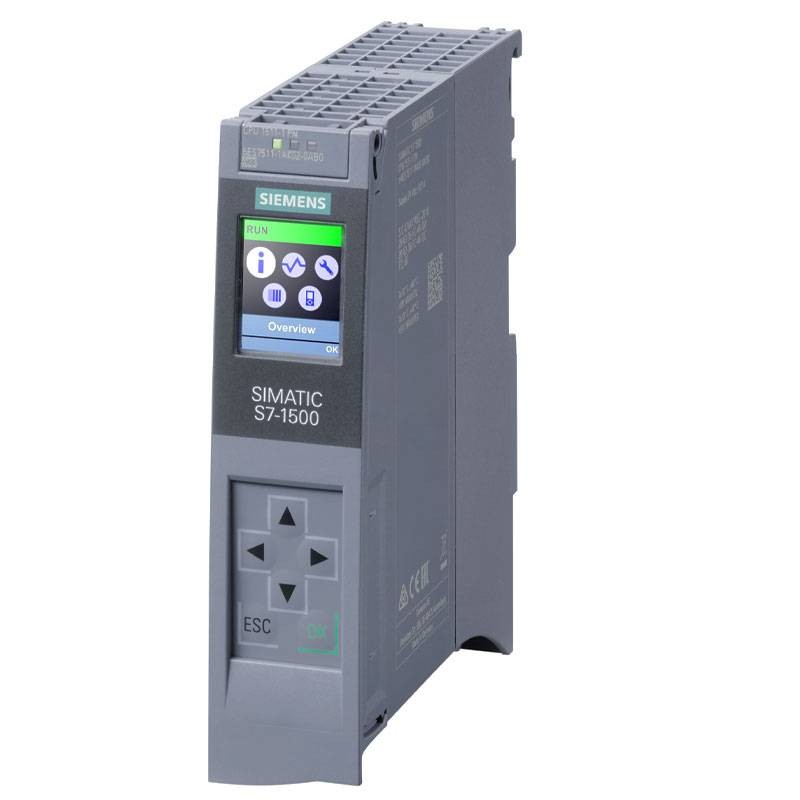

Siemens Simatic CPU S7-1500 1513-1 PN 300 KB 6ES75131AL020AB0
SIE 6ES75131AL020AB0
4047623408635
Siemens Simatic S7-1500 1511-1 PN CPU working memory of 300 KB for program and 1.5 MB for data, equipped with a PROFINET IRT interface with 2-port switch with the following features:
- Working memory: 300 KB for program and 1.5 MB for data
- PROFINET IRT interface with 2-port switch
- Display: 3.45 cm, 8 control keys
- Power supply: 24 V DC
- Current consumption: 0.7 A (nominal), max. 0.95 A
- Power supply in the backplane bus: 10 W
- Dimensions: 35x147x129 mm (W-H-P)
Designed for demanding industrial applications. This CPU offers high performance and advanced safety, ideal for environments that require effective and secure I/O management.
€2,104.48
Items Available: 8
: 4
Siemens Simatic S7-1500 CPU CPU High Performance and Flexible Memory.
The 1513-1 PN CPU provides 300 KB of memory for program and 1.5 MB for data, enabling advanced management of complex processes. With the SIMATIC Memory Card, up to 32 GB, users can expand space for project and backup data. The processing speed of 40 ns per bit operations makes this CPU extremely responsive, suitable for industrial operations that require speed and accuracy.
Advanced I/O Management and Connectivity
With up to 2,048 I/O modules supported and an address range for inputs and outputs of up to 32 KB, the 1513-1 PN CPU is highly flexible in managing connected devices. The built-in Web Server and compatibility with Shared Device and PROFIenergy provide additional options for remote communication and monitoring.
Security and Data Protection Features
The CPU is equipped with numerous security features, including copy protection, block protection, and password configurable data protection. This advanced protection makes the CPU secure for applications that require high levels of confidentiality and data integrity.
Diagnostics and Advanced Communication Features
The CPU supports up to 32 PROFINET sessions, with a capacity of 10,000 nodes and up to 50,000 accessible variables, offering high efficiency in communication and monitoring applications. S7 diagnostic functions allow system monitoring and management of up to 600 program messages and 100 diagnostic messages, ensuring effective plant management.
Features:
- Working memory: 300 KB for program and 1.5 MB for data
- PROFINET IRT interface with 2-port switch
- CPU performance: 40 ns for bit operations
- Advanced security features: copy protection, block protection, display password
- SIMATIC memory card up to 32 GB required
- Display: 3.45 cm, 8 control keys
- Power supply: 24 V DC (allowable range: 19.2 - 28.8 V)
- Current consumption: 0.7 A (nominal), max. 0.95 A
- Power supply in the backplane bus: 10 W
- Processing times: 40 ns (bits), 72 ns (word)
- Number of I/O modules supported: 2,048
- Integrated Web Server
- Operating temperature: -25 °C to 60 °C (horizontal mounting)

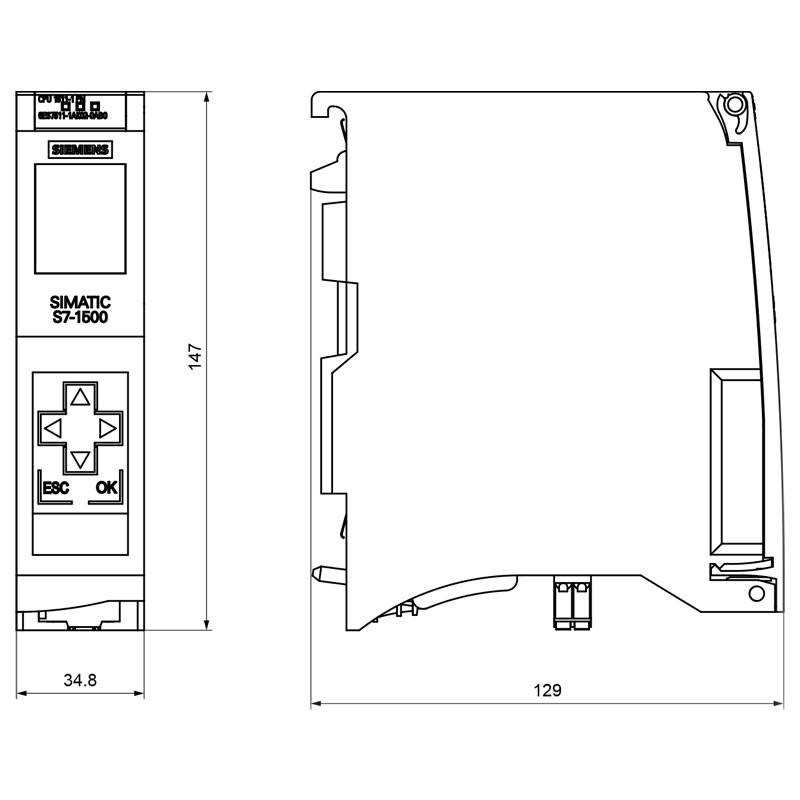

- Dimensions: Width 35 mm, Height 147 mm, Depth 129 mm
There are no reviews
Data sheet
- Type: CPU Central Units
- Voltage: 24V
