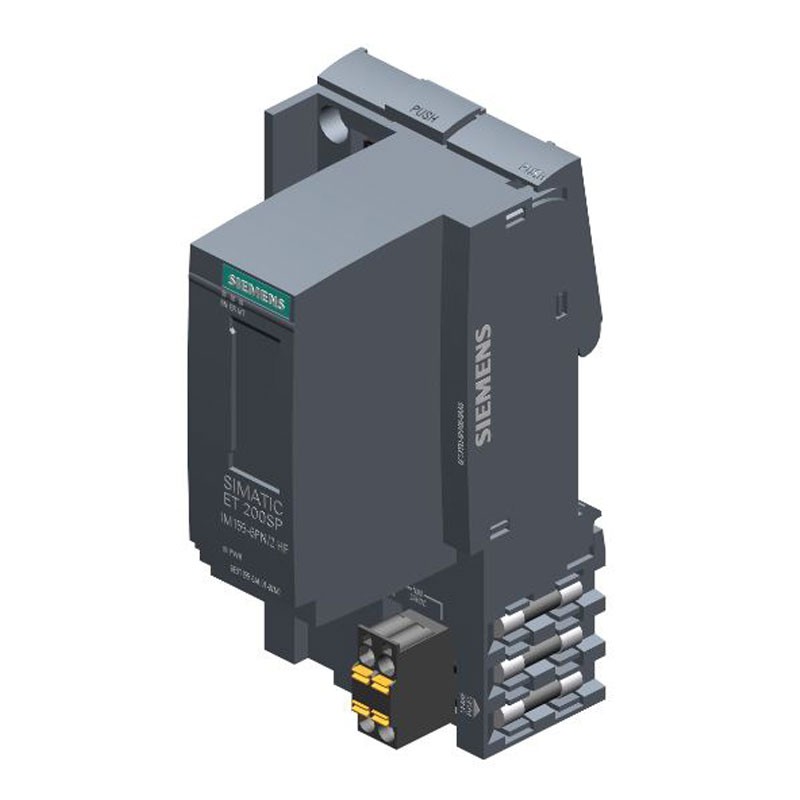

Siemens PROFINET 2-Port Interface Module IM 155-6PN/2 6ES71556AU010CN0

Siemens
Siemens
SIE 6ES71556AU010CN0 4047623409755

Siemens PROFINET 2-port interface module IM 155-6PN/2 1 connector place for BusAdapter, max. 64 periphery modules and 16 ET 200AL modules, S2 redundancy, Multi Hot Swap, 0.25 ms, clock synchronous operation, optional PN pull-down, including server module.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens PROFINET 2-Port Interface Module IM 155-6PN/2 6ES71556AU010CN0
€387.53
€387.53

€387.53
Tax included
Calculate shipping cost
Items Available: 6
Further availability of the manufacturer
€387.53

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Characteristics:

  • Product type designation IM 155-6 PN/2 HF
  • Hardware version From FS02
  • Firmware version V4.2
  • FW upgrade possible S
  • I&M data Yes; I&M0 ... I&M3
  • Replacing a module during operation (Hot Swapping) Yes; Multi Hot Swapping
  • Operation with clock synchronism Yes
  • Tool Changer Yes; Docking Station and Docking Unit
  • Local I/O data coupling No
  • Local data set coupling No
  • STEP 7 TIA Portal can be designed/integrated from STEP 7 V15.1 version onwards
  • STEP 7 Designable/Integrated from version Designable via GSD file
  • PROFINET from version GSD/revision GSDML V2.3
  • Nominal value (DC) 24 V
  • Permissible range, lower limit (DC) 19.2 V
  • Permissible range, upper limit (DC) 28.8 V
  • Reverse polarity protection Yes
  • Mains/voltage interruption buffer time 10ms
  • Current consumption, max. 700 mA
  • Switch-on current, max. 4.5 A
  • Power loss, typ. 2,4 W
  • Addressing space per module, max. 288 bytes; respectively for input and output data
  • Addressing space per station, max. 1,440 bytes; design-dependent
  • Max. number of ET 200SP modules that can be used 64
  • Max. number of ET 200AL modules that can be used 16
  • Number of submodules per station, max. 256
  • Number of PROFINET interfaces 1; 2 ports (switch)
  • Number of ports 2; via BusAdapter
  • Integrated switch Yes
  • BusAdapter (PROFINET) Yes; Usable BusAdapter: BA 2x RJ45, BA 2x M12, BA 2x FC, BA 2x LC, BA LC/RJ45, BA LC/FC, BA 2x SCRJ, BA SCRJ/RJ45, BA SCRJ/FC
  • PROFINET IO-Device Yes
  • Open IE Communication Yes
  • Transmission media redundancy Yes; PROFINET MRP
  • 100 Mbit/s full-duplex (100BASE-TX) PROFINET transmission method
  • 10 Mbit/s No
  • 100 Mbit/s Yes; PROFINET at 100 Mbit/s full-duplex (100BASE-TX)
  • Autonegotiation Yes
  • Autocrossing Yes
  • Number of MtM communication ratios/connections max. 16

There are no reviews

Data sheet

Type:
Interface Modules
Voltage:
24V
