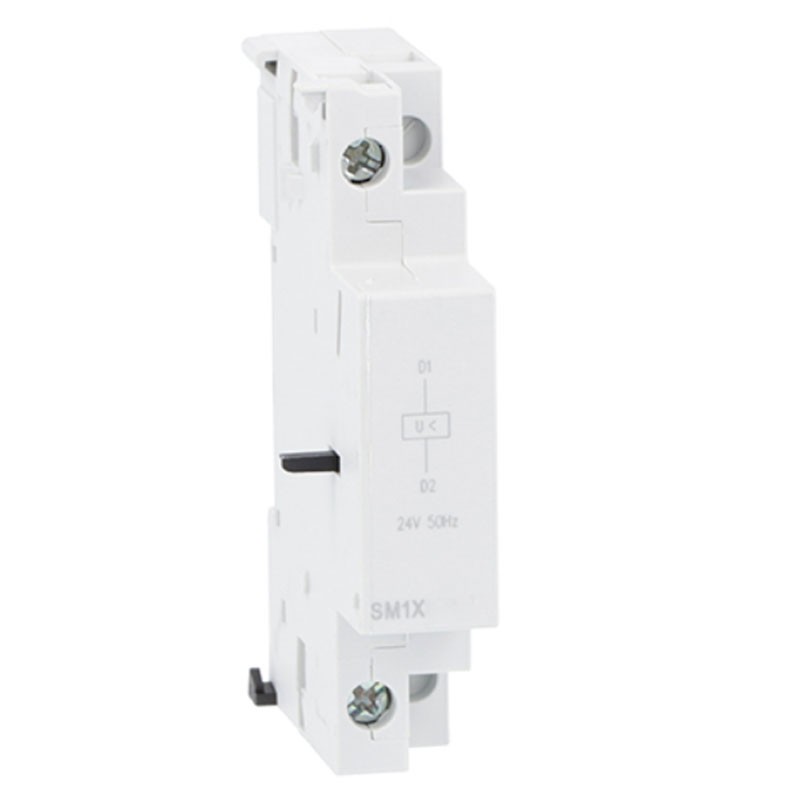

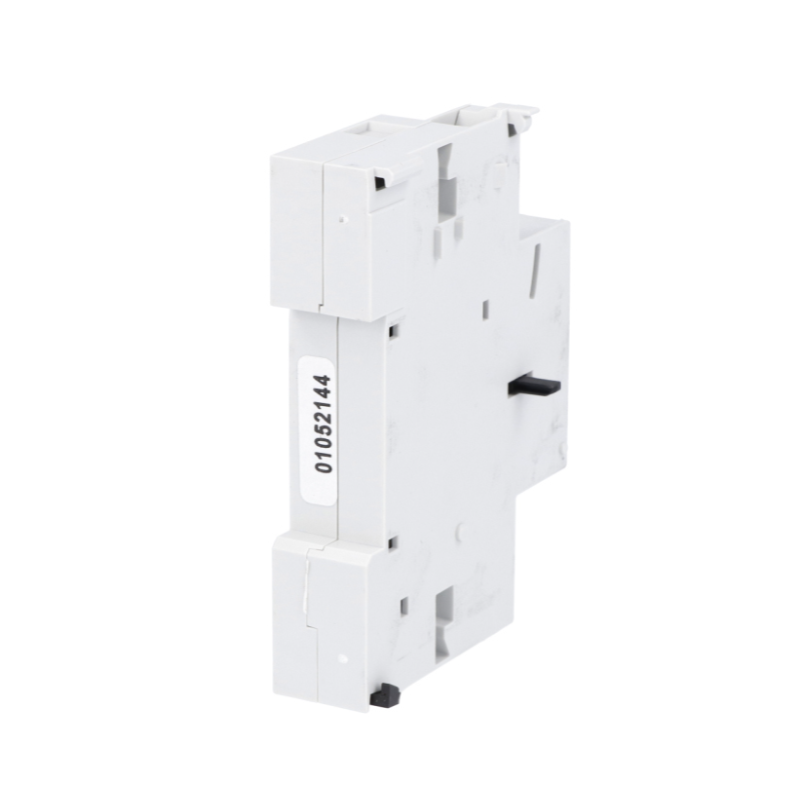

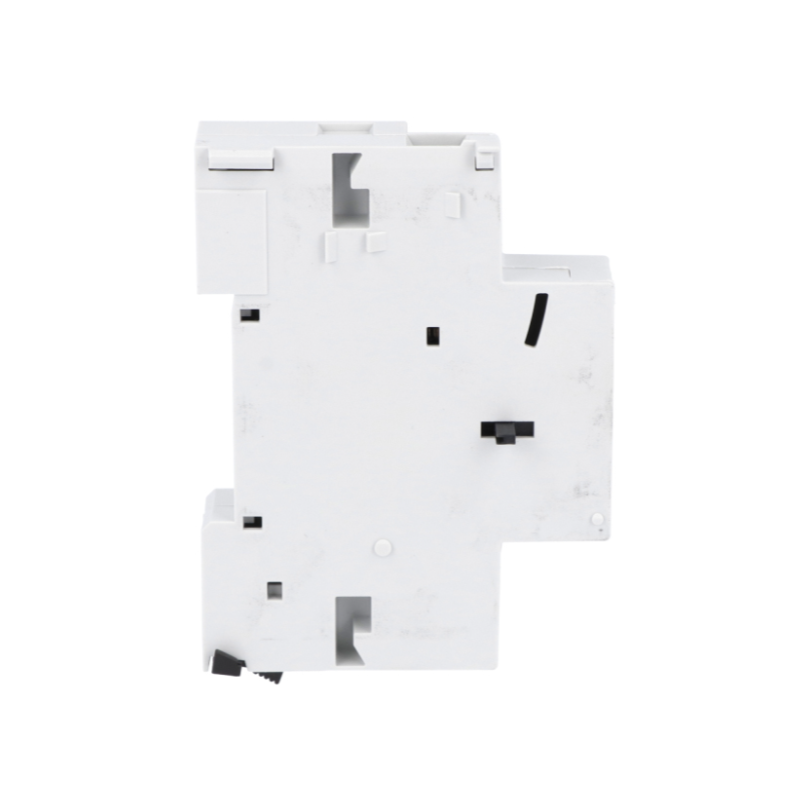

Lovato minimum voltage release 400VAC 50-60HZ - 460VAC SM1X14400

Lovato
Lovato
LOV SM1X14400 8013975219102

Lovato minimum voltage disconnect switch with the following characteristics:



  • IEC/EN rated insulation voltage Ui: 690V
  • Rated impulse withstand voltage Uimp: kV 4
  • Rated supply voltage AC: 400 VAC
  • Rated frequency: 50 Hz
  • Peak consumption: 12VA
  • Maintaining consumption: 3.5VA
  • Release voltage: NOI 35...70
  • Operating voltage: NOI 85...110
  • Operating position: normal vertical - permissible any
  • Weight: 130 grams
  • Mechanical life: cycles 100000
  • Operating temperature: -20/+60°C
  • Storage temperature: -50/+80°C
  • Maximum altitude: m 3000
  • IEC degree of protection: IP20
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato minimum voltage release 400VAC 50-60HZ - 460VAC SM1X14400
€27.78
€27.78

€27.78
Tax included
Calculate shipping cost
Items Available: 7
Further availability of the manufacturer
€27.78

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

There are no reviews

Data sheet

Type:
Under-voltage Releases
Voltage:
400VAC
Degree of protection:
IP20
