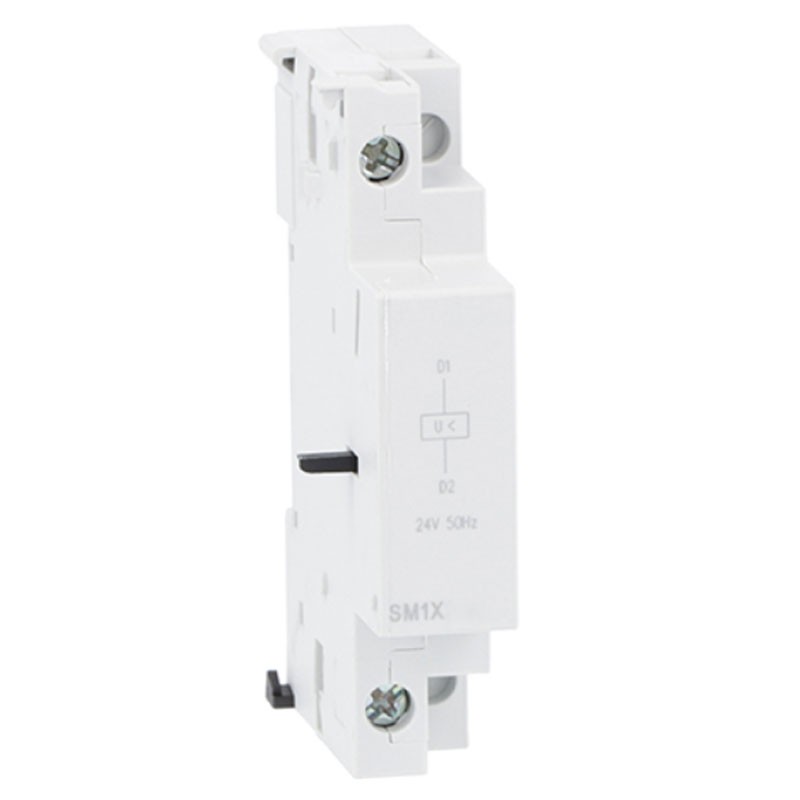

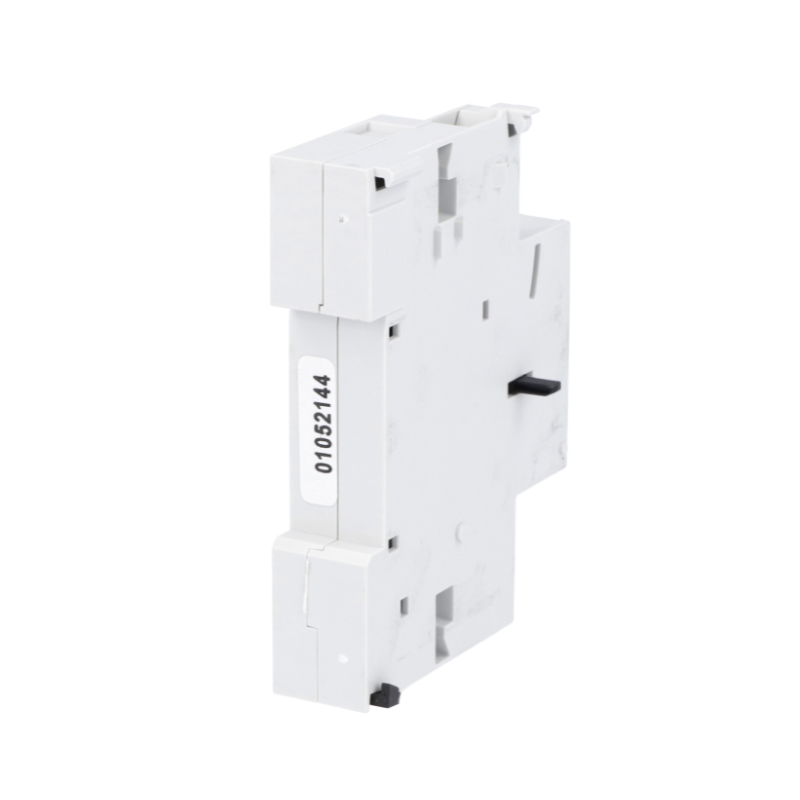

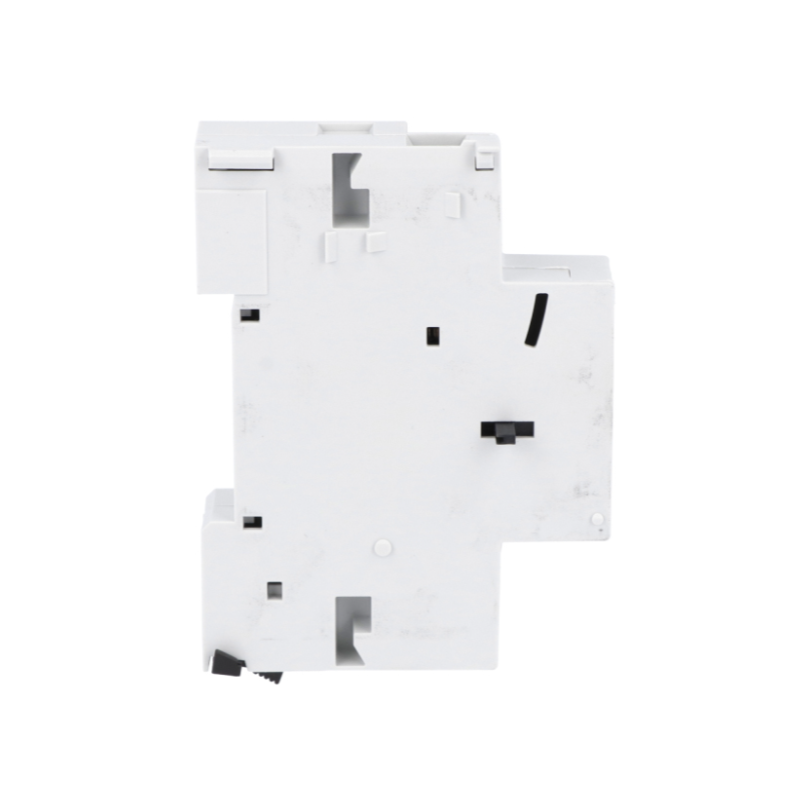

Lovato minimum voltage circuit breaker 230VAC SM1X14230
LOV SM1X14230
8013975219096
Lovato minimum voltage disconnect switch with the following characteristics:
- IEC/EN rated insulation voltage Ui: IN 690
- Rated impulse withstand voltage Uimp: kV 4
- Rated AC supply voltage: VAC 230
- Rated frequency: 50 Hz
- Peak consumption: VA 12
- Maintaining consumption: VA 3.5
- Release voltage: WE 35...70
- Operating voltage: NOI 85...110
€27.78
Items Available: 4
Other technical features:
- Operating position: normal vertical, permissible any
- Weight: 130 grams
- Mechanical life cycles: 100000
- Operating temperature: min °C -20/max °C +60
- Storage temperature: min °C -50/max °C +80
- Maximum altitude: m 3000
- IEC degree of protection: IP20
Tightening torque for terminals:
- min Nm 1
- max Nm 1
- min Ibin 9
- max Ibin 9
Conductor cross-section:
- AWG/Kcmil: min 18 - max 14
- Flexible conductor section w/o lug: min mm² 0.75 - max mm² 2.5
- Flexible conductor section c/w lug: min mm² 0.75 - max mm² 2.5
Terminals:
- Gender: screw
- Screw: M3.5
- Width: mm 7.2
- Ph2 tool
There are no reviews
Data sheet
- Type: Under-voltage Releases
- Voltage: 230VAC
- Degree of protection: IP20
