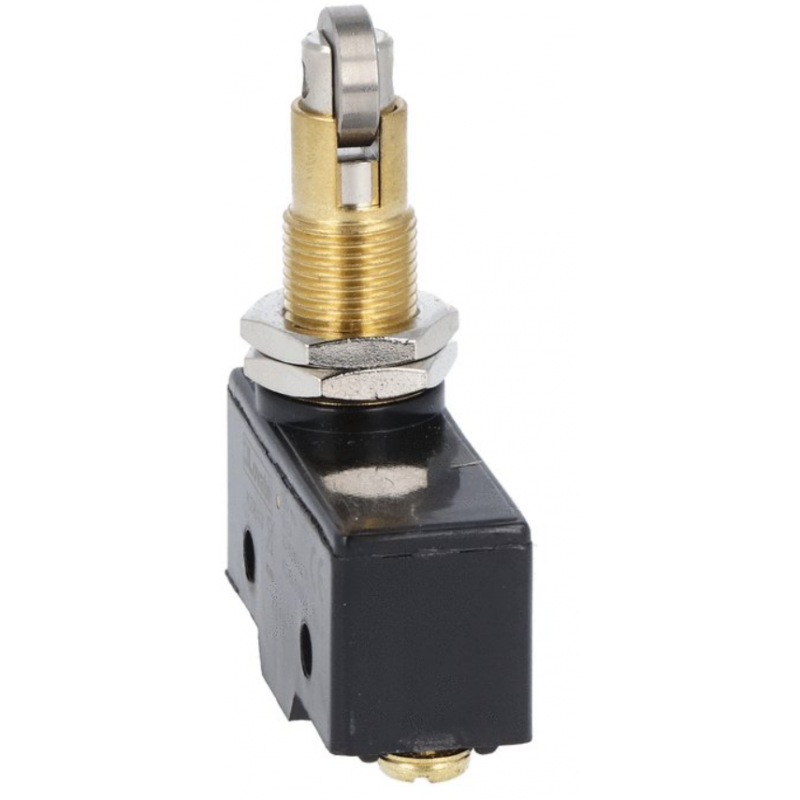

Lovato microswitch K series with rod with roller 1NO+1NC KSB1V

Lovato
Lovato
LOV KSB1V 8013975148259

Lovato K series microswitch, with the following features:

  • Material/Body: Thermoplastic polymer
  • Contact type: 1NO/NC
  • Thermal current Ith: UN 15
  • IEC/EN 60947-5-1 designation: A600 P300
  • Rated insulation voltage Ui: IN 250
  • Switching speed: min SM 0.01 - max SM 1
  • Operating speed: min SM 0.05 - max SM 1
  • IEC Conventional free air thermal current Ith: UN 15
  • Resistance per pole (average value) mΩ: <15
  • Conductivity: 10 mA 5V
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato microswitch K series with rod with roller 1NO+1NC KSB1V
€10.02
€10.02

€10.02
Tax included
Calculate shipping cost
Items Available: 22
Further availability of the manufacturer
€10.02

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Other Features:

  • Type of terminals: screw
  • Fixing head: fixed
  • Operating torque: N 2.5 - ozin 9
  • Weight: 57 grams
  • Mechanical life cycles: 20000000
  • Electrical life cycles: 500000
  • Mechanical operation: cycles/h 240
  • Operating temperature: min °C -25 - max °C +70
  • Storage temperature: min °C -40 - max °C +70
  • IP degree-Body housing: IP00 or IP20 with terminal covers
  • Pollution degree: 3

There are no reviews

Data sheet

Type:
Microswitches
