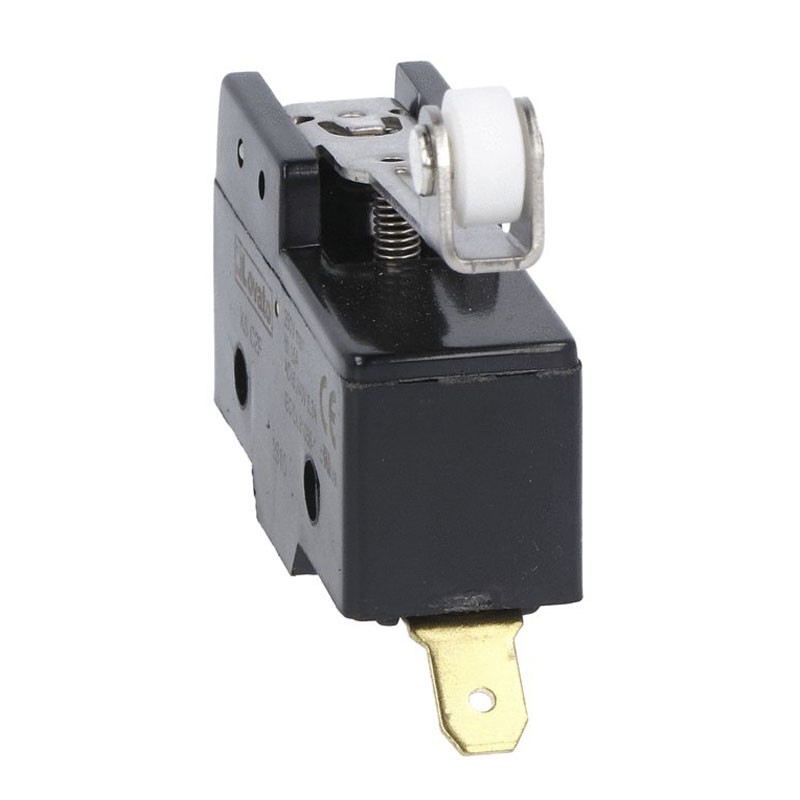

Lovato K-series lever microswitch with roller 48.5mm 1NA-NC KSC2F

Lovato
Lovato
LOV KSC2F 8013975148426

Lovato K-series plastic microswitch with roller, with the following features:

  • Housing material: thermoplastic polymer
  • Contact type: 1NA/NC
  • 48.5mm long lever
  • Conventional thermal current Ith: 15A
  • Designation according to IEC/EN 60947-5-1: A600 P300
  • Rated insulation voltage Ui: 250V
  • Switching speed: min m/s 0.01 - max m/s 1
  • Actuation speed: min m/s 0.05 - max m/s 1
  • Conventional thermal free air current Ith IEC: 15A
  • Resistance per pole (average value): m?<15
  • Conductivity: 10mA 5V
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato K-series lever microswitch with roller 48.5mm 1NA-NC KSC2F
€7.49
€7.49

€7.49
Tax included
Calculate shipping cost
Items Available: 8
Further availability of the manufacturer
€7.49

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • Connections: faston
  • Actuator head fixing: fixed
  • Actuating force: N 1.3 - ozin 4.7
  • Weight: 38 grams
  • Mechanical life: cycles 20000000
  • Electrical service life: cycles 500000
  • Mechanical operation: cycles/hour 240
  • Operating temperature: -25/+70°C
  • Storage temperature: -40/+70°C
  • Degree of protection: IP00 or IP20 housing with terminal protection
  • Pollution degree: 3

There are no reviews

Data sheet

Type:
Microswitches
