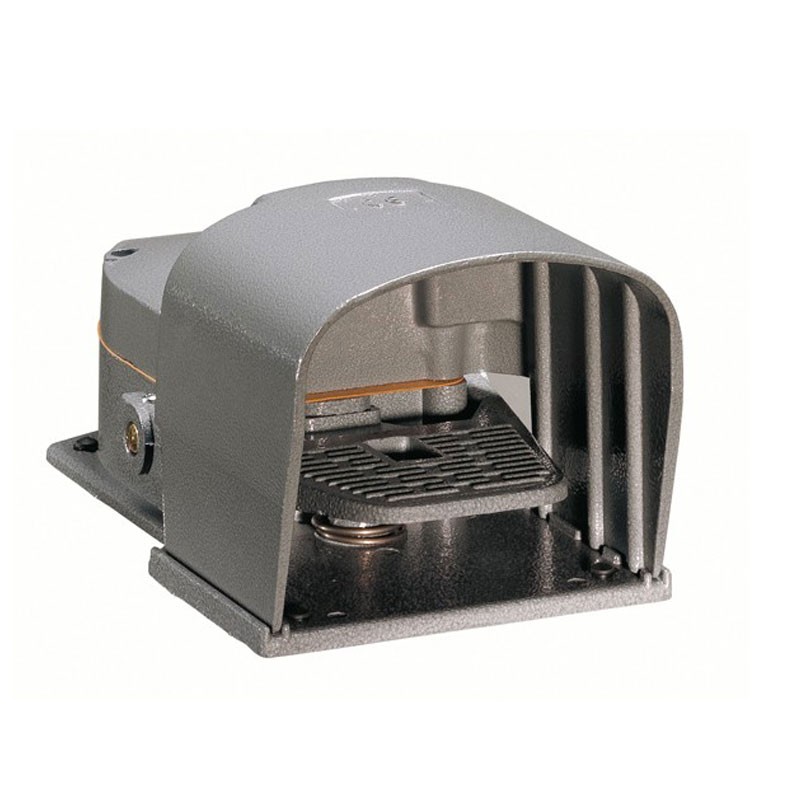

Lovato foot switch metal housing 1NA+1NC KR200S11
LOV KR200S11
8013975126073
Lovato K SERIES foot switch, with the following features:
- Freely operated
- Metal body
- Housing material: aluminum-zinc alloy
- Contact type: 1NO+1NC Snap-action
- Ith thermal current: UN 10
- IEC/EN 60947-5-1 Designation: A300Q300
- Rated insulation voltage Ui: 440V
- Rated impulse withstand voltage Uimp: kV 4
- Fuse short-circuit protection Class A: 10 gG fuse.
- IEC Conventional free air thermal current Ith: UN 10
€84.74
Items Available: 5
Other technical characteristics:
- Resistance per pole (average value): m? <10
- Operating temperature: -25/+50°C
- Storage temperature: -40/+70°C
- IP rating: IP20 terminals - IP54 body housing
- Pollution degree: 3
- Tightening torque (Max)/Contact terminals: Nm 1 - lbin 0.74 lbft
- Cable connection: self-disconnecting screw terminal
- Cable entry: 1x M20
- Mechanical life cycles: >10000000
There are no reviews
Data sheet
- Type: Foot switches
