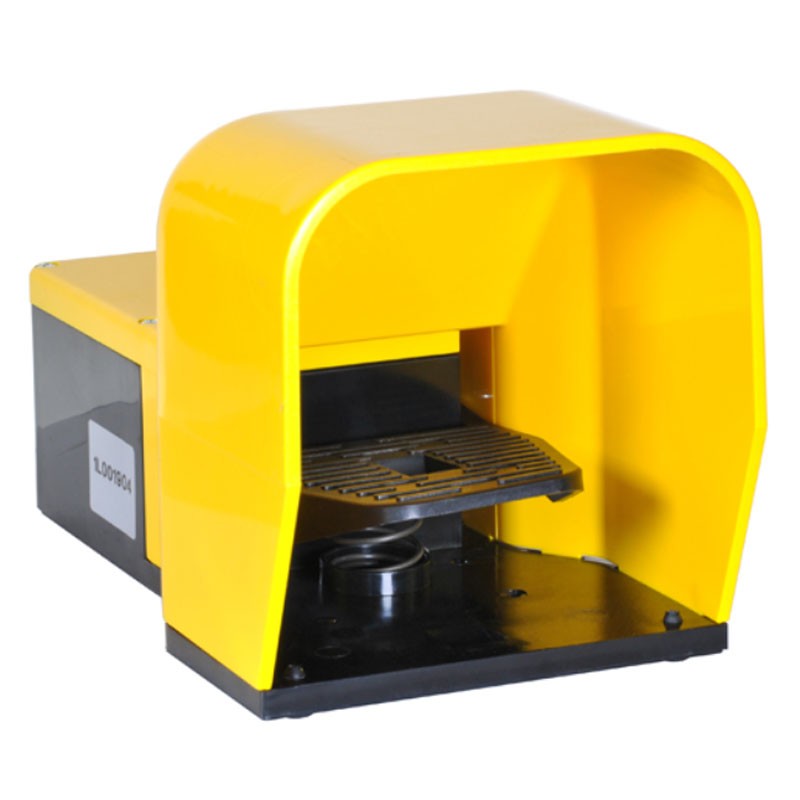

Lovato 1NO+1NC Slow Footswitch KG200L11
LOV KG200L11
8013975125946
Lovato single closed footswitch with the following features:
- Rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: kV6
- Type: Free operating - with cover
- Material: Self-extinguishing thermoplastic polymer with double insulation
- Contact Type: 1NO+1NC Slow Interruption
- Thermal current Ith: UN 10
- IEC/EN 60947-5-1 designation: A600 Q600
- Insulation class: II
€41.44
Items Available: 6
: 2
Features:
- Lovato Series
- Short circuit protection with fuse: Class A 10 gG fuse
- IEC Conventional free air thermal current Ith: UN 10
- Resistance per pole (average value): mΩ <10
- Tightening torque (max): Contact terminals: Nm 1 - lbin 0,74 lbft
- Cable connection: Self-locking screw terminal
- Cable entry: 1 x M20
- Mechanical life: Cycles >10000000
- Operating temperature: min °C -25 - max °C +70
- Storage temperature: min °C -40 - max °C +70
- IP degree: Terminals IP20 - housing: IP54
- Pollution degree: 3
There are no reviews
Data sheet
- Type: Foot switches
