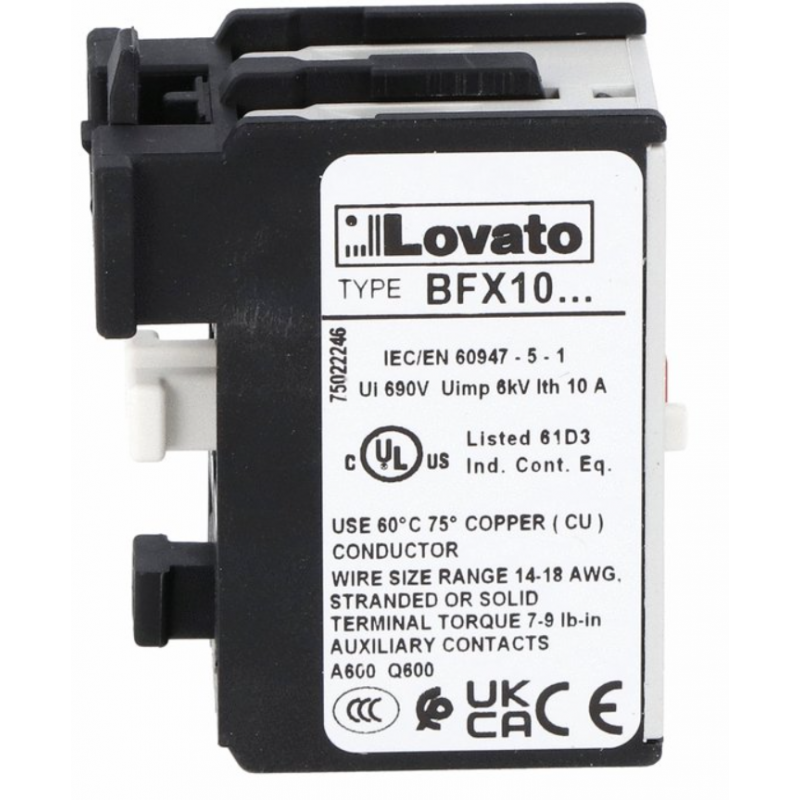

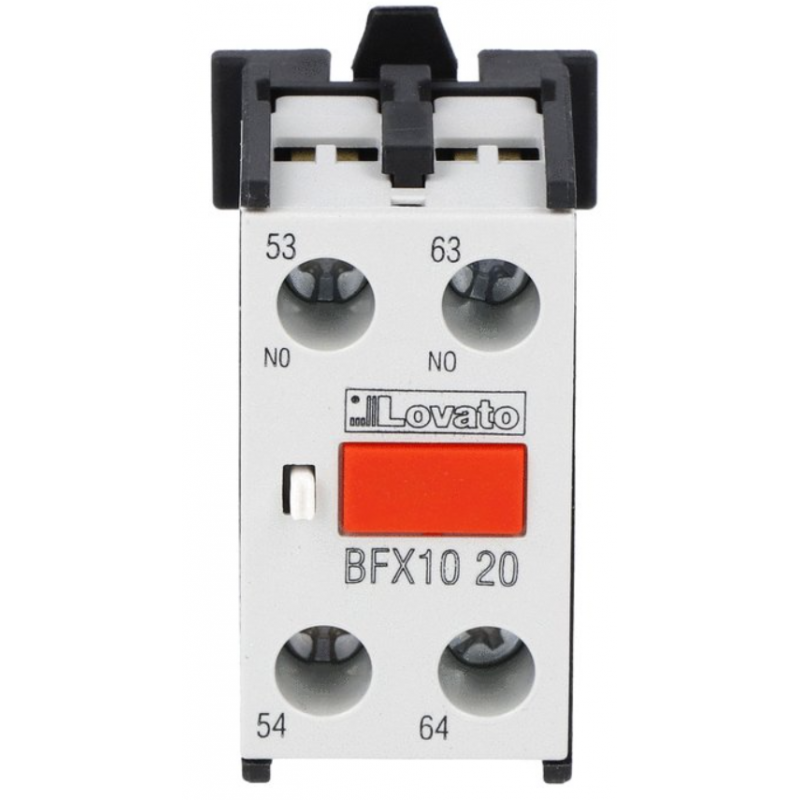

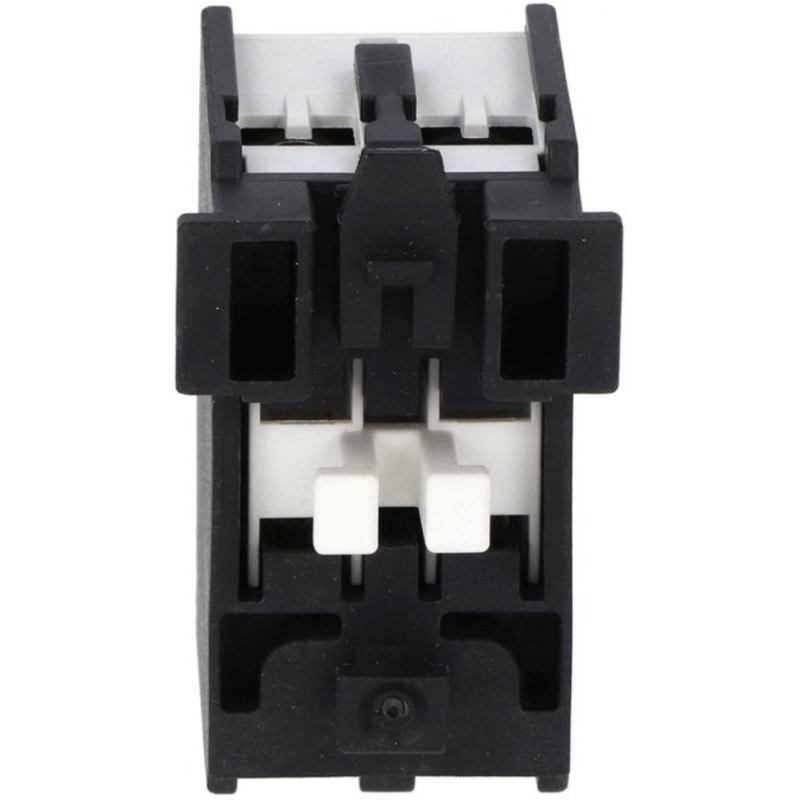

Lovato auxiliary contact for BF 2NA series contactors BFX1020

Lovato
Lovato
LOV BFX1020 8013975147450

Lovato auxiliary contact, with the following characteristics:



  • IEC/EN rated insulation voltage Ui: 690V
  • Rated impulse withstand voltage Uimp: kV 6
  • Poles: 2
  • Contact type: 2NO
  • Thermal current Ith: UN 10
  • Conductivity: 5V 10mA
  • Operating temperature: -50/+70°C
  • Storage temperature: -60/+80°C
  • Maximum altitude: m 3000
  • IEC Conventional free air thermal current Ith: UN 10
  • Operating position: normal vertical plane - permissible any
  • Fixing: front center mounting
  • Screw terminals



Suitable for BF series contactors.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato auxiliary contact for BF 2NA series contactors BFX1020
€8.53
€8.53

€8.53
Tax included
Calculate shipping cost
Items Available: 19
Further availability of the manufacturer
€8.53

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

There are no reviews

Data sheet

Type:
Auxiliary Contacts
Poles:
2P
