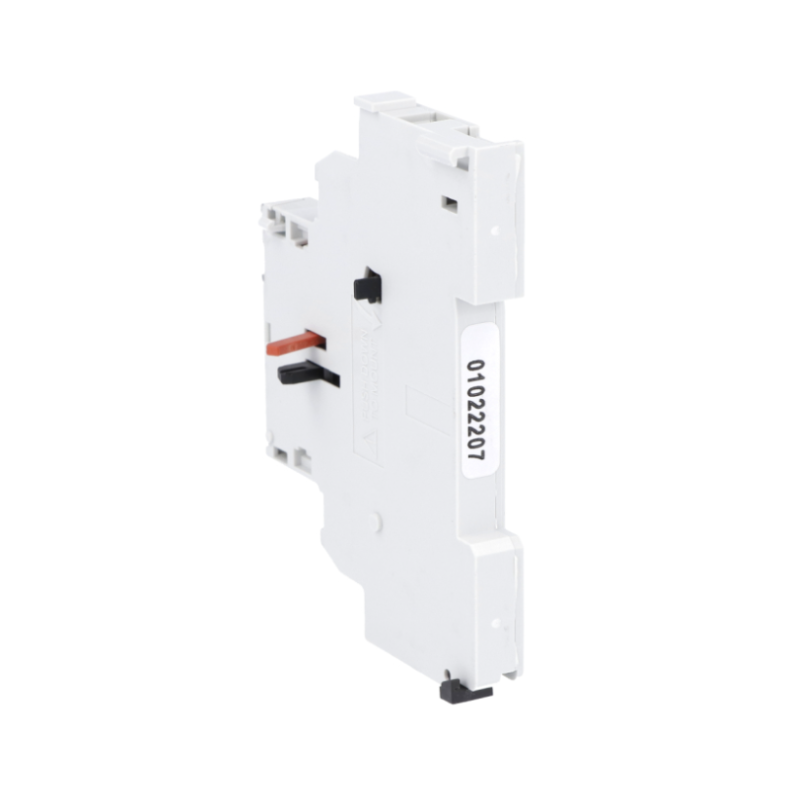

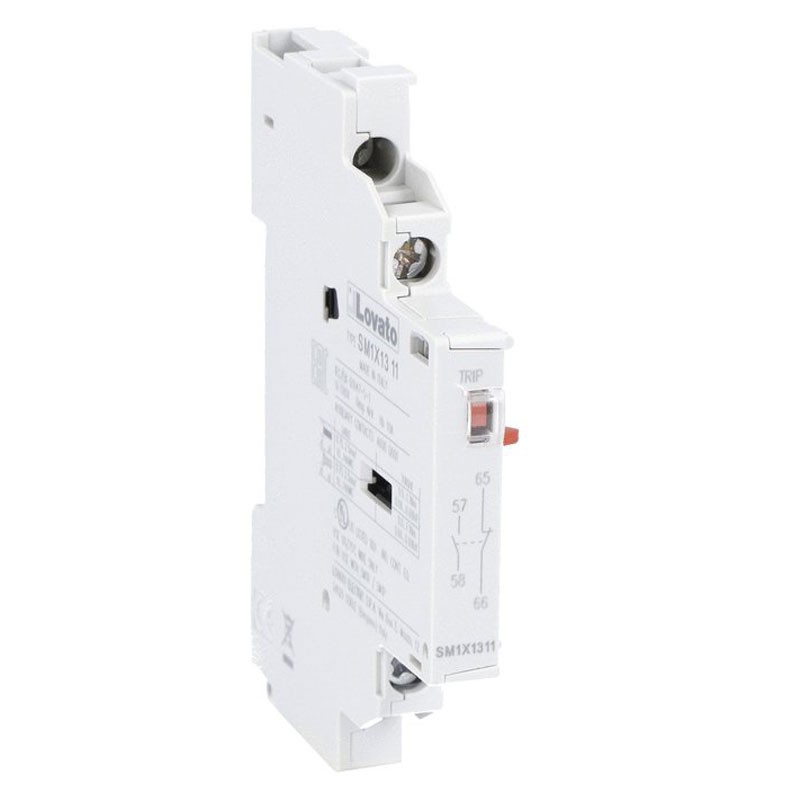

Lovato side mount auxiliary contact 1NA+1NC SM1X1311
LOV SM1X1311
8013975221952
Lovato additional auxiliary contact with the following features:
- Useful for thermal and magnetic trip signaling
- For SM1P..., SM1R... series.
- Contact type: 1NO + 1NC
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: kV 4
- UL/CSA and IEC/EN 60947-5-1 designation : A600 - Q600
- Minimum conductivity: 5V 10mA
- Operating position: normal Vertical - permissible Any
- Weight: 36 grams
- Mechanical life: 100000 cycles
- Operating temperature: -20/+60°C
- Storage temperature: -50/+80°C
- Maximum altitude: m 3000
- IEC degree of protection IP20
€16.58
Items Available: 8
: 2
There are no reviews
Data sheet
- Type: Auxiliary Contacts
- Degree of protection: IP20
