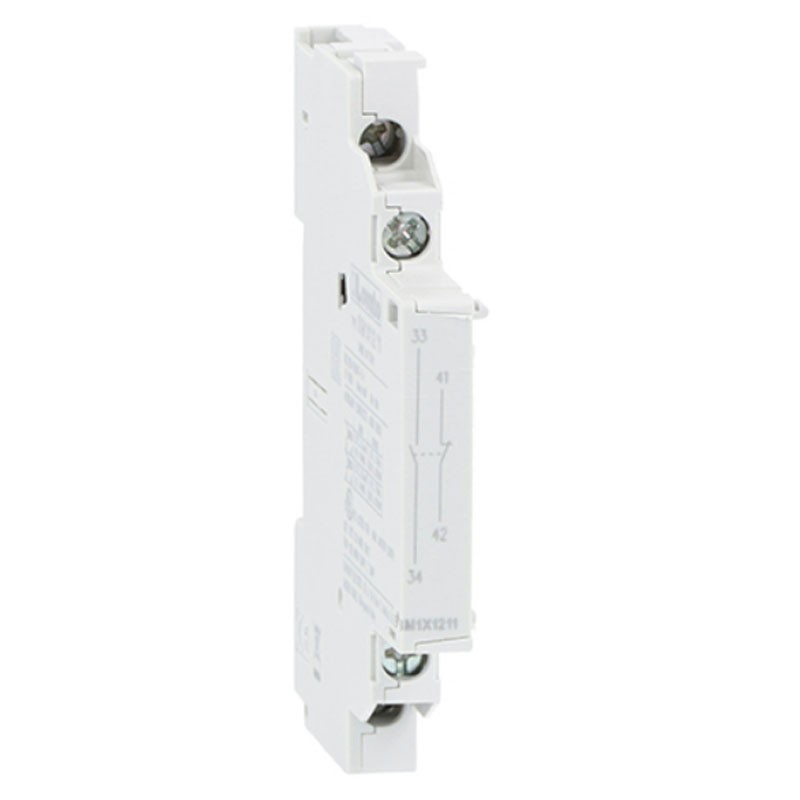

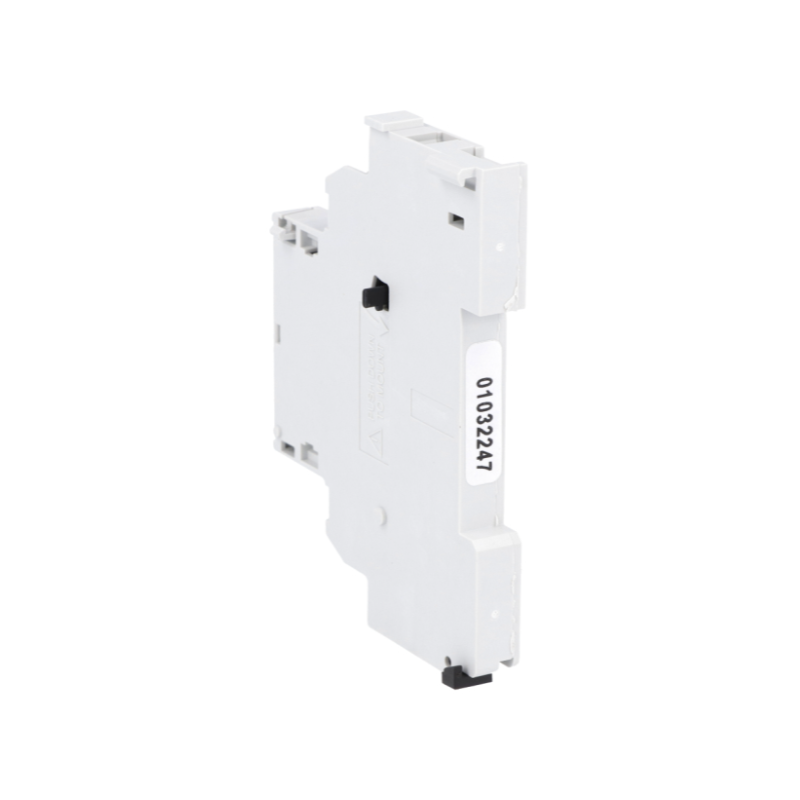

Lovato side mount auxiliary contact 1NA+1NC SM1X1211
LOV SM1X1211
8013975221945
Lovato additional auxiliary contact, with the following characteristics:
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: kV 4
- UL/CSA and IEC/EN 60947-5-1 designation : A600 - Q600
- Minimum conductivity: 5V 10mA
- Connection/mounting: side
- Contacts: 1NO+1NC
- Operating position: normal vertical - permissible any
Suitable for SM1P..., SM1R... series.
€8.37
Items Available: 61
: 18
Other technical features:
- Lovato Series
- Weight: 36 grams
- Maximum altitude: 3000 m
- IEC degree of protection: IP20
- Torque: min NM1 - max NM 1, min Ibin 9 - max Ibin 9
- Terminals: screw gender, screw M3.5, width 7.2mm, tool Ph2
- Operating temperature: -20/+60°C
- Storage temperature: -50/+80°C
- Mechanical life: 100000 cycles
Data sheet
- Type: Auxiliary Contacts
- Degree of protection: IP20
