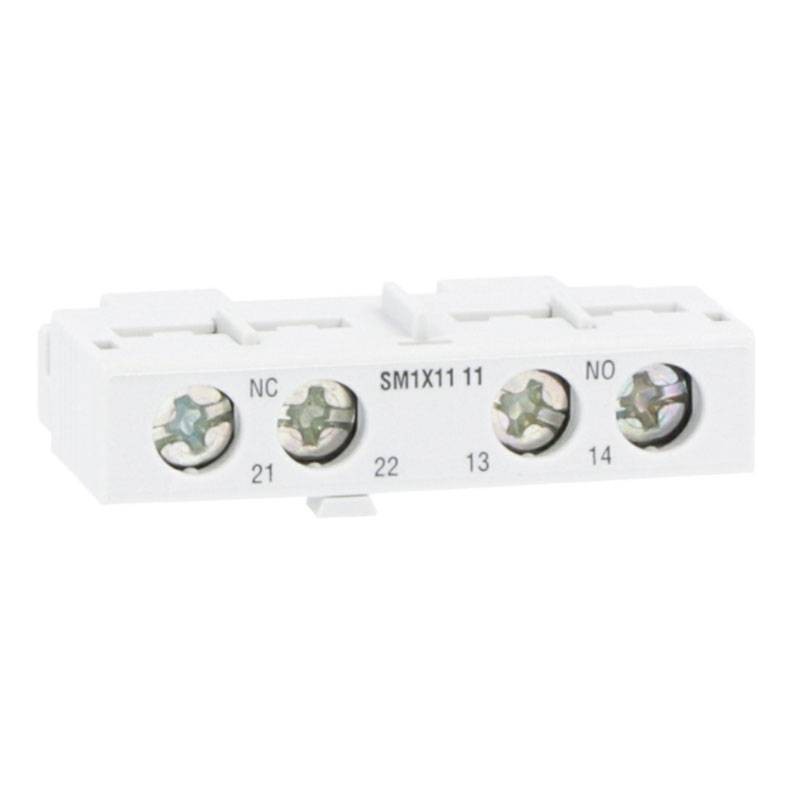

Lovato auxiliary contact front-mounted 1NA+1NC SM1X1111

Lovato
Lovato
LOV SM1X1111 8013975216583

Lovato additional auxiliary contact, with the following characteristics:

  • Contact type: front connection 1NO + 1NC
  • IEC/EN rated insulation voltage Ui: 300V
  • Rated impulse withstand voltage Uimp: kV 4
  • UL/CSA and IEC/EN 60947-5-1 designation: C300 - R300
  • Minimum conductivity: 5V 10mA
  • Operating position: normal vertical - permissible any
  • Weight: 16 grams
  • Operating temperature: -20/+60°C
  • Storage temperature: -50/+80°C
  • Maximum altitude: 3000m
  • IEC degree of protection: IP20
  • Suitable for SM1P... - SM1R...
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato auxiliary contact front-mounted 1NA+1NC SM1X1111
€8.37
€8.37

€8.37
Tax included
Calculate shipping cost
Items Available: 107
Further availability of the manufacturer
€8.37

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Tightening torque for terminals:

  • min Nm 1
  • max Nm 1
  • min lbin 9
  • max lbin 9

Terminals:

  • Gender: screw
  • M3.5 screw
  • Width mm 7.2
  • Ph2 tool

There are no reviews

Data sheet

Type:
Auxiliary Contacts
Degree of protection:
IP20
