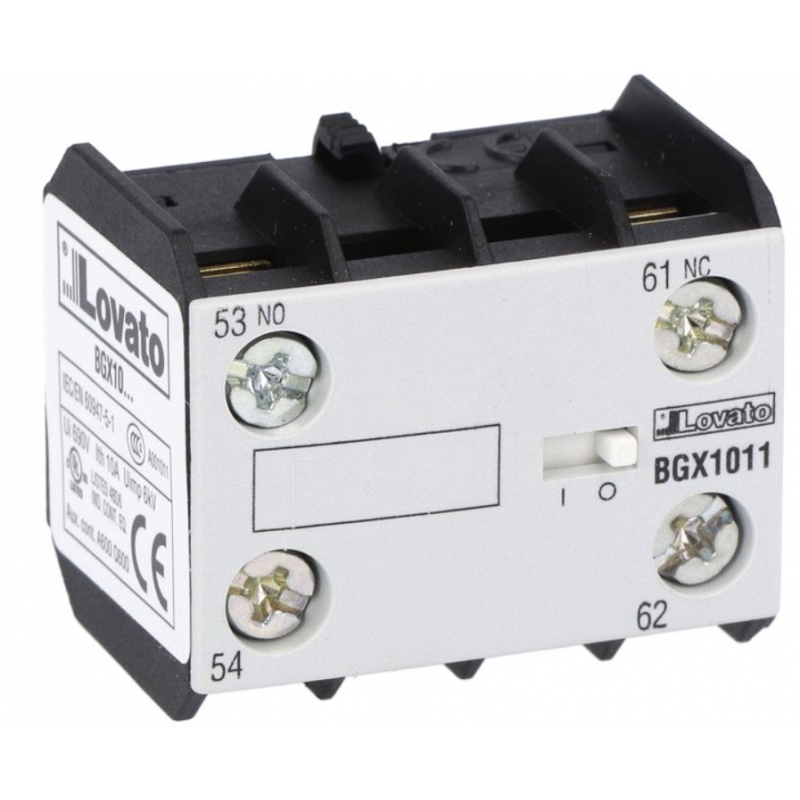

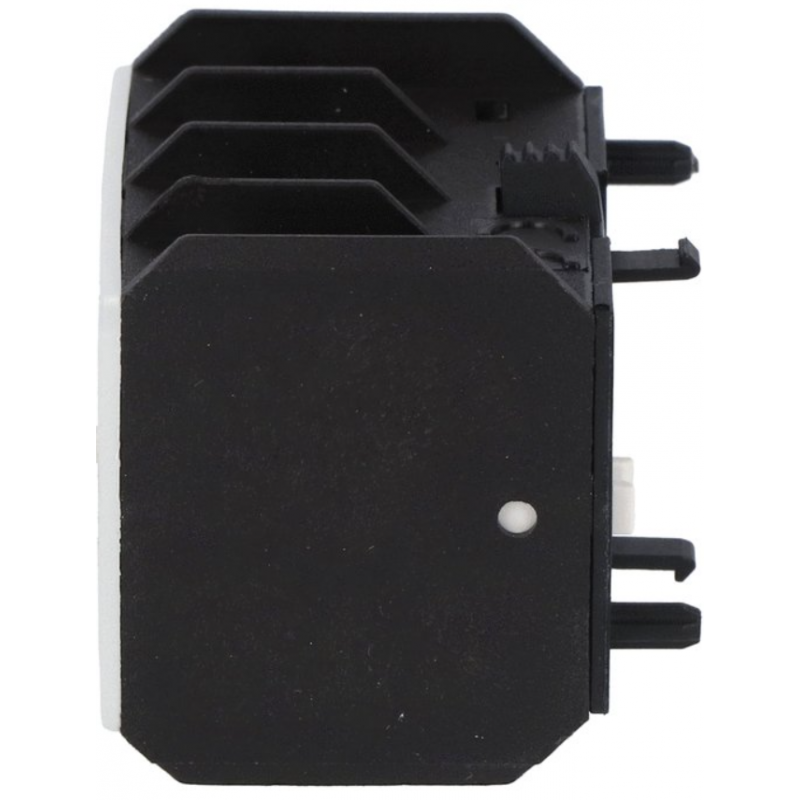

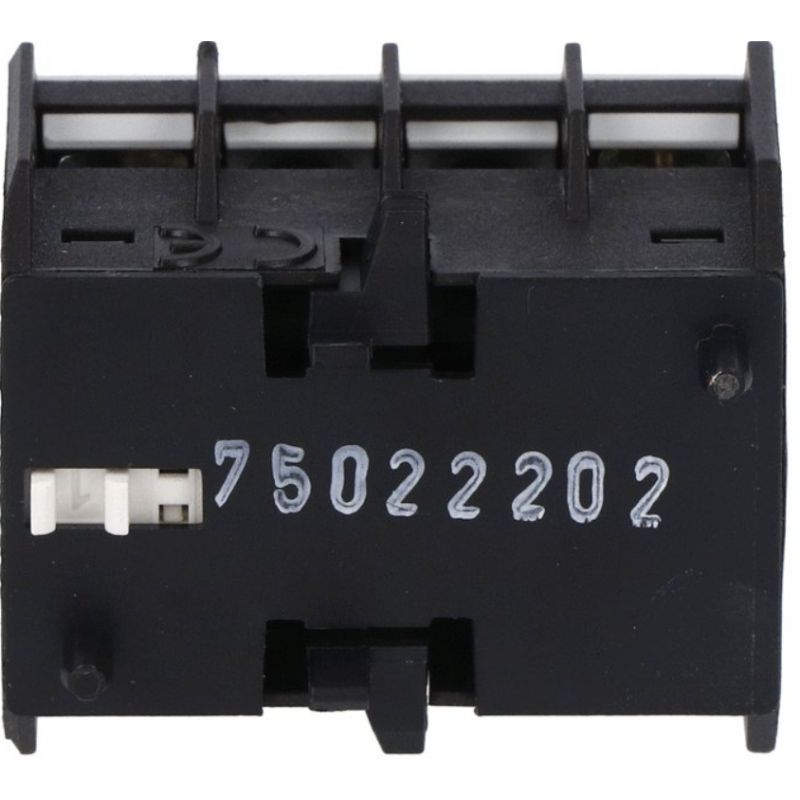

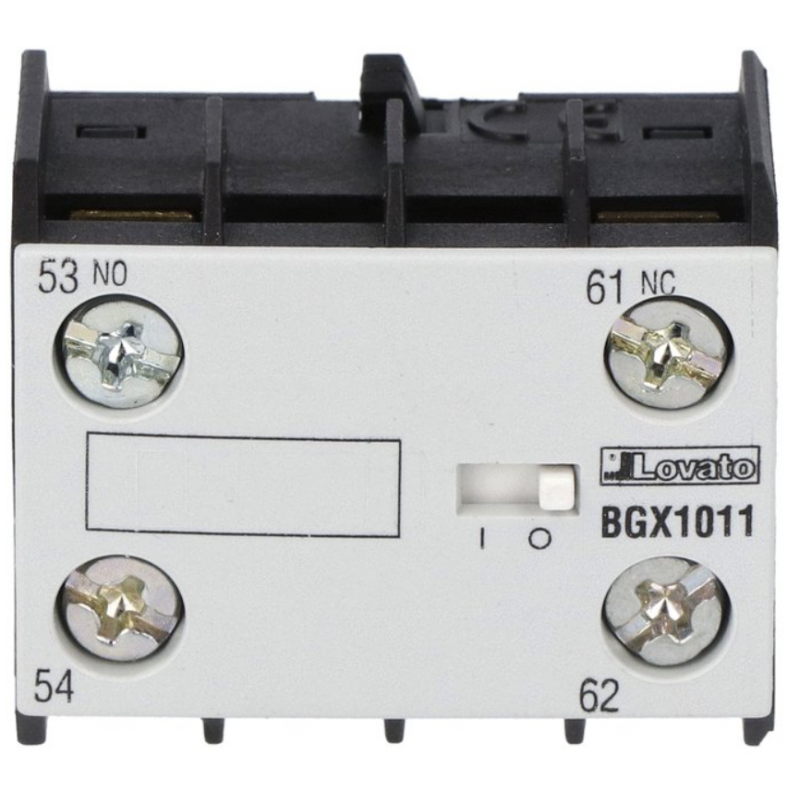

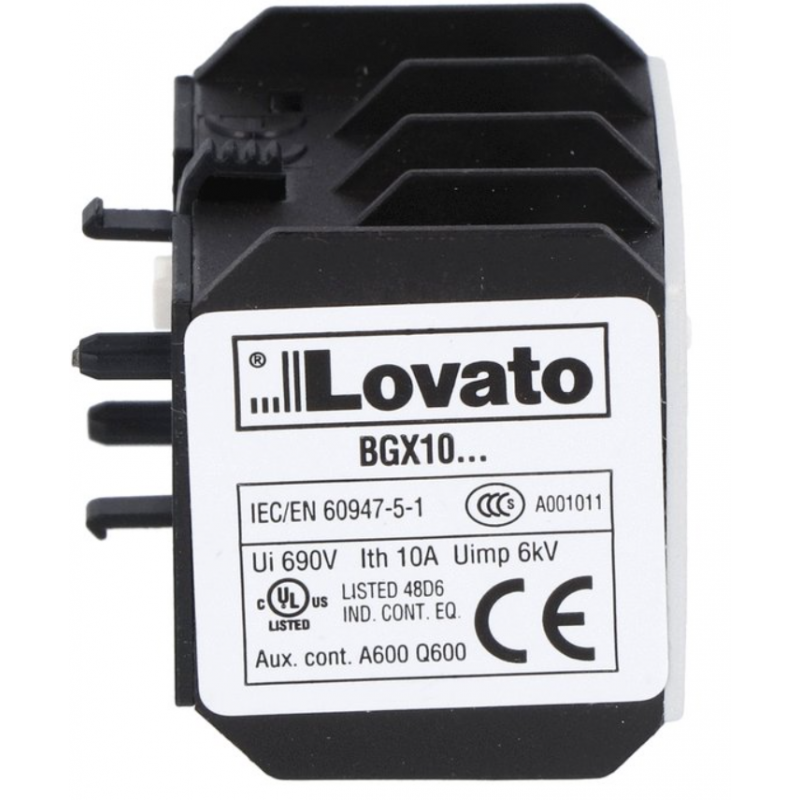

Lovato auxiliary contact for mini contactor 1NA+1NC 11BGX1011

Lovato
Lovato
LOV 11BGX1011 8013975080467

Lovato auxiliary contact for BG series mini-contactors, with the following characteristics:

  • IEC/EN rated insulation voltage Ui: IN 690
  • Rated impulse withstand voltage Uimp: kV 6
  • IEC Conventional free air thermal current Ith: UN 10
  • Maximum number of wires that can be connected simultaneously: 2
  • Number of poles: 2
  • Operating position: normal in the vertical plane - permissible any
  • Fixing: front center mounting
  • Weight: 21 grams
  • Screw terminals
  • Contact type: 1NO+1NC
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato auxiliary contact for mini contactor 1NA+1NC 11BGX1011
€9.37
€9.37

€9.37
Tax included
Calculate shipping cost
Items Available: 25
Further availability of the manufacturer
€9.37

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical characteristics:

  • Ith thermal current: UN 10
  • IEC / EN 60947-5-1 designation: A600 - Q600
  • Conductivity: 5V 10mA
  • UL/CSA and IEC/EN 60947-5-1 designation: A600 Q600
  • Operating temperature: -50/+70°C
  • Storage temperature: -60/+80°C
  • Maximum altitude: m 3000

Tightening torque for terminals:

  • min Nm 0.8 - max Nm 1
  • min Ibin 7 - max Ibin 9

There are no reviews

Data sheet

Type:
Auxiliary Contacts
Voltage:
690V
Poles:
2P
Amps:
10A
