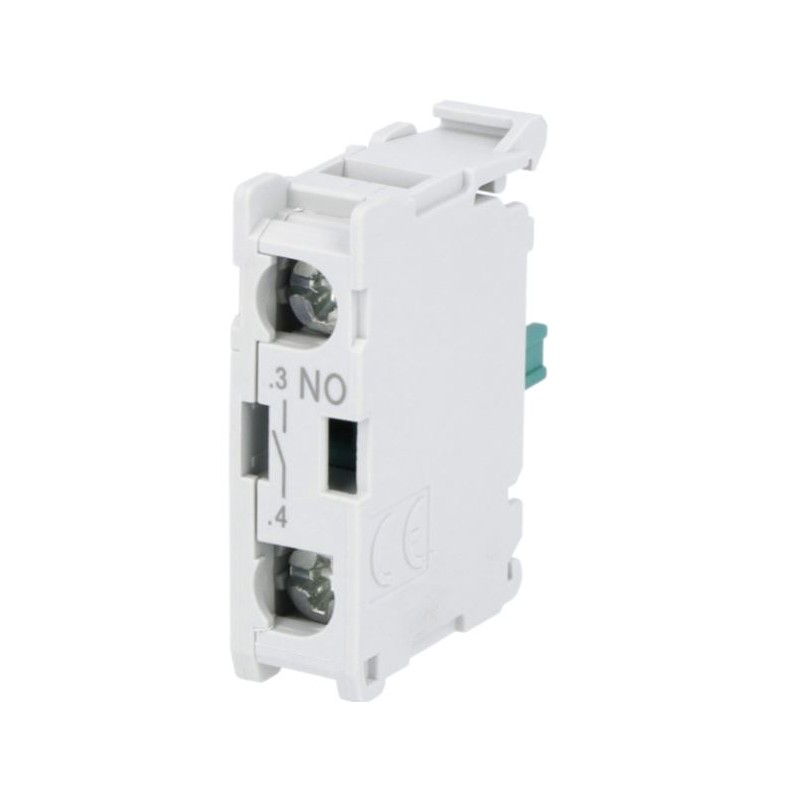

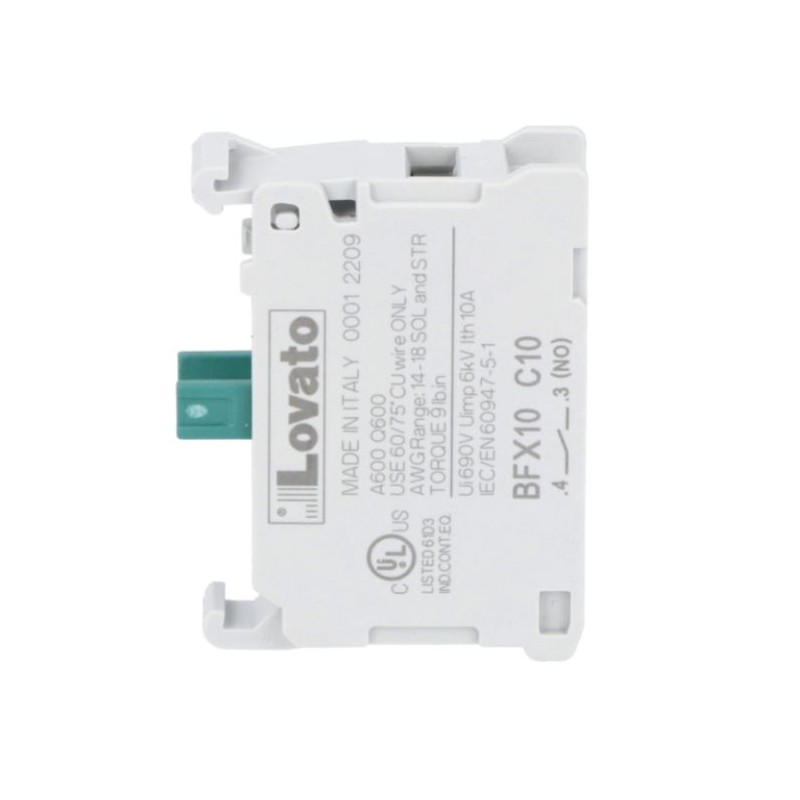

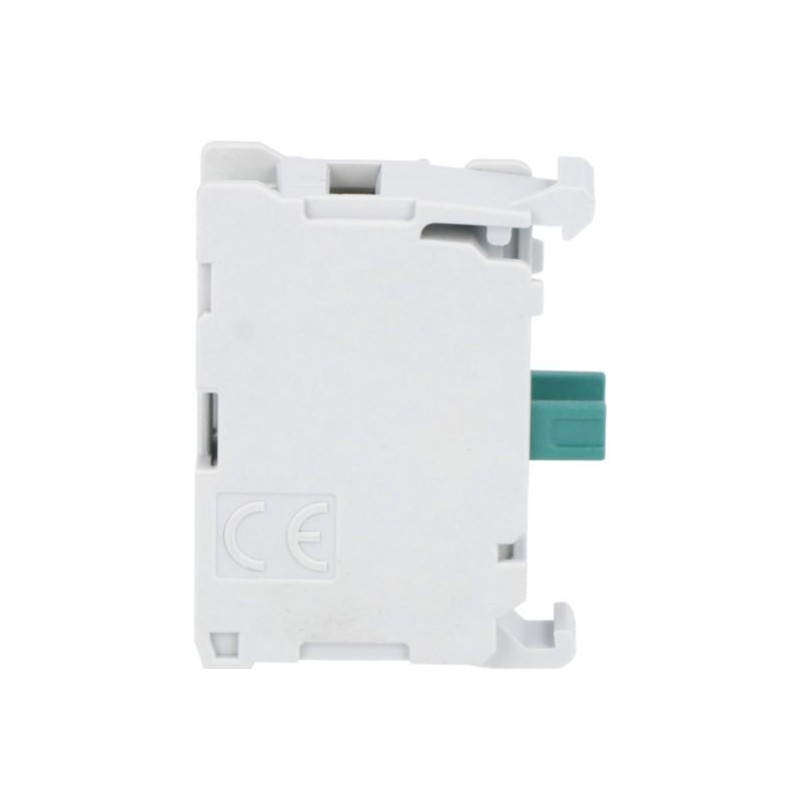

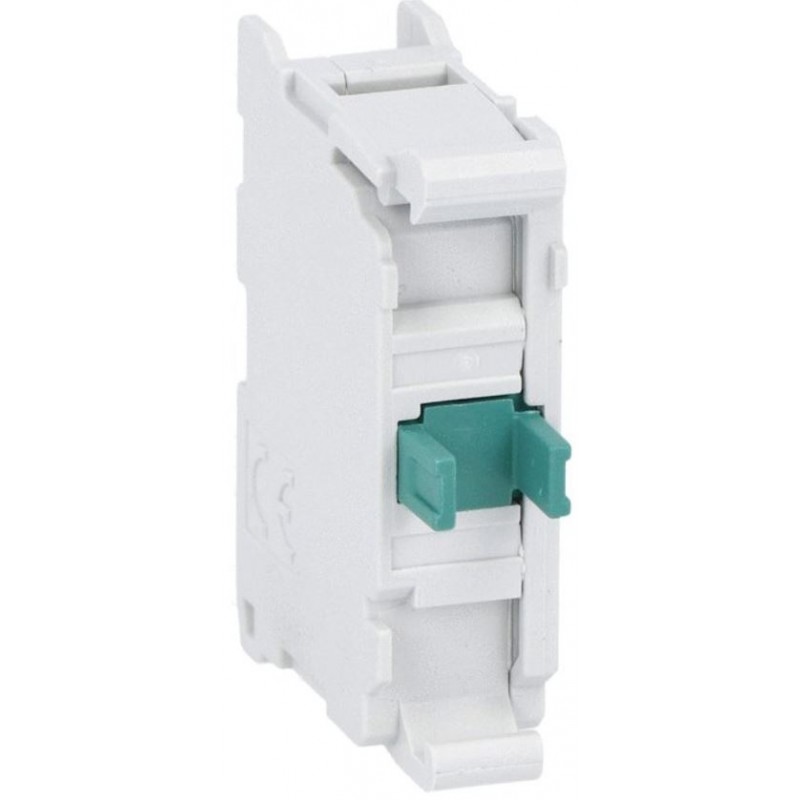

Lovato auxiliary contact for B series contactors 11G350
LOV BFX10C10
8013975300848
Lovato front-mounted auxiliary contact 1NA for B... series contactors (BF160...BF400), with the following characteristics
- Number of poles: 1
- Rated insulation voltage IEC/EN V 690
- Rated impulse withstand voltage (Uimp): kV 6
- Conventional free air thermal current Ith IEC: 10 amperes
- Max. number of conductors that can be installed simultaneously: 2
- Mounting position: Normal - On vertical plane, Permitted Any
- Fixing: Front mounting
- Connections: Screw
- Contact type 1NA
€8.05
Items Available: 39
: 12
Other technical characteristics:
- Conventional thermal current Ith: 10 amperes
- Designation according to IEC/EN 60947-5-1: A600 - Q600
- Conductor cross-section AWG/kcmil: max14 - IEC Max mm² 1 or 2 x 2.5
- Electrical life 1000000 hours
- Conductivity: 5V 10 mA
- Designation according to UL/CSA and IEC/EN 60947-5-1: A600 Q600
- Contact resistance: mΩ ≤20
- Operating temperature: °C -50/+°C 70
- Storage temperature :°C -60/+°C 80
- Maximum altitude: m 3000
There are no reviews
Data sheet
- Type: Auxiliary Contacts
