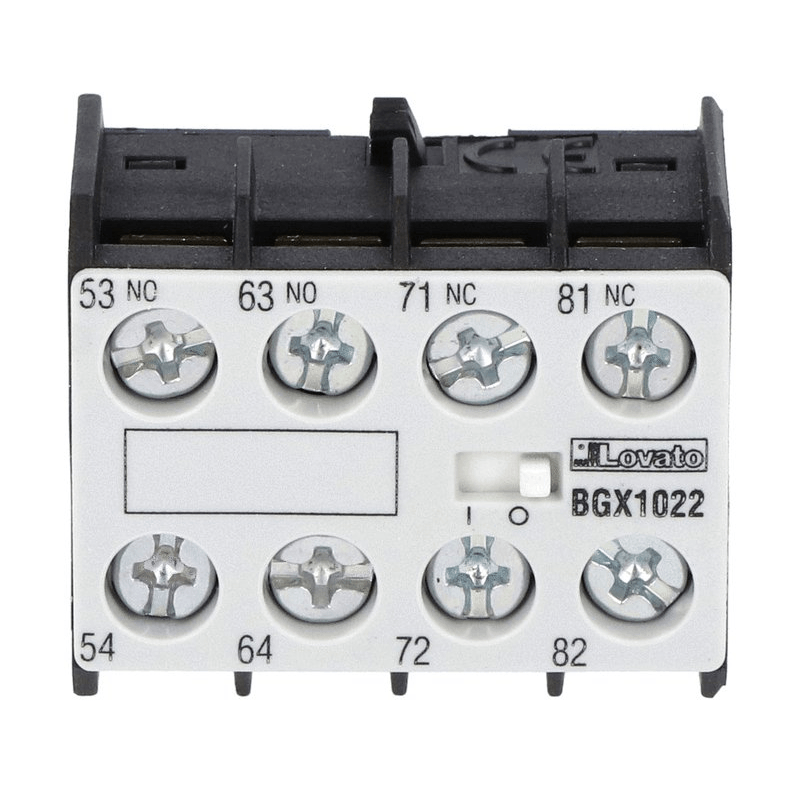

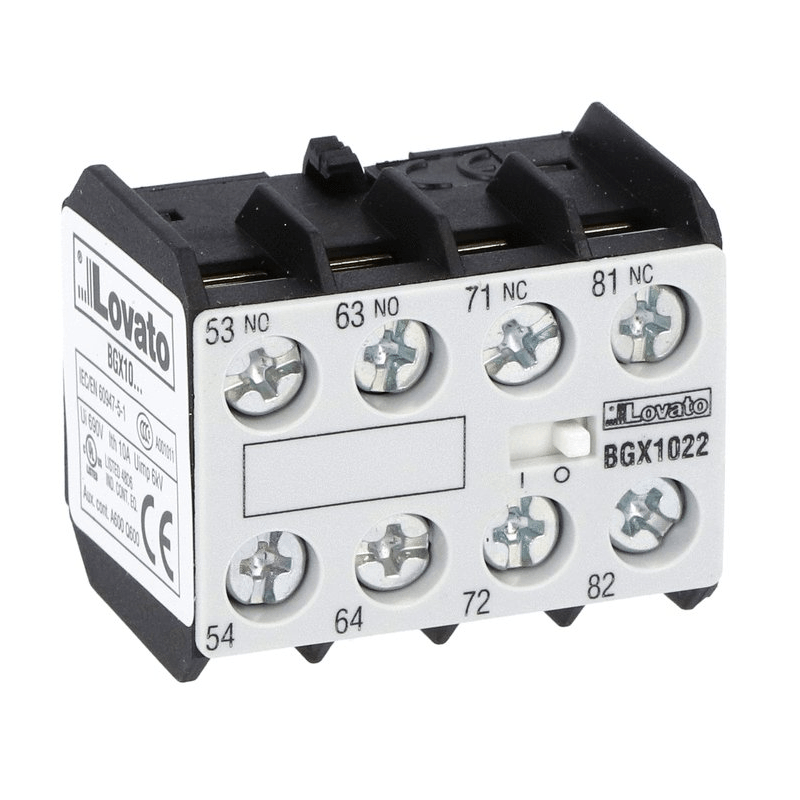

Lovato 2NA+2NC auxiliary contact for BF series contactors 11BGX1022
LOV 11BGX1022
8013975080474
Lovato auxiliary contact, with the following characteristics:
- Number of poles: 4
- IEC/EN rated insulation voltage Ui: 690V
- Rated impulse withstand voltage Uimp: kV 6
- IEC Conventional free air thermal current Ith: UN 10
- Tightening torque for coil terminal: Min lbin 9- max lbin 9
- Maximum number of wires that can be connected simultaneously: 2
- Contact type: 2NO + 2NC
- Thermal current Ith: UN 10
Lovato 2NA+2NC auxiliary contact for BF series contactors 11BGX1022
€15.86
€15.86
Tax included
Tax included
Pay in installments with Klarna
Items Available: 31
Other Specifications:
- IEC/EN 60947-5-1 designation: A600 - Q600
- Operating position: normal in the vertical plane - permissible any
- Fixing: front center mounting
- Weight: 28 grams
- Screw terminals
- Conductor cross-section: conductor cross-section AWG/kcmil max 12, IEC max mm² 1 or 2 x 2.5
- Conductivity: 5V 10mA
- UL/CSA and IEC/EN 60947-5-1 designation: A600 Q600
- Operating temperature: -50/+70C
- Storage temperature: -60/+80C
- Maximum altitude: m 3000
There are no reviews
Data sheet
- Type:
- Auxiliary Contacts
- Voltage:
- 690V
- Poles:
- 4P
