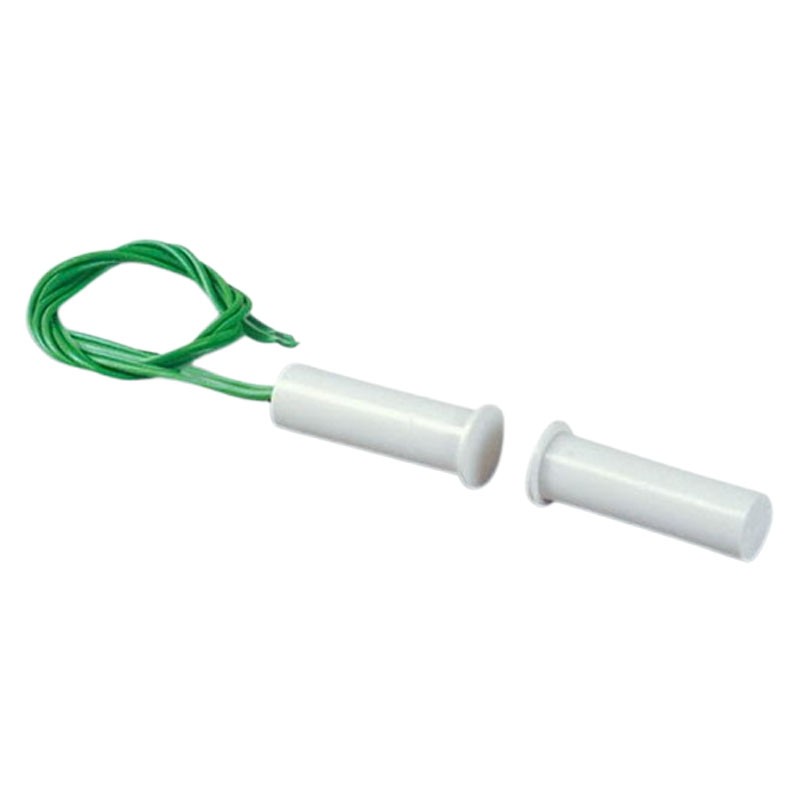

Hiltron magnetic contact recessed 4-wire NC output C204
C1A C204
8056450410441
Hiltron 4-wire recessed magnetic contact for doors and windows, NC output, with the following features:
-
Alarm output type: NC (normally closed)
-
Output terminals: 4 wires
-
Housing material: ABS
-
Color: White
-
Maximum voltage: 30 V
-
Maximum current: 500 mA
-
Maximum operating distance: 8 mm
-
Installation: Recessed on doors and windows
-
Cable length: 25 cm
-
Diameter: 8 mm
-
Depth: 27 mm
€2.48
Items Available: 582
: 86
Invisible security for intrusion detection systems
The Hiltron C204 magnetic contact is designed for alarm and intrusion detection systems, ideal for installation on doors and windows. The recessed format ensures a discreet and professional presence, perfect for installations in residential or commercial environments.
Simple 4-wire connection
Equipped with a 4-wire output, the device offers greater versatility in connections, allowing quick integrations with alarm control panels or home automation systems. The contact provides a normally closed (NC) output, activating when the window or door is opened.
Compact, durable, reliable
Made of white ABS, with a diameter of 8 mm and depth of 27 mm, the C204 contact is easy to install in small holes. The maximum operating distance is 8 mm, ensuring stable and accurate detection.
Guaranteed performance in all conditions
The sensor is designed to operate in a temperature range of -5°C to +40°C, ensuring stability and durability over time, even in environments subject to temperature changes. Compliant with CEI 79-2 - 1st level, it can be perfectly integrated into professional installations.
Data sheet
- Type: Contacts
- System: With Wires
- Installation: Doors and Windows
