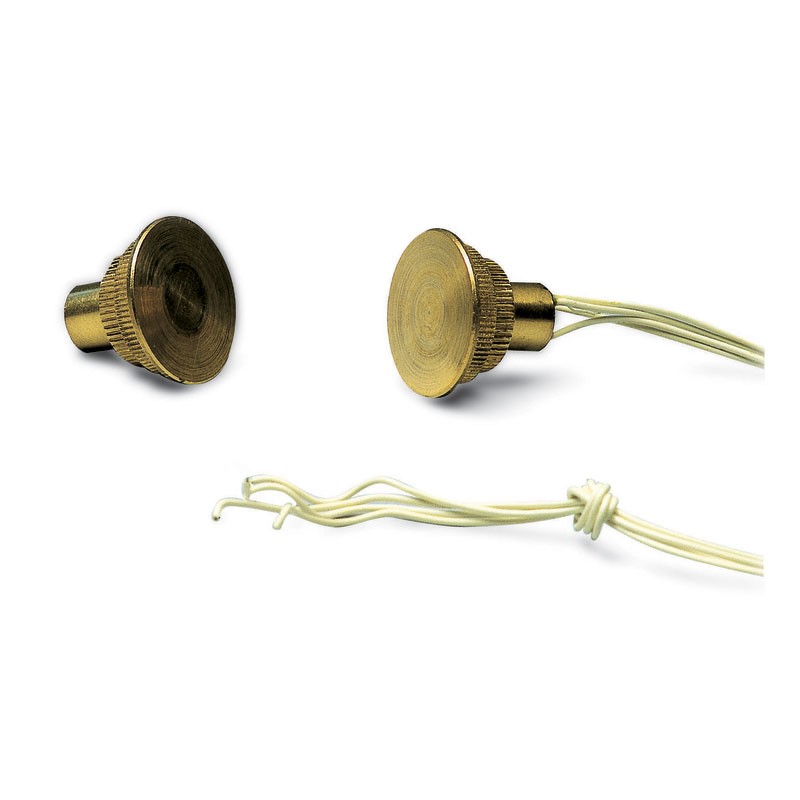

Urmet recessed magnetic contact for armored doors hole 20 mm 1033/704
UTD 1033/704
8021156021628
Urmet recessed magnetic contact for armored doors, designed to provide maximum security on armored doors, concealed mounting, with the following features:
-
Mounting: Recessed with Ø 20 mm hole
-
4 wires: 2 for signaling and 2 for anti-sabotage circuit
-
Body: White thermoplastic
-
Contacts: High-strength nickel-plated phosphor bronze
-
Length: 18 mm
€21.05
Items Available: 18
Urmet magnetic contact for security doors
Urmet's recessed magnetic contact is designed for high-security applications, where discreet but highly reliable installation is essential. Its compact design and flush mounting make it ideal for armored doors, providing protection without altering the aesthetics of the doorframe.
Anti-sabotage technology with 4 wires
This device has four wires, two of which are dedicated to the anti-sabotage function, preventing attempts to manipulate the system. Integration with advanced anti-theft systems ensures immediate warning in case of unauthorized opening or tampering.
High-quality materials and durability
Made of white thermoplastic material and equipped with nickel-plated phosphor bronze springs, this magnetic contact offers excellent resistance to wear, deformation, and external agents. Designed for professional installations that require long-term reliability.
Easy recessed installation
With a 20 mm mounting hole and a total length of 18 mm, this contact installs quickly with standard drilling, resulting in perfect integration into the door frame. It is compatible with most armored structures on the market.
Recommended applications
-
Burglar alarm systems for homes and offices
-
Professional installations on armored doors
-
Alarm systems for critical entrances
-
Systems with advanced anti-sabotage protection
Technical Specifications Urmet Magnetic Contact
| Parameter | Value |
|---|---|
| Mounting type | Flush-mounted |
| Mounting hole | Ø 20 mm |
| Length | 18 mm |
| Number of wires | 4 (2 signal + 2 anti-sabotage) |
| Body material | White thermoplastic |
| Spring material | Nickel-plated phosphor bronze |
| Application | Armored doors, perimeter security |
Data sheet
- Type: Contacts
- Installation: Security doors
