Bticino magnetic contact for wired/radio burglar alarm 3513
BTI 3513
8012199112770

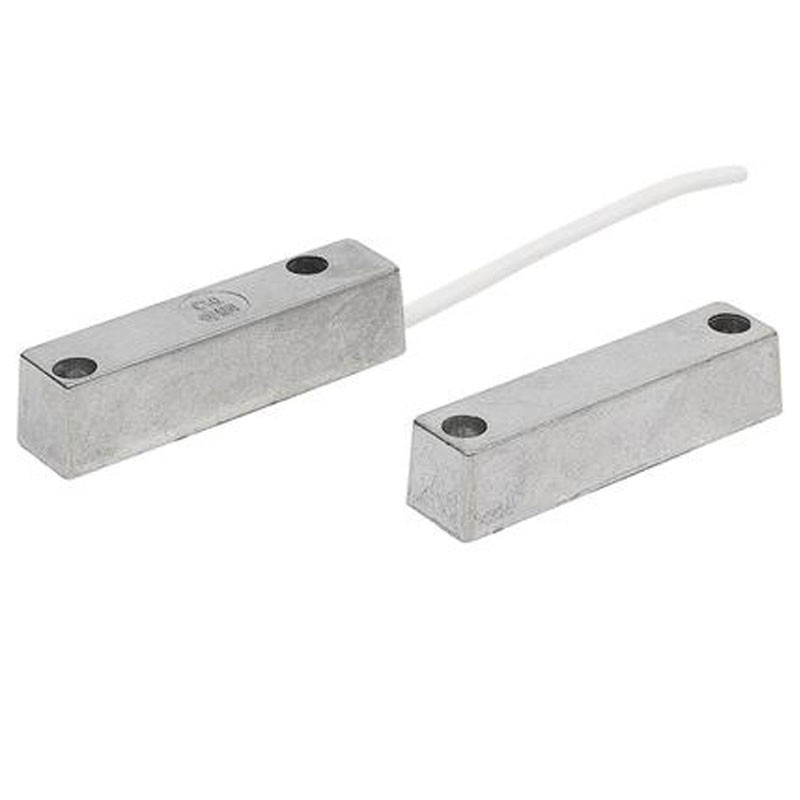

Bticino magnetic sensor with NC contact and protection line. Execution in metal container for visible installation. Can also be used with the new wired-radio burglar alarm.
€17.72
Items Available: 28
: 26
The magnetic sensors are generally installed in the upper part of the windows, in a position opposite the hinges, so that, with small openings caused by forcing, you already reach a distance of the two components (magnet and reed contact) sufficient to cause an alarm. The electromagnetic sensors that make up the offer are contact type NC and protection line. They are used in sheet metal doors such as those in basements, warehouses and iron frames. The sensors do not require configuration.
Dimensions:
- Height 18 mm
- Width 78 mm
- Depth 17 mm
There are no reviews
Data sheet
- Type: Contacts
- System: With Wires
- Installation: Doors and Windows
