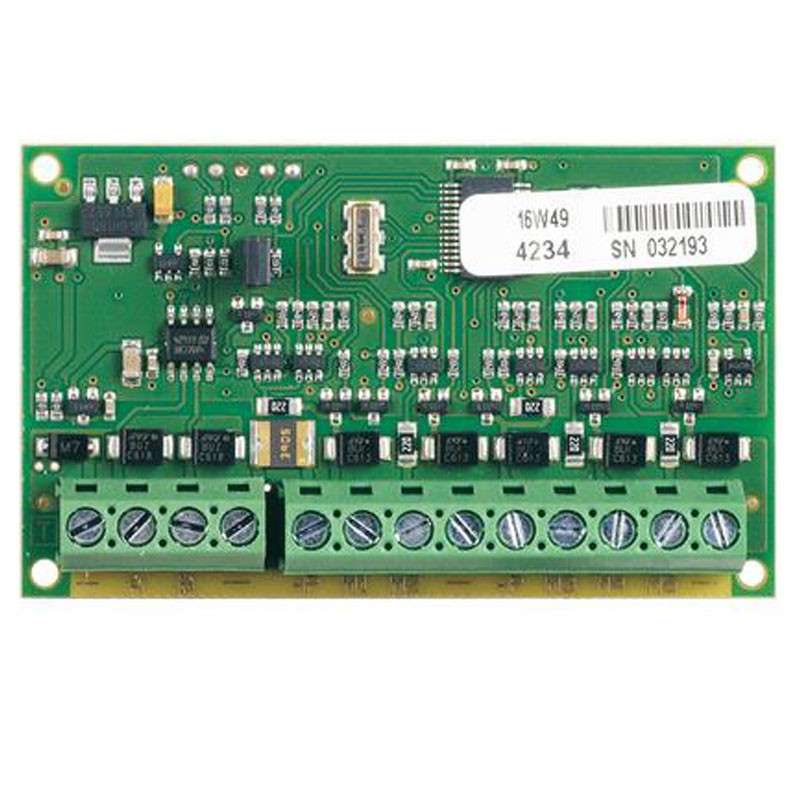

Bticino expansion module up to 5 inputs outputs 4234
BTI 4234
8005543590973
Bticino expansion module, with the following characteristics:
- Voltage: 9.6-14.5 Vdc
- Absorption 20 mA max
- Maximum deliverable current 500mA
- Overall dimensions: 45 x 75 x 20 mm (H x W x D)
- Certification: 4234: EN 50131
- Grade 3
- Environmental Class II
€67.38
Items Available: 10
: 1
Frequently bought together
The expansion modules allow you to expand the BTicino security system up to 128 zones (depending on the type of control unit installed) allowing you to meet all the plant requirements in the field of residential. The small size of the modules allow their installation in junction boxes so that they can be placed near the sensors or contacts connected to them or using the special plastic container 4237 (not supplied), in addition to having a greater protection of the electronic board, you can install on DIN rail.
The4234 module has 5 configurable terminals; all terminals are arranged as Open Collector inputs/outputs; the M1 terminal can be configured as 0 - 10Vdc analog input, the M5 terminal as 0 - 10Vdc output.
Programmable inputs/outputs:
- 5 input/output outputs 500mA; 12Vdc
- M1 programmable as input 0 - 10V
- M5 programmable as output 0 - 10V; 20mA Outputs +P terminals
There are no reviews
Data sheet
- Type: Expansion Cards
