Bticino connected wired burglar alarm kit with 16 zones KIT16ZC

Bticino
Bticino
BTI KIT16ZC 8005543706732

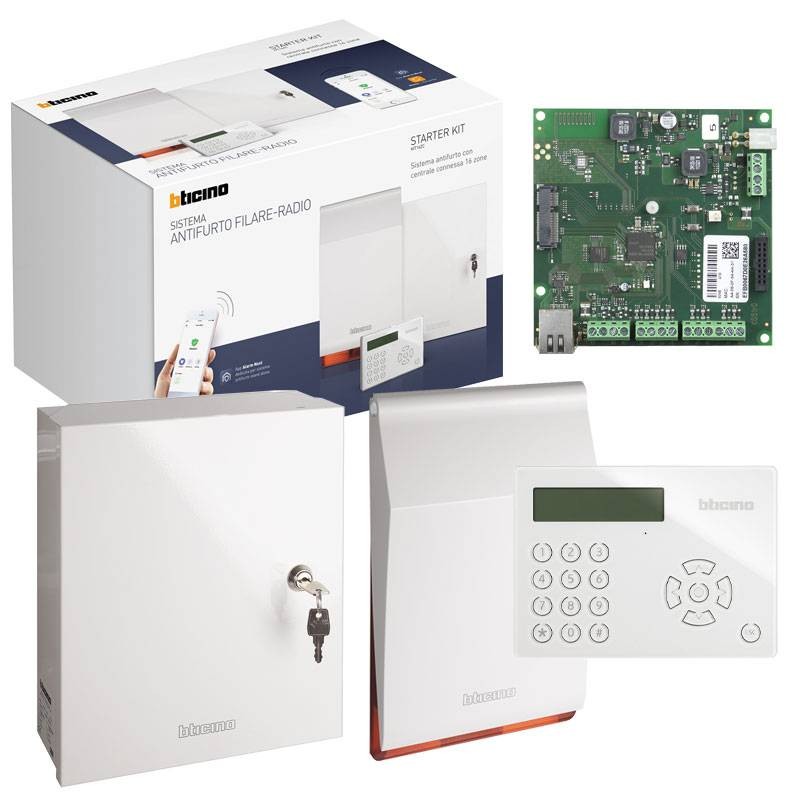

Bticino wired connected burglar alarm kit for 16 zone management consisting of:



  • No. 1 control unit board item 4200C
  • No. 1 enclosure item 4210
  • No. 1 multifunction keypad item 4215M
  • N°1 wired outdoor siren item 4217
Do you have questions about this product or did you not find what you were looking for? Ask us!
Bticino connected wired burglar alarm kit with 16 zones KIT16ZC
€467.71
€467.71

€467.71
Tax included
Calculate shipping cost
Items Available: 5
Further availability of the manufacturer
€467.71

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Component specifications:

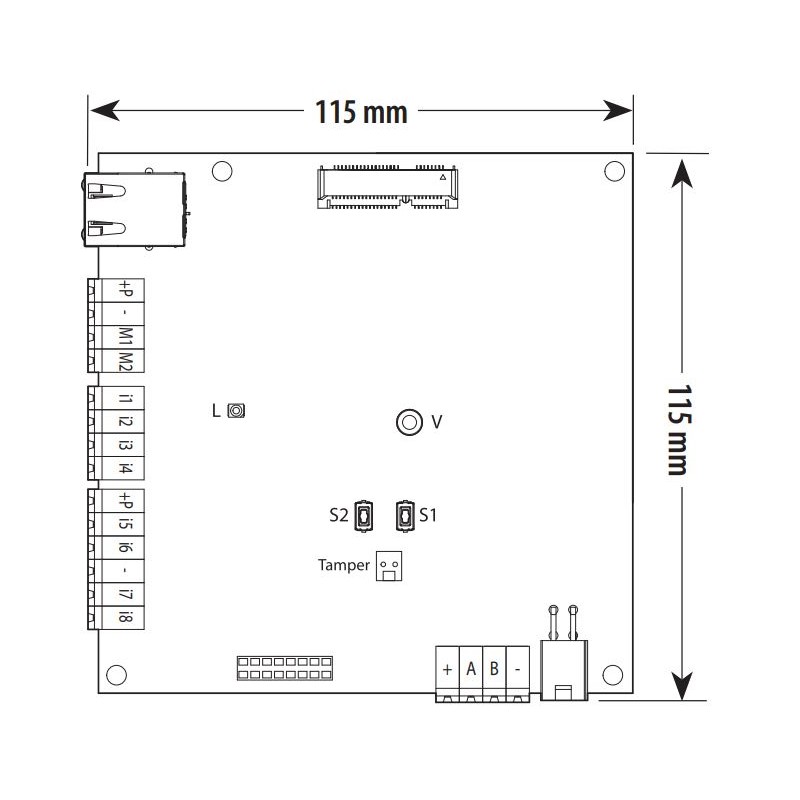

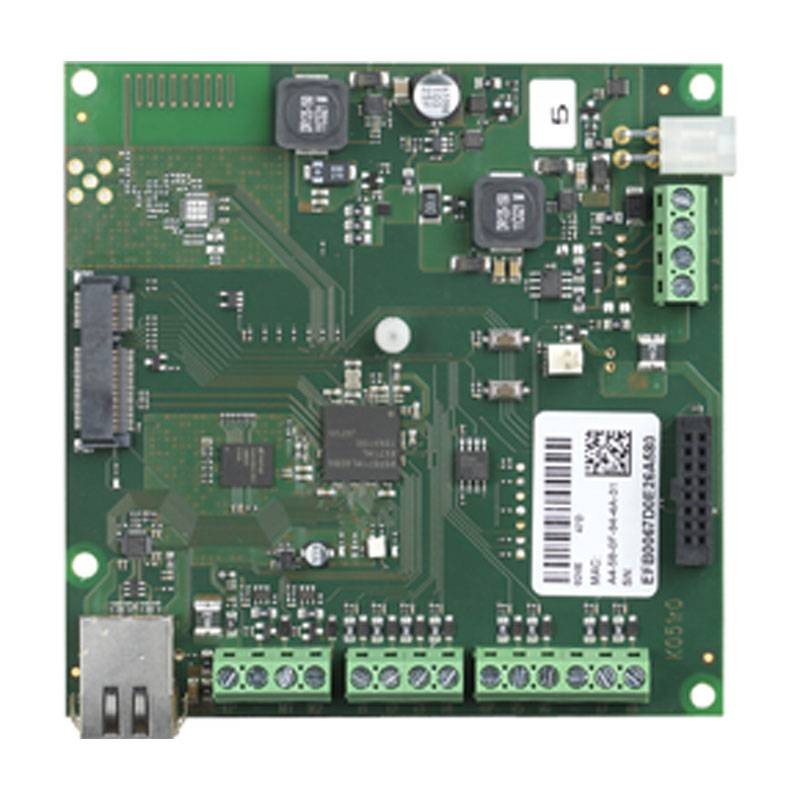

Central connected burglar alarm system for managing 16 zones 4200C:

  • Connected burglar alarm system control panel for managing up to 16 zones. It has 8 programmable inputs and 2 terminals that can be configured as inputs or outputs during configuration, expandable up to 16 and can be controlled by keypad art. 4215M, by dedicated Alarm Next App, by Home + Security App if integrated with Smart Home MyHOME systems or by DTMF tones.



Features:

  • EN 50131 Grade 3 Reference Standard
  • Voltage 9.6-13.8Vdc
  • Wired Burglar Alarm Series

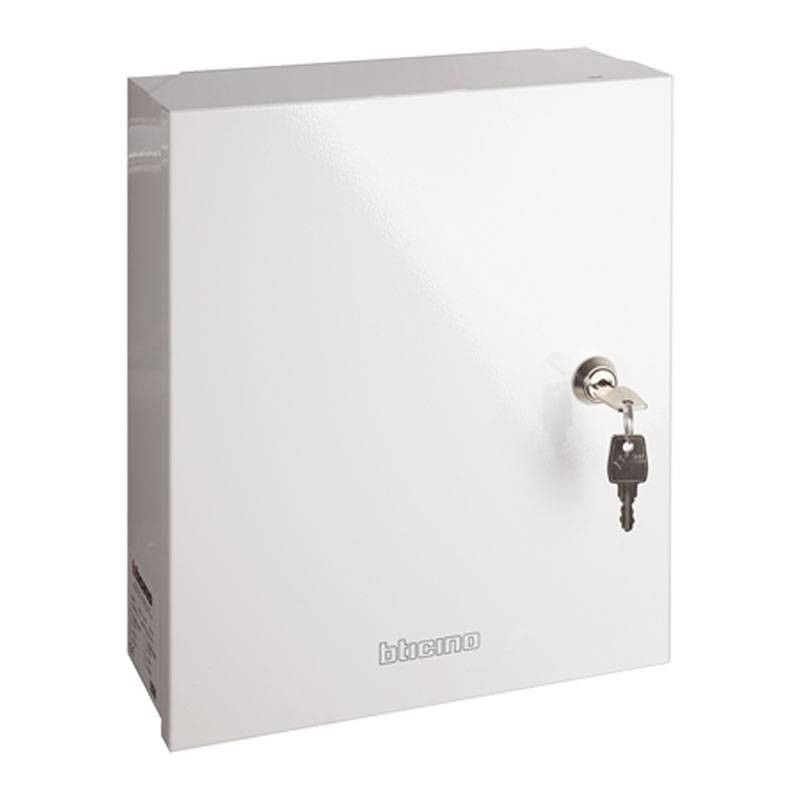

White metal enclosure 4210:

  • White metal container size 255x295x85 mm (WxHxD) with side opening and key lock, equipped with fuse holder and 2A fuse and 1.7A switching power supply already wired, ideal for control unit art. 4200C. To be completed with 12V 7.2Ah buffer battery, not included.



Features:

  • Voltage 110-240Vac
  • Current In 400mA
  • Height 295mm
  • Width 255mm
  • Depth 85mm

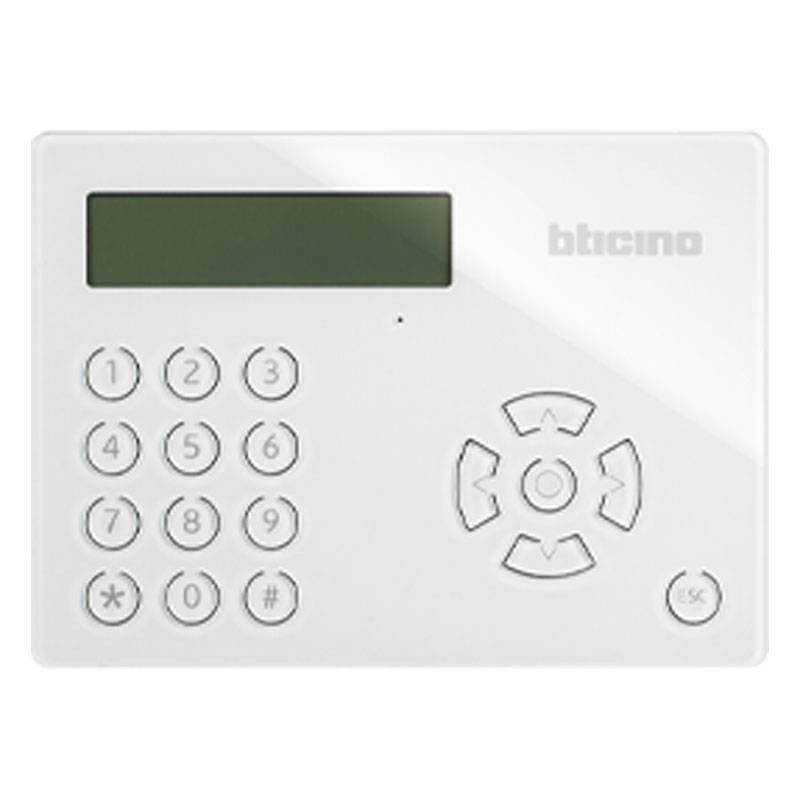

Multifunction keypad with LCD display for burglar alarm 4215M:

  • Multifunction keypad with LCD display, mechanical keys, proximity reader for transponder art. 34820.... Can be used for programming the parameters of the control unit. Mounting in box art. 503 and in round flush-mounting boxes with 60mm spacing. White color.



Features:

  • Voltage 13.8Vdc
  • Current In 15mA Stand-by 600VA-100mA
  • Degree of protection IP40
  • Height 119mm
  • Width 163mm
  • Depth 14.5mm

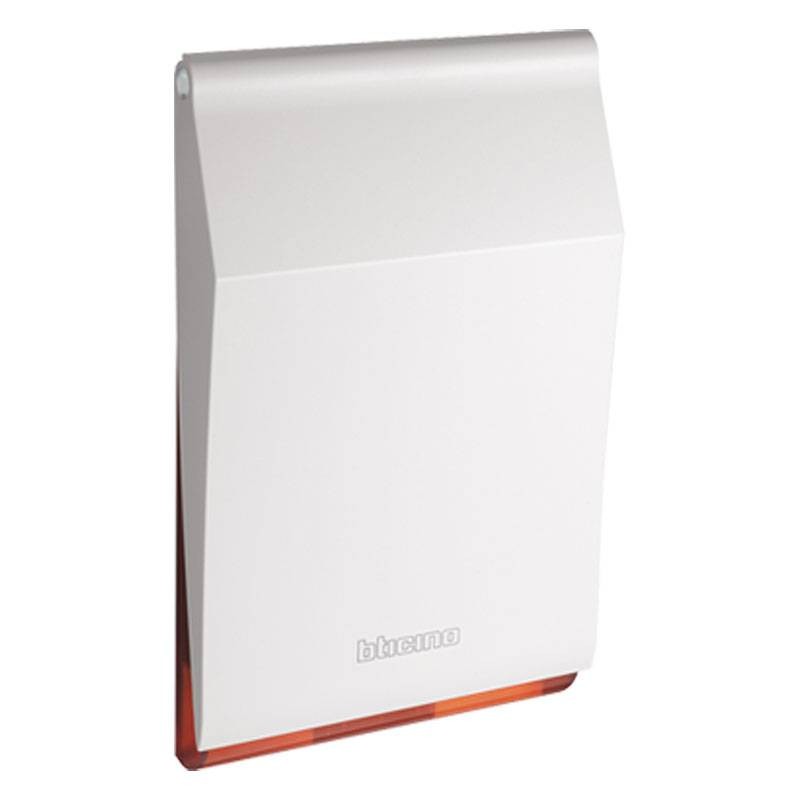

Outdoor siren for wired system self-powered 4217:

  • Outdoor siren for wired system - self-powered with low power consumption and complete with shatterproof metal protection. Buffer battery 6Vdc 1.2Ah not included



Features:

  • Voltage 9.6-14.5Vdc
  • Current In 15mA Stand-by 150mA
  • Degree of protection IP43
  • Height 330mm
  • Width 195mm
  • Depth 60mm

There are no reviews

Data sheet

KIT:
Burglar alarm kits
System:
With Wires
Installation:
Internal
