Ajax FireProtect Fire optical-acoustic signal device Sounder/VAD 118601
08T 118601
4823114068386
Ajax FireProtect Sounder/VAD EN54 Jeweller 118601, red colour, is a wireless fire alarm with a siren up to 100 dB and LED VAD frame: highly visible and audible alarm, configurable via app, ideal for professional sites.
-
Acoustic plus visual alarm: powerful buzzer and perimeter LED VAD frame
-
Volume up to 100 dB at 1 m and 32 tones selectable via app
-
Automatic sound synchronization between devices connected to the same CIE
-
Compliant flashing: 90 ms ON / 1910 ms OFF (0.5 Hz)
-
Autonomy up to 5 years with pre-installed batteries and quick tool-free replacement
-
Compatible with EN54 Fire Hub Jeweller and EN54 Fire ReX Jeweller fire control panels
€149.77
Items Available: 4
: 2
Frequently bought together
FireProtect Sounder/VAD Optical Acoustic Fire Alarm: clear signaling in every environment
The Ajax FireProtect Sounder/VAD EN54 Jeweller 118601 alarm is designed to make the fire alarm immediately noticeable even in challenging contexts: noisy premises, areas with machinery, or spaces where a siren alone might not suffice. The device combines a high-power acoustic alarm and a visual alarm device (VAD) with an LED frame, so the event is communicated both with sound and light, increasing the effectiveness of evacuation procedures.
100 dB Siren and 32 tones: compliance and customization for professional systems
The siren reaches up to 100 dB at 1 metre, a level designed to be audible even when the environment is not quiet. The ability to choose from 32 tones allows for selecting the most suitable signal for the site's needs and any local requirements. The configuration (including volume) can be done in the Ajax app by a PRO or a user with administrator rights, making commissioning quick and orderly.
LED Frame VAD: regulatory flashing and immediate visibility
The perimeter LED frame creates an intense and easily recognizable light signal. The declared flashing cycle 90 ms ON / 1910 ms OFF (0.5 Hz) is designed to meet visual signaling requirements and provide a clear reference during an emergency.
Wireless Jeweller and synchronization: coordinated alarm, simplified management
In the event of an incident, the acoustic alarm can be automatically synchronized on all devices equipped with sounders connected to the same CIE: a tangible advantage for achieving a uniform signal in different areas of the same building without having to set complex logics. Additionally, an alarm signaling test is available to verify that volume and visibility are adequate in the room before system handover.
Reduced maintenance: 5 years of autonomy and battery replacement without disassembly
The pre-installed batteries guarantee up to 5 years of autonomous operation, with battery status visible in the apps and quick replacement without needing to disassemble the device (useful for scheduled maintenance and reducing intervention times).
| COMMUNICATION | |
|---|---|
| Communication technology | Jeweller |
| Technology description | Proprietary wireless technology for the transmission of commands, alarms, and events |
| Bidirectional communication | Yes |
| Anti-tamper protection | Advanced |
| Encryption | Block encryption with mobile key |
| Notifications | Instantaneous |
| Control and configuration | Remotely via Ajax app |
| Operating frequencies | 866.0–866.5 MHz; 868.0–868.6 MHz; 868.7–869.2 MHz; 905.0–926.5 MHz; 915.85–926.5 MHz; 921.0–922.0 MHz (depending on the region) |
| Max effective radiated power (ERP) | up to 20 mW |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m (in open field) |
| Frequency hopping | Yes, to avoid interference and signal jamming |
| ALARM SIGNALING | |
| Type of alarm | Acoustic and visual |
| Signaling components | Acoustic alarm and LED frame |
| Sound volume | up to 100 dB at 1 m |
| Sound modes | 32 tones |
| Sound synchronization | Automatic on all devices connected to the same CIE |
| Flashing frequency | 90 ms ON / 1,910 ms OFF (2,000 ms cycle – 0.5 Hz) |
| Alarm signaling test | Check siren volume and visibility of light signals |
| INSTALLATION RECOMMENDATIONS | |
| Installation height | Up to 3 m on the ceiling, up to 2.4 m on the wall |
| Usage environment | Indoor and outdoor |
| ANTI-TAMPER PROTECTION | |
| Tamper-proof | Notification in case of removal from the mounting panel |
| SmartBracket lock | Prevents removal without special tools |
| Protection against counterfeiting | Device authentication |
| Connection loss detection | After 36 s (depends on Jeweller settings) |
| POWER SUPPLY | |

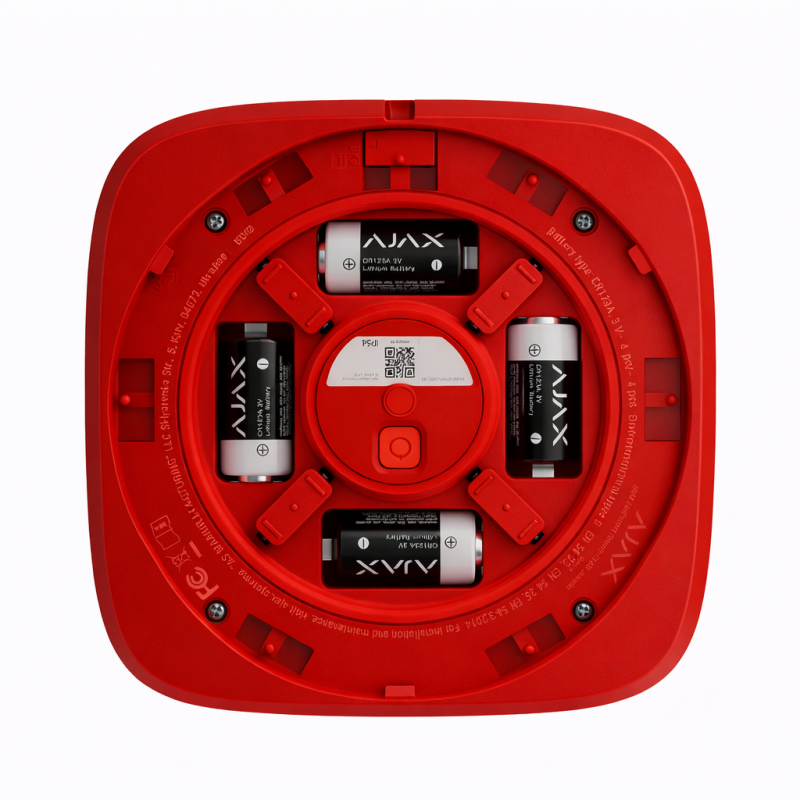

| Batteries | 4 × CR123A (pre-installed) |
| Battery replacement | Tool-free, by rotating the cover |
| Reverse polarity protection | Yes |
| Recommended battery type | Huiderui CR123A · 3 V · 1,600 mAh · LiMnO? |
| Estimated battery life | up to 5 years |
| ENCLOSURE | |
| Dimensions | 145 × 145 × 51 mm |
| Weight | 561 g |
| Operating temperature | from –10 °C to +60 °C |
| Maximum allowable humidity | up to 80% |
| Protection class | IP54 |
| Flammability class | UL 94 V-0 |
| PACKAGE CONTENTS | |
| Device | EN54 FireProtect (Sounder/VAD) Jeweller |
| Batteries | 4 × CR123A (pre-installed) |
| Mounting panel | SmartBracket |
| Accessories | Installation kit |
| Documentation | Quick guide |
There are no reviews
Data sheet
- Colour: Red
- Type: Wireless Sirens
- System: Wireless
- Installation: External
Internal
