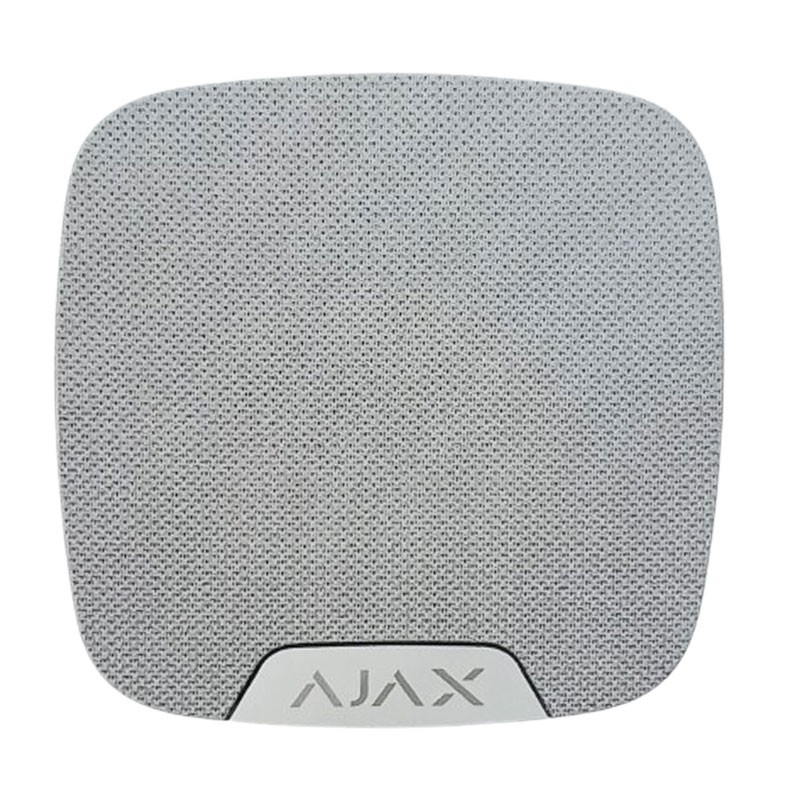

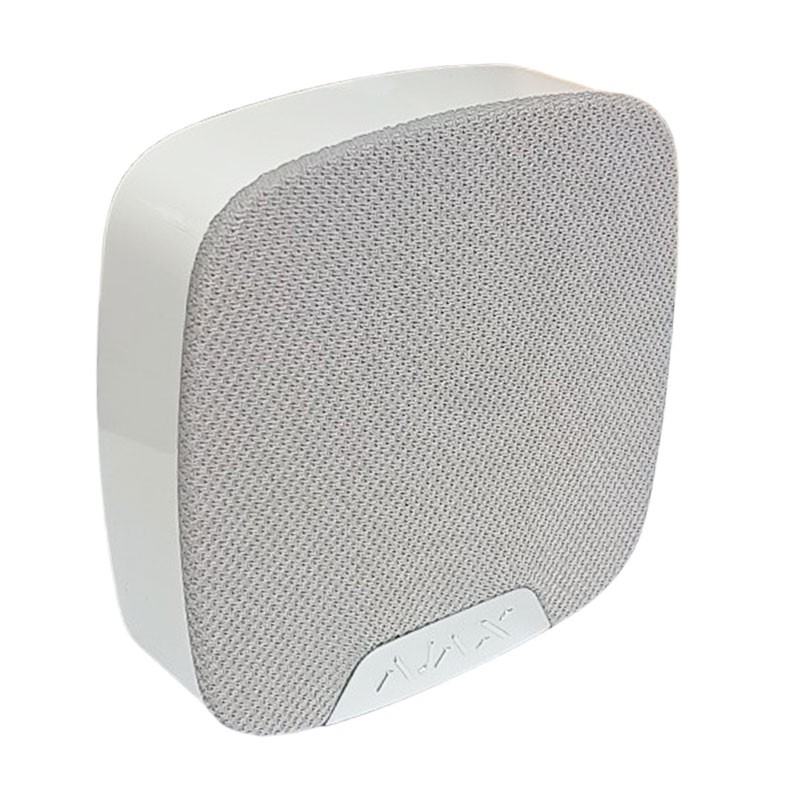

Ajax HomeSiren Jeweller Wireless Siren for Indoor White
08T 38111
4823114014819
The Ajax HomeSiren Jeweller wireless siren, white in color, is an intelligent indoor device that not only signals alarms but also provides visual and audible notifications of security status, entry and exit delays, and post-alarm events. With wireless communication via Jeweller protocol, it can connect to an Ajax hub or repeater up to 2,000 meters away (in open field).
The device comes with preinstalled batteries with a battery life of up to 5 years, ensuring maximum reliability and ease of installation.
- Powerful sound and status LED to notify of security events
- Notification of alarms for intrusion, fire, flooding and more
- Indication of entry and exit delays, to avoid false alarms
- Display of security status, with LED always on or flashing
- Bell function on opening, useful for stores and businesses
- Post-alarm signaling, to inform about confirmed and unconfirmed security events
- External LED connector, to monitor the status of the system
- Reliable wireless connection, with Jeweller protocol
- Preinstalled CR123A batteries, with a battery life of up to 5 years
- Battery status monitoring via Ajax app, with low battery alerts.
€80.19
Items Available: 257
: 11
The article is also included in the kit:
Frequently bought together
Ajax HomeSiren Wireless Siren: Complete Protection and Intelligent Notifications
HomeSiren Jeweller is an intelligent indoor device that does more than just notify alarms. It can also serve as a security status indicator, notify when doors are opened, and display entry and exit delays and post-alarm. The device operates independently on preinstalled batteries for up to 5 years and uses the Jeweller wireless radio protocol to communicate with a hub or repeater at a distance1 of up to 2,000 m. HomeSiren Jeweller is hardware and software protected and easy to control via Ajax apps.
Five main goals of the Home Siren Jeweller
Informs of any alarm
The siren scares off intruders and notifies fire detection, flooding, and other alarms. An installer can set the detector that activates the sound and LED indication.
Indicates delays
HomeSiren Jeweller can be set to indicate a delay when entering or leaving. If the function is active, the built-in LED and sound remind the user that the system must be turned off.
Displays a security mode
The siren's LED indicator can light up to indicate that the system is engaged or that the security mode has changed, or remain on at all times to prevent unwanted pursuit. In addition, third-party sound and LED indications can be used.
Notifications when a door is opened
HomeSiren Jeweller can make a special sound to indicate that the opening detector sensors have triggered when the system is disarmed. This is a Doorbell on opening function and is perfect for stores. Employees will be notified immediately of new visitors.
Signal post-alarm
When activated, the siren's LED indicator shows confirmed and unconfirmed alarms and lid openings. An external LED can be installed to monitor the status of the security system.
Ajax Wireless System and Siren Batteries
Baseline devices operate without cables, providing maximum flexibility during installation. Preinstalled CR123A batteries from established manufacturers ensure easy setup, requiring no additional steps to start using the devices. After the batteries are tested in real time at the production stage, Ajax Systems inspects each unit to ensure the accuracy of the battery characteristics. Batteries are easily replaced after about 5 years of autonomous operation. Users and supervisory institutions can always check battery status via Ajax apps and anticipate maintenance through early low battery alerts.
- Real-time testing during battery production
- Up to 5 years of autonomous operation
- Early notification of low battery level
The Ajax system uses secure two-way radio communication based on Jeweller's proprietary radio protocol. It supports block data encryption and device authentication during each communication session with the hub to prevent sabotage, forgery, or data theft.
Ajax Device Compatibility
| Device | Compatibility |
|---|---|
| Hub (2G) Jeweller | Compatible |
| Hub (4G) Jeweller | Compatible |
| Hub 2 (2G) Jeweller | Compatible |
| Hub 2 (4G) Jeweller | Compatible |
| Hub 2 Plus Jeweller | Compatible |
| Hub BP Jeweller | Compatible |
| Hub Hybrid (2G) | Compatible |
| Hub Hybrid (4G) | Compatible |
| Hub Hybrid (4G) (without casing) | Compatible |
| Hub Plus Jeweller | Compatible |
| ReX 2 Jeweller | Compatible |
| ReX Jeweller | Compatible |
Home Siren Ajax Specifications
Communication Technology Jeweller
| Feature | Description |
|---|---|
| Type | Proprietary wireless communication technology for transmission of commands, alarms and events. |
| Key Features |
|
| Operating frequencies |
|
| Maximum effective radiated power (ERP) | up to 25 mW |
| Automatic power control | Reduces power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | Up to 2,000 m (between device and hub or repeater in open field). |
| Encrypted communication | All saved and transmitted data are protected by block encryption with a moving key. |
| Frequency hopping | Prevents radio interference and inhibition. |
Alarm
| Feature | Description |
|---|---|
| Alarm Type. | Audible indication and LED (buzzer and LED). |
| Type of warning device | Type W - Internal and self-powered. |
| Siren volume |
|
| Alarm duration |
|
| Frequency of siren sound | 3.4 ± 0.5 kHz |
| Ability to connect an additional LED | 3 V⎓ (The additional LED works in parallel with the built-in LED and replicates its indication). |
| Event indication |
|
Installation and Anti-Sabotage Protection
| Feature | Description |
|---|---|
| Intended Use. | The siren is designed for indoor use only. |
| Recommended installation height | 2.5 m or higher. |
| Tamper alarm | Notifies if an attempt is made to detach the device from the surface or remove it from the mounting panel. |
| Counterfeit protection | Device authentication to prevent unauthorized replacement. |
| Detection of loss of connection |
|
Power supply
| Feature | Description |
|---|---|
| Battery | 2 × CR123A (Preinstalled) |
| Calculated battery life | Up to 5 years |
| Operating voltage of the siren | 1,9 - 3,3 V⎓ |
| Rated operating voltage of the siren | 3 V⎓ |
| Current consumption of the siren at rest | 68 µA (at rated voltage) |
| Peak current consumption | 1.1 A (when the siren sounds at a Very loud volume level) |
| Average current consumption | 50 mA (when siren sounds at default volume level, regardless of safety mode) |
| Full battery capacity | 3,200 mAh |
| Low battery voltage | 2,1 V⎓ |
| Battery voltage at end of life | 1.9 V⎓ (Device is off) |
| Battery capacity at end of life | 366 mAh |
| Manufacturer | Huiderui |
Case
| Feature | Description |
|---|---|
| Dimensions | 75 × 76 × 27 mm |
| Weight | 97 g |
| Operating Temperatures | -10°C to +40°C |
| Maximum allowable humidity | Up to 75% |
| Protection class | IP50 |
Material included in the package
| Element | Description |
|---|---|
| Device | HomeSiren Jeweller |

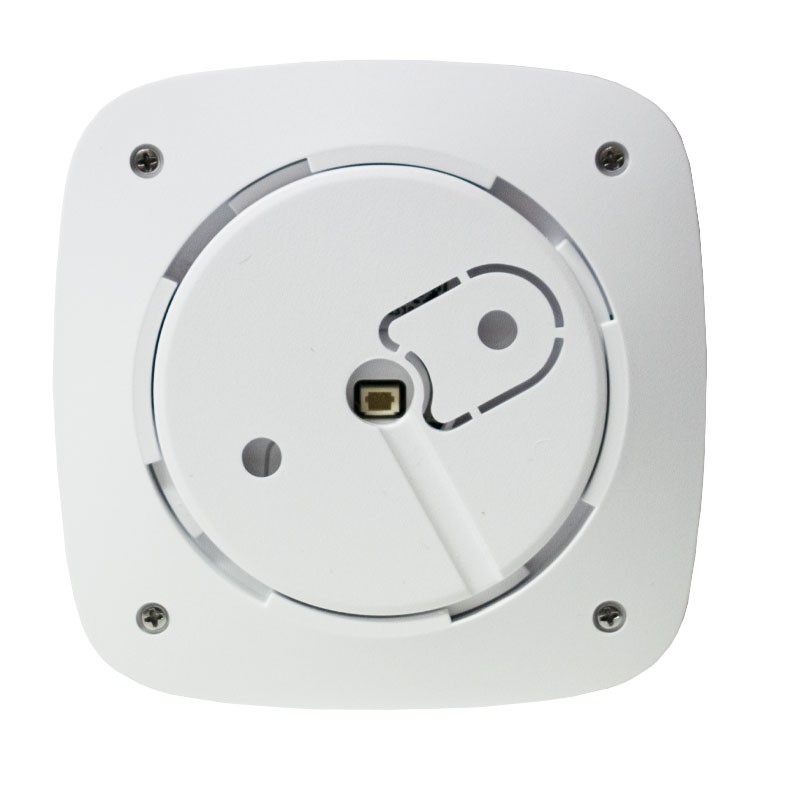

| Mounting panel | SmartBracket |
| Batteries | 2 × CR123A batteries (preinstalled) |
| Accessories | Connector for LED indicator |
| Installation kit | Included |
| Quick Start Guide | Included |
Buon prodotto. Facile da installare e configurare.
Fantastico prodotto compatto e funzionale. Straordinario
Ottima qualità prezzo. Il funzionamento è come atteso
Non potentissima, ma fa il suo lavoro. Perché non venedete anche l'alimentatore?
Ajax è garanzia e affidabilità. Facile da installare e configurare
piccola ma fa il suo lavoro, la si può mettere ovunque ed ha un bel design
prodotto di alta qualità, istruzioni esaustive, Consiglio
.
Facila da installare, manuale utente on line chiaro e preciso
Ottimo prodotto materiali di alta qualità e facile da configurare.
Di facile installazione decibel migliorabili
Data sheet
- Colour: White
- Type: Wireless Sirens
- System: Wireless
- Installation: Internal
