Toshiba Seiya Air Conditioner with Mounting KIT 3.3KW 12000BTU R32 WIFI
KIT TSHSE12
Toshiba Seiya 3.3KW 12000BTU Single-split Inverter Air Conditioner Energy Class A++/A+, with new R32 Gas and WIFI included.

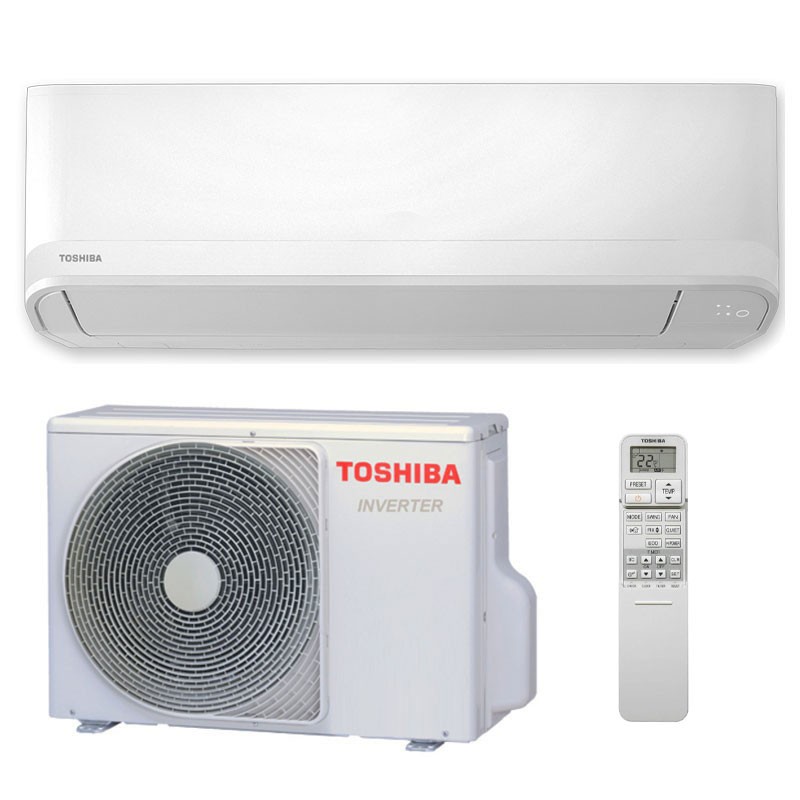

Price includes:

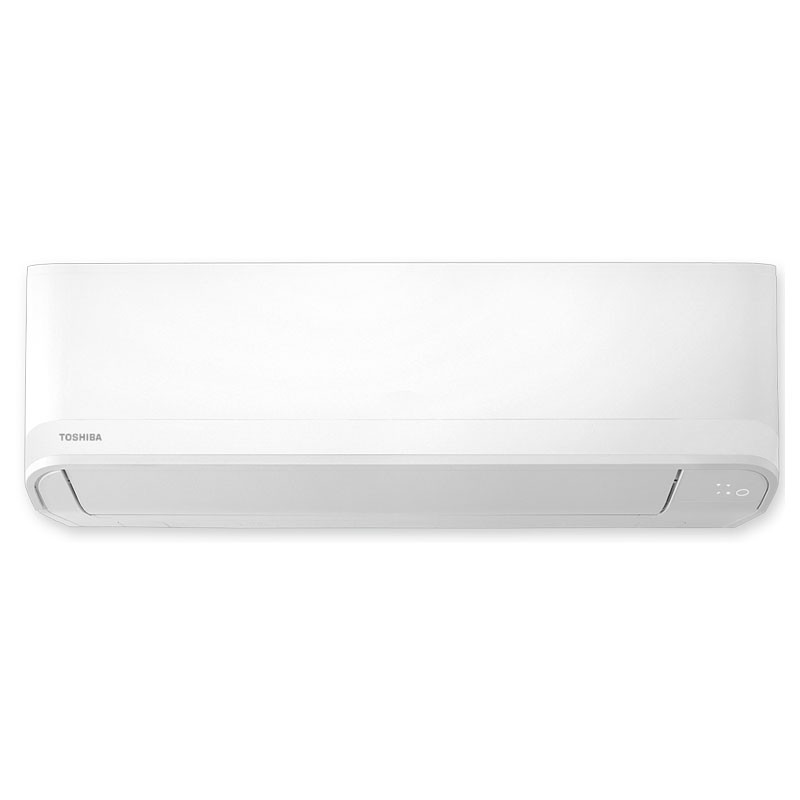

- 1 Indoor Unit (RASB13S4KVGE)

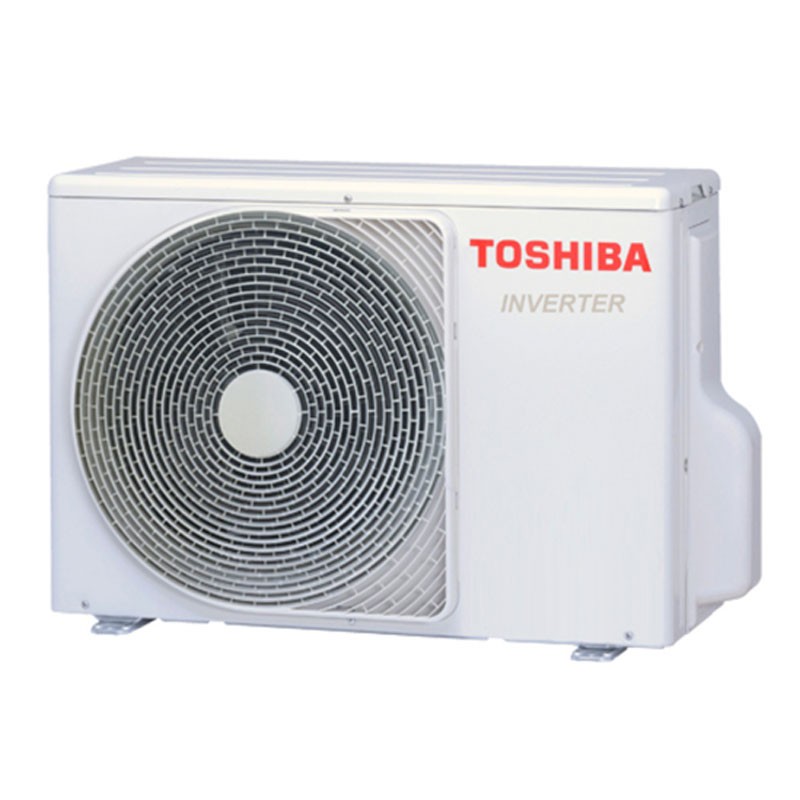

- 1 Outdoor Unit (RAS13E2AVGE)
- 1 Remote Control
- 1 Mounting KIT.
For a room of approximately 35m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€1,027.98
Items Available: 3
: 2
Air conditioners of the same series
Frequently bought together
Toshiba Seiya: Maximum comfort and Inverter technology for every season
Toshiba Seiya's 12000 BTU (3.3 kW) air conditioner is designed to provide maximum comfort in residential and professional environments. Inverter technology dynamically adjusts power to maintain a constant temperature, reducing consumption and increasing energy efficiency. Thanks to the more environmentally friendly and high-performance R32 refrigerant gas, this air conditioner respects the environment and offers high performance.
Remote control via Wi-Fi and smart features
With built-in Wi-Fi, you can control your air conditioner from anywhere via app, adjusting temperature, mode and power. The included remote control gives you access to advanced features such as ECO mode, which optimizes energy consumption, and the Hi Power function, for faster cooling or heating. The Quiet function, dedicated to both indoor and outdoor units, further reduces noise for absolute comfort.
Extreme quietness for peaceful nights
The name "Seiya," which means "peaceful nights" in Japanese, perfectly reflects Toshiba's design philosophy: absolute quietness and maximum comfort. The indoor unit achieves a sound pressure of only 19 dB(A), being almost inaudible during operation, while the outdoor unit is also optimized to minimize noise, ideal for use at night or in urban settings.
Cleaner air thanks to the Ultra Pure filter
The ULTRA PURE filter uses silver ions and natural enzymes (derived from kimchi) to capture fine dust and bacteria, significantly improving air quality in the home. The internal coil has a dust cover and automatic cleaning system to ensure consistent performance over time.
Toshiba Seiya Technical Specifications
Cooling
| Feature | Detail |
|---|---|
| Min/Max Capacity | 3.3 KW 1.0/3.60 |
| Rated input power | kW 1.10 (0.26-1.25) |
| SEER | 6,10 |
| Energy class | A++ |
| EER | n/a |
| Indicative annual energy consumption | kW/a 189 |
Heating
| Feature | Detail |
|---|---|
| Min/Max Capacity | 3.6 KW 1.1/4.50 |
| Rated power consumption | 0,92 (0,22-1,24) |
| SCOP | 4,0 |
| Seasonal energy efficiency class | A+ |
| COP | n/a |
| Indicative annual energy consumption | kWh/a 980 |
Indoor Unit Features
| Feature | Detail |
|---|---|
| Dimensions (HxWxD) | 293x798x230mm |
| Weight | 9.0Kg |
| Processed air Cooling (C-H) (cubic meters/min) | 600 - 618 |
| Sound pressure level (Cooling / Heating) | 21-24-41 / 21-24-42 dBa |
| Sound Power Level (C-H) | 56-57 dBA |
Outdoor Unit Features
| Feature | Detail |
|---|---|
| Dimensions (HxWxD) | 530x660x240mm |
| Weight | 24Kg |
| Sound Pressure Level (C-H) | 48-50 dBa |
| Sound Power Level (C-H) | 63-65 dBA |
| Power Supply | Single-phase 220-240 / 50Hz |
| Liquid/Gas Piping | 6,35 (1/4") - 9,52 (3/8") |
| Max/min piping length | 30/3 meters |
| Max height difference between indoor/outdoor unit | 12 meters |
| Refrigerant Type | R32 gas |
| Length of piping without added charge | 15 meters |
| Precharge Kg TCO2Eq GWP | 0,46-0,31-675 |
| Operating range in Cooling | -15 - 46°C |
| Operating range in Heating | -15 - 24°C |

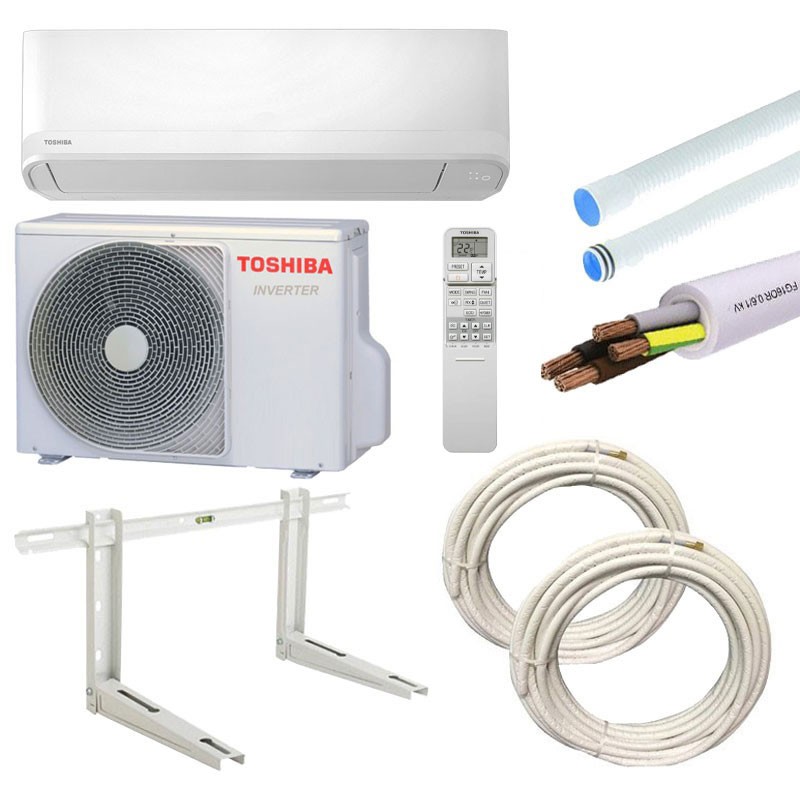

Specifications of the products in the Kit
Wall Bracket for Outdoor Unit
| Feature | Detail |
|---|---|
| Bracket Material | Galvanized and powder coated steel |
| Anti-vibration feet | Included, with quick insertion |
| Hardware | Stainless steel in the KLIMA STRONG INOX and KLIMA TOP INOX models |
| Special Models | KLIMA STRONG and KLIMA HEAVY for non-standard machines |
| Top of the range | KLIMA TOP shelf for maximum quality |
| Coloring | White RAL 9002 |
| Accessories available | KLIMA GROUND and KLIMA FOOT anti-vibration bases for floor mounting |
Dimensions
| Parameter | Value |
|---|---|
| Arm length (L1) | 420 mm |
| Height | 400 mm |
| Bracket thickness | 15/10 mm |
| Crossbar length | 780 mm |
Flexible Condensate Hose D. 17-20 mm (10 m)
| Feature | Detail |
|---|---|
| Model | Bi-extruded corrugated hose |
| Structure | Double-layer polypropylene (biextrusion) |
| Type | Anti-crush, flexible |
| Length | 10 meters |
| Diameter | 17-20 mm |
| Application | Specifically for condensate drainage; ideal for undercut installation |
Technical Specifications
| Parameter | Value |
|---|---|
| Material | UV-stabilized polypropylene |
| Operating temperature range | -30 °C to +75 °C |
| UV protection | Yes |
| Crush resistance | High |
Cable Included
| Feature | Value |
|---|---|
| Length | 10 meters |
| Type | Double-insulated flame-retardant cable |
| Structure | 5 x 1.5 mm² (5×1.5 mm²) conductors |
| Applications | Ideal for electrical connections in air conditioning and conditioning systems |
Tecnogas FAST PIPE Kit
Kit composition
| Element | Detail |
|---|---|
| Pipe 1 | 1/4" diameter (Ø 6.35 mm), length 6 m, tapered female-female connections, copper gaskets included |
| Pipe 2 | Diameter 3/8" (Ø 9.52 mm), length 6 m, tapered female-female connections, copper gaskets included |
| Compatibility | 9,000 / 12,000 BTU air conditioners |
Structure of Compartmentalized Hose
| Layer/Material | Description |
|---|---|
| Interior | Closed-cell polyethylene foam |
| Polymer barrier | Barrier polymer + 4-layer aluminum film |
| Intermediate layer | Polyamide long-chain |
| Reinforcement | High-tenacity synthetic fiber |
| Outer coating | Anti-UV and anti-IR film |
Technical Characteristics
| Parameter | Value |
|---|---|
| Fittings | Brass "Propeller": Gauges, Screwdrivers, Crimps |
| Applications | F-gas refrigeration circuits containing R410A, R32, R134A, R404A, R407C |
| Operating temperature | -30 °C to +110 °C (max 130 °C non-continuous) |
| Maximum operating pressure | 100 bar |
Livraison rapide!
Kit installé et fonctionne parfaitement!
la notice manque de précision pour le montage de l'ensemble.
Pas encore mis en fonction, mais kit facile à installer et complet
Trés bon produit.Tout à fait dans mes attentes je recommande.
Le kit était percé vue les autres commentaires ça a l’air récurrent
Super climatiseur, bon rapport qualité prix, je viens de l'installer, tout fonctionne bien.
tres bien
ucmjß= uj8cf dxlPY9mç!bmyionyù
Data sheet
- KIT: Monosplit with KIT
- Air conditioners: Wall-mounted
- Gas: R32
- Power: 12000 BTU (3,5 Kw)
- System: Monosplit
- WIFI: Integrated
- Room Size: 35m²
- Energy class: A++
- Series: Seiya
