Toshiba Seiya 2.5KW 9000BTU R32 WIFI Air Conditioner with Mounting KIT
KIT TSHSE09

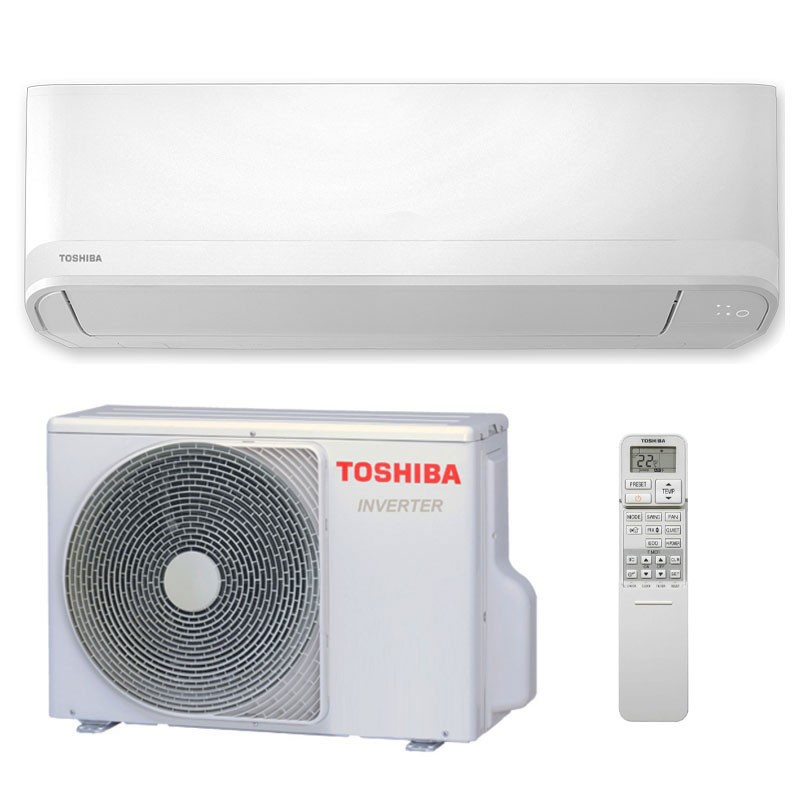

Single-split Inverter Toshiba Seiya 2.5KW 9000BTU Energy Class A++/A+ air conditioner with built-in wifi, with new R32 Gas included, price includes:

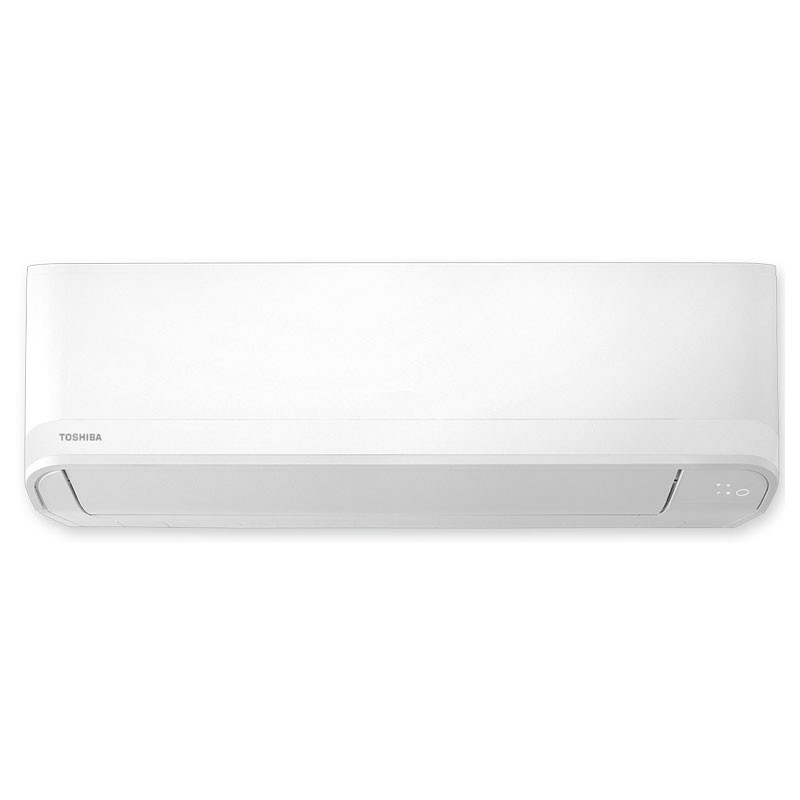

- 1 Indoor Machine 2.5kW (RASB10S4KVGE)

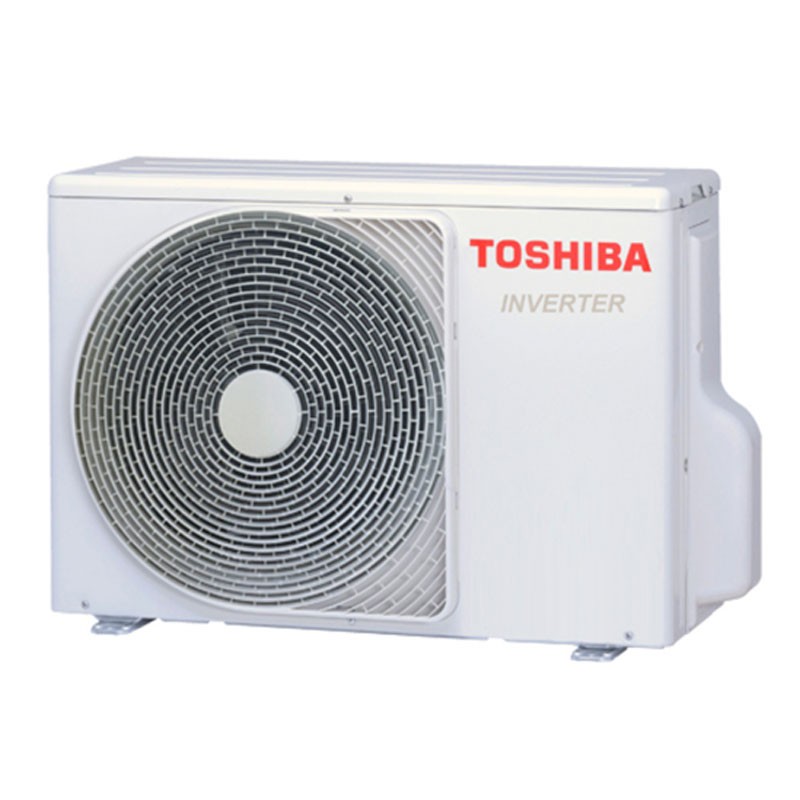

- 1 Outdoor Machine (RAS10E2AVGE)
- 1 Remote Control
- 1 Mounting KIT
Built-in WIFI to control your air conditioner remotely.
For a room of approximately 27m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€914.97
Items Available: 5
: 3
Air conditioners of the same series
Frequently bought together
Toshiba Seiya air conditioner
SEIYA maximizes well-being: a sound pressure level of only 19 dB(A) and the coil coated with a protective layer prevents dust and impurities from settling on the surface, improving cleanliness and performance over time.
Customized well-being
- With the remote control, the user can set the preferred operating mode and benefit from the various functions SEIYA can offer. The ECO function automatically adjusts the room temperature setting to reduce the unit's operating load, thus saving energy. The Hi Power function, on the other hand, automatically controls the room temperature and speeds up the cooling and heating of the room.
Quiet inside and outside the home
- Innovation, efficiency, high reliability, energy saving, environmental friendliness-these are the core values at the heart of Toshiba's DNA. The SEIYA outdoor unit is designed and manufactured to minimize its sound level. In addition, thanks to the Quiet function, sound pressure can be reduced by an additional 3 d(B)A while the On-demand defrost function allows you to manually control the defrosting of the outdoor unit in special weather conditions.
Absolute Silence
- Silent, technological, extremely efficient and environmentally friendly, Toshiba's wall-mounted unit proudly upholds the values that are the essence of its name: in Japanese, SEIYA means "Peaceful Nights." And it is indeed on this goal that Toshiba paid the utmost care during its development, coming up with a wall-mounted unit that is among the quietest in its class: only 19 d(B)A sound pressure. And the same attention was paid to the outdoor unit as well.
Toshiba's Ultra Pure Filter
- The new ULTRA PURE1 filter is the latest product from Toshiba Laboratories to improve indoor air quality. Experience gained from all previous filtering devices has led to this highly effective device that purifies the air using silver ions and enzymes extracted from kimchi.
Advantages
- Aluminum battery with dustproof coating
- Automatic battery cleaning system
- Highly quiet indoor unit
- Wide operating range: down to -15°C/+46°C in cooling to -15°C/+24°C in heating
- Compatible in multi-split combination (B-code version)
- Remote control with new functions: 2 quiet function (1 for indoor unit and 1 for outdoor unit) and on demand defrosting
Detailed Technical Features
Cooling
| Feature | Detail |
|---|---|
| Min/Max Capacity | 2.5 KW 0.80/3.00 |
| Rated input power | kW 0.77 (0.24-1.00) |
| SEER | 6,10 |
| Energy class | A++ |
| EER | n/a |
| Indicative annual energy consumption | kW/a 143 |
Heating
| Feature | Detail |
|---|---|
| Min/Max Capacity | 3.2 KW 1.0/3.90 |
| Rated power consumption | 0,86 (0,20-1,11) |
| SCOP | 4,0 |
| Seasonal energy efficiency class | A+ |
| COP | n/a |
| Indicative annual energy consumption | kWh/a 839 |
Indoor Unit Features
| Feature | Detail |
|---|---|
| Dimensions | (HxWxD) 293x798x230mm |
| Weight | 9.0Kg |
| Processed Air Cooling (C-H) | cubic meters/min 540 - 552 |
| Sound pressure level | (Cooling/Heating) dBa 21-24-39 / 21-24-39 |
| Sound Power Level | dBA 54-54 |
Outdoor Unit Features
| Feature | Detail |
|---|---|
| Dimensions (HxWxD) | 530x660x240mm |
| Weight | 23Kg |
| Sound Pressure Level (C-H) | dBa 48 / 50 |
| Sound Power Level (C-H) | dBA 63 / 65 |
| Power Supply | Single-phase 220-240 / 50Hz |
| Liquid/Gas Piping | 6,35 (1/4") - 9,52 (3/8") |
| Max/min piping length | 30/3 meters |
| Max height difference between indoor/outdoor unit | 12 meters |
| Refrigerant Type | R32 gas |
| Length of piping without added charge | 15 meters |
| Precharge Kg TCO2Eq | GWP 0.43-0.29-675 |
| Operating range in Cooling | -15 / 46 degrees |
| Operating range in Heating | -15 / 24 degrees |

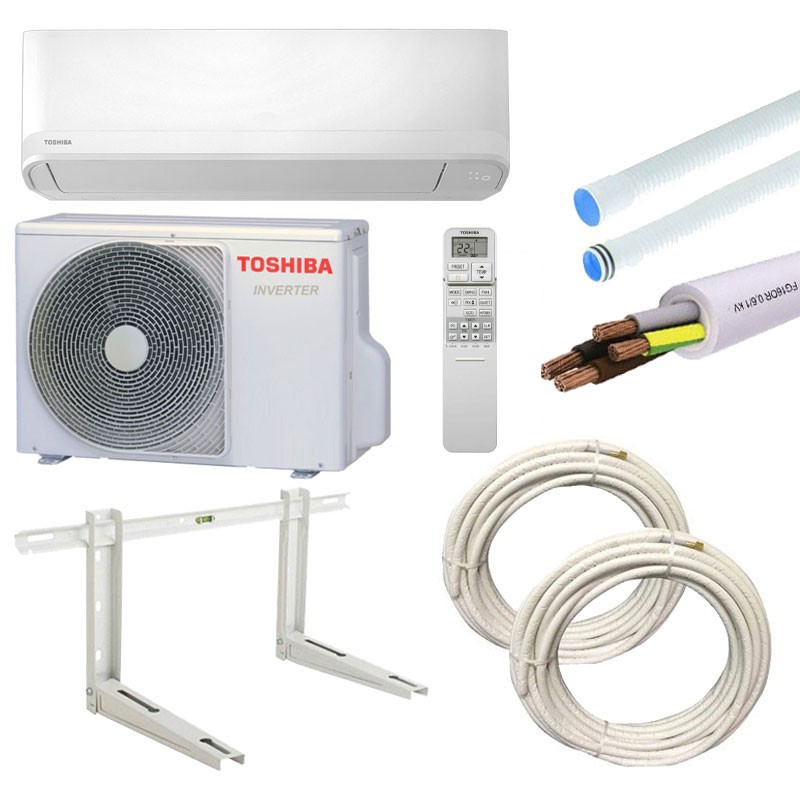

Specifications of the products in the Kit
Wall brackets for 9000 and 12000 btu air conditioners for outdoor motor:
- Galvanized and powder coated steel brackets
- Brackets complete with quick-fit anti-vibration feet
- Stainless steel hardware in KLIMA STRONG INOX and KLIMA TOP INOX SCREWS articles.
- KLIMA STRONG and KLIMA HEAVY for non-standard machines
- KLIMA TOP shelf for maximum quality
- KLIMA GROUND and KLIMA FOOT anti-vibration bases available for floor installations
- White RAL 9002
- Arm length L1 420 mm
- Height 400 mm
- Bracket thickness 15/10 mm
- Crossbar length 780 mm
Arnocanali condensate hose D. 17-20mm 10 meters:
BIESTRUSO anti-crushing corrugated hose. Manufactured with double layer of POLYPROPYLENE to ensure maximum safety in under-track use. Hose constructed from Polypropylene stabilized against UV rays. Operating temperature - 30°C + 75°c.
10 meters Double Insulated Flameproof Cable 5X1.5 mmq.
Tecnogas FAST PIPE kit consisting of:
- 2 pipes 6 meters one with female-female connections Diameter 1/4 (diameter 6.35) and one with female-female connections Diameter 3/8 (diameter 9.52) conical with copper gaskets included. Suitable for 9000/12000btu air conditioners.
Construction characteristics of the compartment pipe:
- Closed-cell expanded polyethylene
- Polymer barrier
- 4-layer aluminum film
- long-chain polyamide
- high-tenacity synthetic fiber
- anti-Uv and anti-IR coating
- anti-Uv film
- Fittings: brass "Propeller": Gauges, Screws, Crimps
- Field of use F-gas refrigeration circuits containing R410A-R32-R134A-R404A-R407C
- Operating temperatures -30°C/110°C (Max 130 C° non-continuous)
- Maximum operating pressure 100 Bar
Data sheet
- KIT: Monosplit with KIT
- Air conditioners: Wall-mounted
- Power: 9000 BTU (2,5 Kw)
- System: Monosplit
- WIFI: Integrated
- Room Size: 27m²
- Energy class: A++
- Series: Seiya
