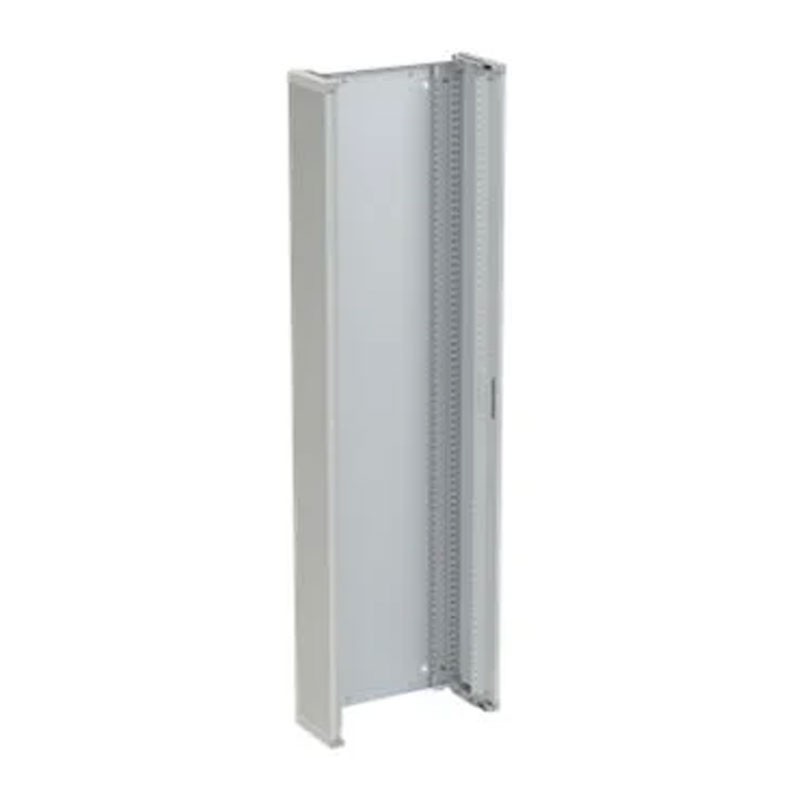

Abb wall-mounted structure base 24 modules 1600x600mm IP43 Q843B616

Abb
Abb
ABB Q843B616 8015646616043

Abb suspended wall structure base with the following features:

  • Type System pro E energy L
  • Mounting type: wall-hung, for indoor installation
  • Flat kit
  • Form of protection I (grounding)
  • Protection class IP43 (with door), IP30 without door
  • Acc. standard: IEC 61439-1, IEC 61439-2, IEC 61439-3; IEC62208,
  • Impact protection rating: IK08 for housing, IK07 for glass
  • Powder coated RAL 7035
  • Sheet steel material
  • Door must be added separately, can be mounted left or right, door opening 135°
  • Back plate made of sheet steel
  • Upper and lower parts must be purchased separately
  • Cable entry via large cable entry flange, dimensions in mm (H x W x D) 1600 x 400 (384) x 250, mod. no. DIN 240 (H = 150 mm)
  • Prepared for side-by-side extension
  • Prepared for internal mounting System pro E energy Combi (up to 800 A)
  • Color: Gray - Number of batteries: 0
Do you have questions about this product or did you not find what you were looking for? Ask us!
Abb wall-mounted structure base 24 modules 1600x600mm IP43 Q843B616
€614.89
€614.89

€614.89
Tax included
Calculate shipping cost
Items Available: 7
Further availability of the manufacturer
€614.89

Buy it within and receive it from Monday, 29 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Power loss:

  • Δt = 25K 71 W
  • Δt = 30K 102 W
  • Δt = 35K 135 W
  • Δt = 40K 169 W


Dimensions:

  • Product width: 600 millimeters
  • Product height: 1649 millimeters
  • Product depth: 250 millimeters
  • Product net weight: 32.235 kg

There are no reviews

Data sheet

Type:
Switchboards
Modules:
24
Degree of protection:
IP43
