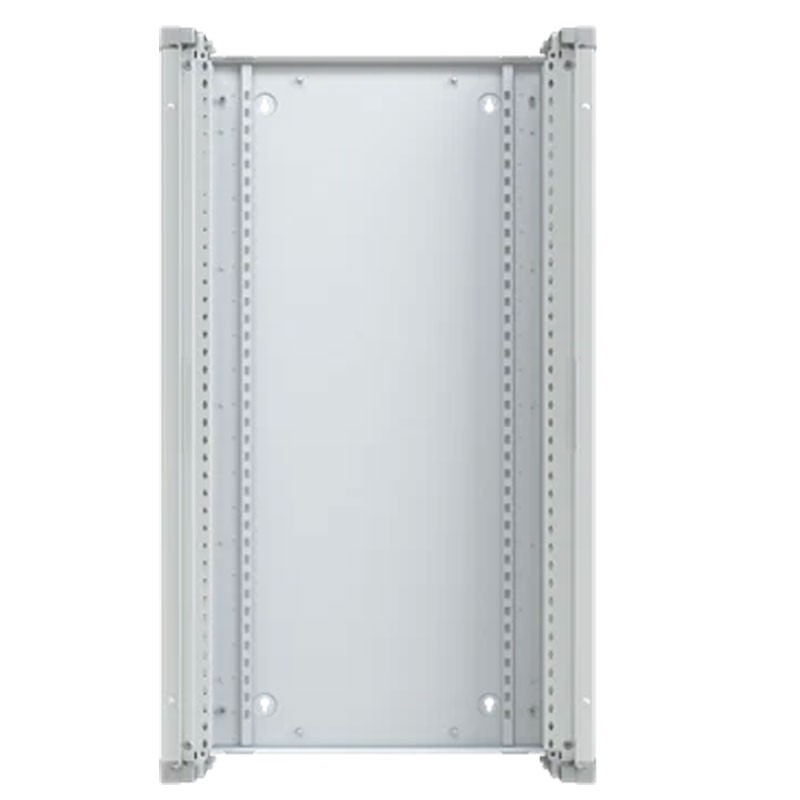

Abb Base structure wall roof bottom 24 modules DIN 400A IP43 L600 Q843B610
ABB Q843B610
5411815219214
Abb Base only wall-mounted roof structure with the following features:
- Modules: 24
- Type of mounting: Wall-hung, for indoor installation
- Flat kit
- Form of protection I (earthing)
- Protection class: (IP43 with door), (IP30 without door)
- Acc. standard: IEC 61439-1, IEC 61439-2, IEC 61439-3; IEC62208, IK08 for housing, IK07 for glass door and knock-out
- Powder-coated RAL 7035, sheet steel material,
- Door must be added separately (not included in package), can be mounted left or right, door opening 135°.
- Back plate made of sheet steel
- Top and bottom must be purchased separately (not included in package)
- Cable entry via large cable entry flange, dimensions in mm (H x W x D) 1000 x 600 x 250, model no. DIN 144 (H = 150 mm)
- Prepared for side-by-side extension
- Prepared for internal mounting System pro E energy Combi (up to 800 A)
- Colour: Grey - Number of batteries: 0
€260.30
Items Available: 12
: 2
Power loss:
- Δt = 25K 49 W
- Δt = 30K 69 W
- Δt = 35K 91 W
- Δt = 40K 115 W
Dimensions:
- Product width: 600 millimetres
- Product height: 1049 millimetres
- Product depth: 250 millimetres
- Product net weight: 20.954 kg
There are no reviews
Data sheet
- Type: Switchboards
- Modules: 24
- Degree of protection: IP43
