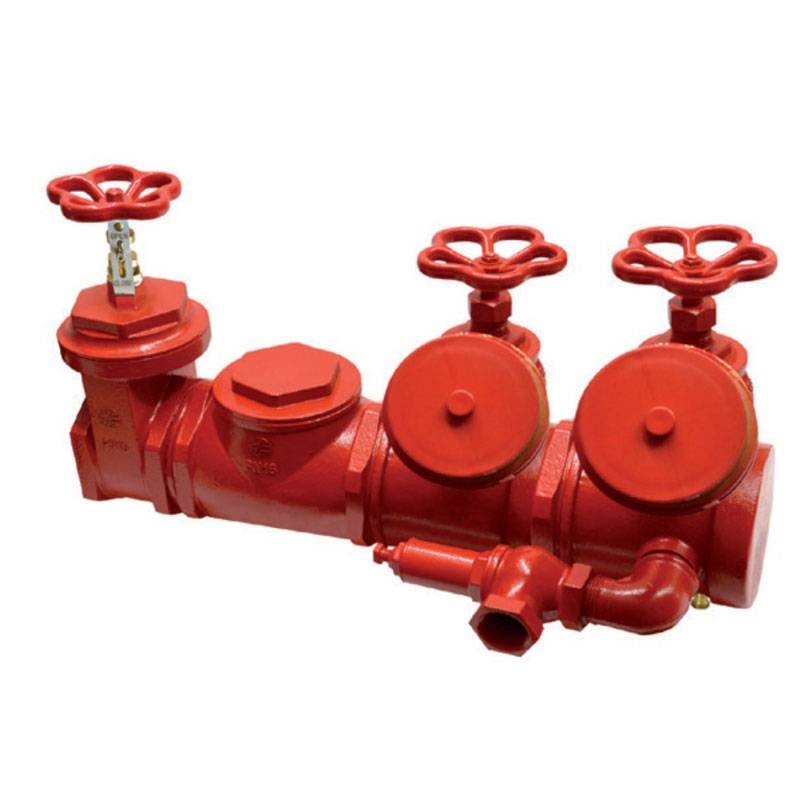

Ziggiotto Horizontal Threaded Fire riser assembly 2 connections 1/2 A1252

Ziggiotto
Ziggiotto
914 A1252

Ziggiotto Fire riser assembly with 2 Connections, is a professional and certified solution for fire-fighting systems fed by fire engine. With double UNI 70 female connections and fully assembled components, it guarantees maximum efficiency, reliability and compliance with current regulations. It is supplied in a horizontal version with right-to-left flow, ready for installation on a flush-mounted or wall-mounted box, with the following features:

  • Number of connections: 2 x UNI 70 2 1/2 inches

  • Safety valve: Brass, set at 12 bar (1.2 MPa)

  • Check valve: Inspectable clapet check valve

  • Gate valve: PN16 with hand wheel and visual indicator

  • Drain: Automatic in accordance with UNI 10779

  • Plug: Threaded UNI 810 in red polypropylene, removable with unified wrench

  • Body: Cast iron, impact and corrosion resistant

  • Version: Threaded, ready for connection with threaded systems

Do you have questions about this product or did you not find what you were looking for? Ask us!
Ziggiotto Horizontal Threaded Fire riser assembly 2 connections 1/2 A1252
€284.21
€284.21

€284.21
Tax included
Calculate shipping cost
Items Available: 2
Further availability of the manufacturer
€284.21

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Ziggiotto Fire riser assembly structure and configuration

The configuration of the unit is horizontal, with flow direction from right to left, which is optimal for installation inside wall-mounted or flush-mounted boxes. Each outlet is equipped with an independent tap, allowing each line to be individually activated or isolated.

The main body is made of cast iron GJS200, a material that is resistant to mechanical stress and external agents, ideal for installation in harsh environments.

Safety and certified components

The unit is complete with a brass safety valve, set at 12 bar (1.2 MPa), which protects the system from overpressure. The clapet check valve is inspectable, allowing rapid maintenance work without removing the assembly. Each connection is closed by a UNI 810 threaded plug made of RAL 3000 red polypropylene, which complies with the standard and can be removed with a UNI unified wrench.

There is also a PN16 gate valve equipped with handwheel, opening indicator and provision for padlock (not included), conforming to UNI 11443.

Automatic drainage system

To ensure the complete efficiency of the system and prevent water stagnation, the unit is equipped with an automatic drain, in full compliance with UNI 10779. This system is essential to prevent freezing, stagnation or unplanned pressure drops.

Applications and compatibility

The A1252 unit is suitable for installation in:

  • Public and private buildings

  • Health care and educational facilities

  • Industrial sheds and warehouses

  • Underground parking garages and multi-storey parking lots

  • Airports, stations and logistics infrastructure

Compatible with painted sheet metal boxes, shatterproof or safe glass guards, and 30x20 cm aluminum signs, the unit integrates seamlessly into modern fire protection systems.

Technical Specifications Fire riser assembly

Connections 2 x UNI 70 - UNI 804 female 2 in. 1/2
Taps Included on each outlet
Safety Valve Brass - 12 bar
Check valve Clapet - inspectable
Gate valve PN16 - with indicator and provision for padlock
Automatic drain UNI 10779 compliant
Caps UNI 810 - PP red RAL 3000
Body Cast iron GJS200
Flow direction Right → left
Standards UNI 10779, UNI 11443, UNI 804, UNI 810

There are no reviews

Data sheet

Type:
Fire riser assemblies
Connection:
F
Model:
Threaded
Connections:
2-1/2 inches
