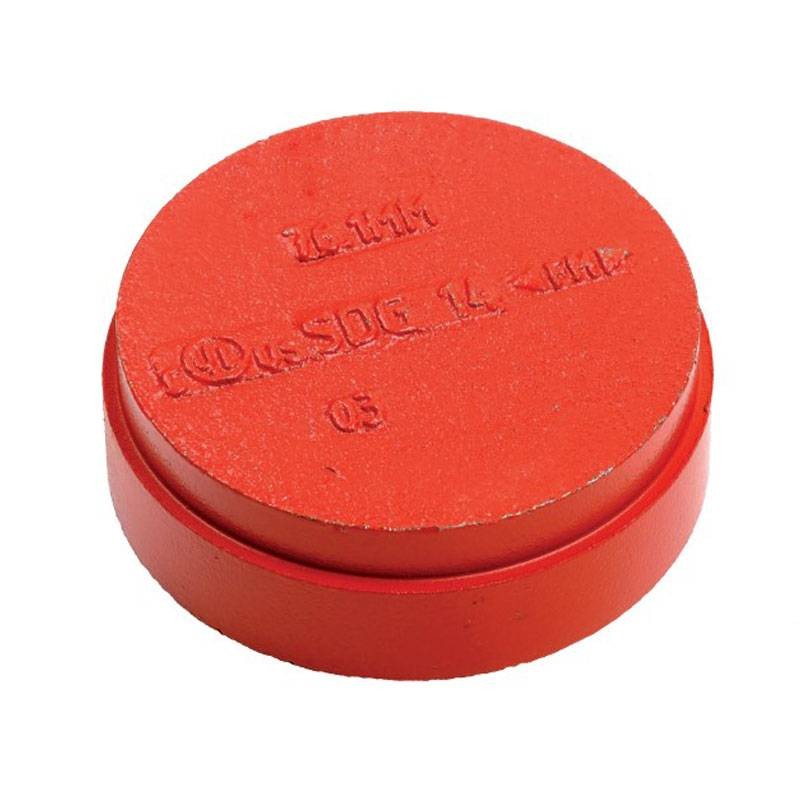

Ziggiotto grooved cap 3 inches 80 mm PN500 B0300089
914 B0300089
Ziggiotto grooved cap is the ideal solution for safely and quickly closing grooved hydraulic pipeline terminals, supports a pressure rating up to 500 PSI and is UL/FM certified, with the following features:
-
Nominal diameter: 3 inches (80 mm)
-
Outer diameter: 88.9 mm
-

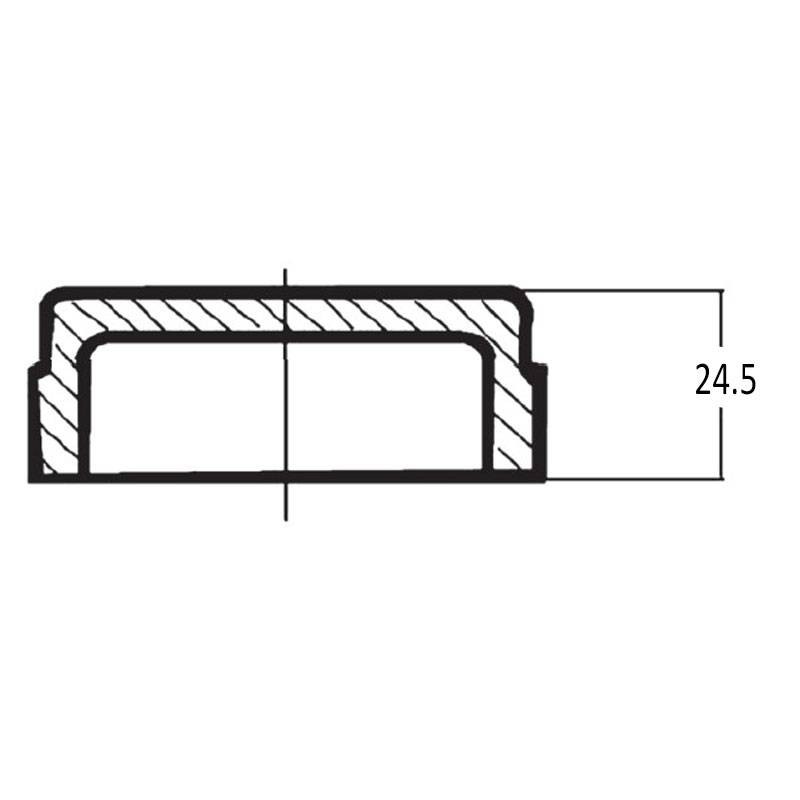

Length: 24.5 mm
-
Pressure rating: PN500
-
Compatible with: Water and glycol systems (max 15%)
-
Certifications: UL / FM
-
Alternative to: Welding, flanging and threading
€4.76
Items Available: 4
: 2
Ziggiotto cap efficient solution for hydraulic systems
The Ziggiotto cap allows the safe closure of civil and industrial plumbing system terminals made with grooved piping. The grooved system facilitates quick assembly and disassembly operations, reducing plant downtime and the need for specialized equipment.
Ideal for glycol and firefighting systems
Designed to work with water- and glycol-based fluids (up to 15 percent), the plug is perfect for heating, cooling, or firefighting systems. It is not suitable for potable water applications.
Technical Specifications Ziggiotto Grooved cap
| Nominal diameter (DN) | 3 inches (80 mm) |
| Pipe outer diameter | 88.9 mm |
| Nominal pressure | PN500 |
| Length | 24.5 mm |
| Certifications | UL / FM |
| Fluid compatibility | Water/glycol max 15% |
| Connection system | Groove (rolling or turning) |
| Use | HVAC systems, fire protection, plumbing distribution (not for drinking water) |
There are no reviews
Data sheet
- Type: Caps
- Connections: 3 inches
