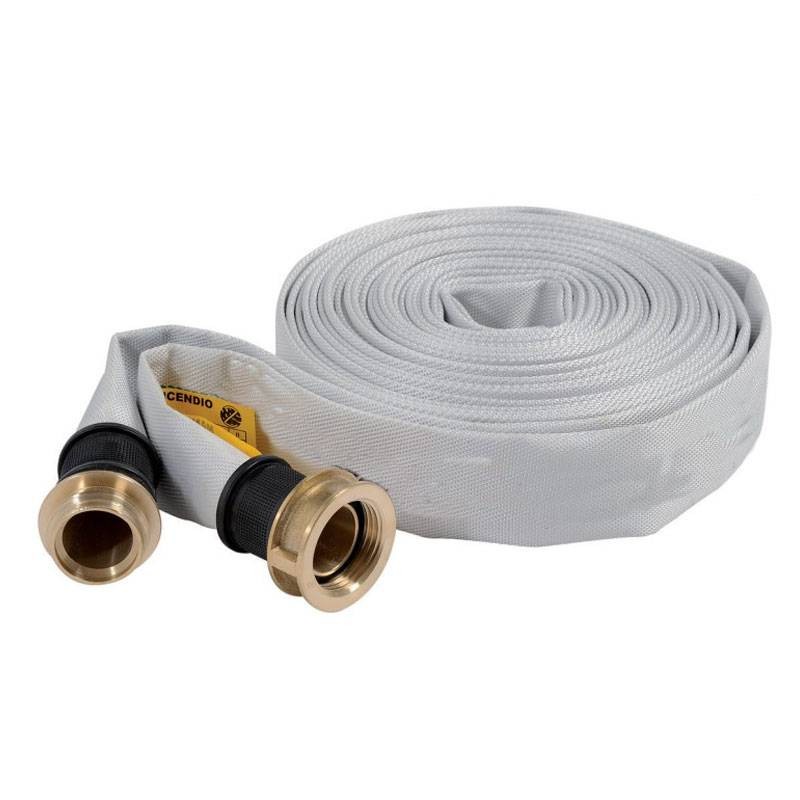

Tekna Ziggiotto Fire Hose DN45 Brass 25m A124525
914 A124525
Tekna Ziggiotto Fire Hose is designed to ensure maximum efficiency in civil and industrial fire-fighting systems, equipped with brass fittings according to table UNI 804, UNI 7422-certified binding, and a strong polyester fabric structure with EPDM inner lining, resistant to high pressures and wide temperature ranges, with the following characteristics:
-
Nominal diameter: 45 mm
-
Length: 25 meters
-
Fittings: Brass UNI 804
-
Binding: UNI 7422 compliant
-
Inner: EPDM, resistant to pressure and temperature
-
Fabric: High-strength polyester (continuous filament)
€58.36
Items Available: 5
: 3
Fire Hose Tekna reliability and compliance
Ziggiotto's Tekna fire hose is certified for professional use, suitable for installations in public buildings, industrial buildings, garages, sheds, and technical areas. The EPDM inner lining ensures waterproofness, wear resistance, and long life even in harsh environments. Applied label enables mandatory periodic traceability and verification according to fire regulations.
Recommended applications
-
Fire protection systems in accordance with UNI 10779
-
DN45 hydrant boxes
-
Manual extinguishing systems for industrial environments
-
Systems in garages, shopping centers, public facilities
Benefits for installers and maintainers
-
Ready to use with fittings fitted
-
Complies with European and Italian regulations
-
Easy to inspect thanks to the identification label
-
High resistance to pressure and weathering
Technical characteristics Fire hose
| Internal diameter | 45 mm |
| Working pressure | 1.5 MPa (15 bar) |
| Bursting pressure | > 4.5 MPa (45 bar) |
| Linear mass | 0.21 kg/m |
| Operating temperature | -30°C TO +80°C |
| Internal material | EPDM |
| Fabric material | Polyester (warp and weft) |
| Length | 25 meters |
There are no reviews
Data sheet
- Type: Fire Hoses
