Wigam VOYAGER semiconductor electronic leak detector for refrigerants 09001115
WIG 09001115

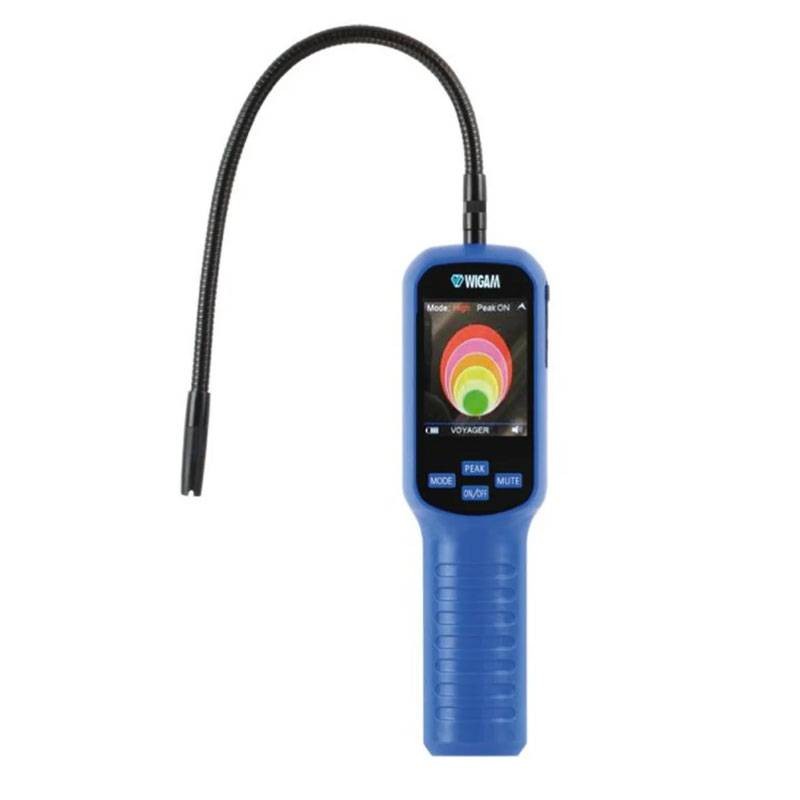

Wigam VOYAGER electronic leak detector with heated diode sensor. Detects HFC, CFC, HCFC, HFO, A2L, HC and Azohydro mixture, with the following features:
-
Semiconductor technology with heated diode sensor.
-
Detects all halogenated refrigerants, A2L, HC and Azohydro mixture
-
Sensitivity up to 3 g/year
-
Response time <3 seconds
-
Rechargeable lithium-ion battery with 6-hour battery life
-
EN14624:2012 and SAE J1627 compliance
€331.84
Items Available: 1
Frequently bought together
Wigam VOYAGER professional electronic leak detector for refrigerants
Maximum accuracy for all types of refrigerants
The Wigam electronic leak detector is designed to offer maximum effectiveness in leak detection on refrigeration and air conditioning systems. It is compatible with all major halogenated refrigerants, including HFCs, CFCs, HCFCs, HFOs, and A2L (such as R32 and R1234yf), as well as hydrocarbons (HC) and the Azohydro (N2-H2) mixture, without the need to change sensors.
High sensitivity and fast response
With heated diode sensor technology, it ensures a detection sensitivity of up to 3 g/year, with response time of less than 3 seconds. Start-up is equally fast, with a warm-up time of less than 60 seconds, enabling timely and accurate interventions.
Intuitive interface and ergonomic design
The instrument features a large color LCD screen with optimized graphics, audible alarm, mute button and headphone connection. The peak memory function helps detect leakage even after the first detection. The durable and flexible 40-cm probe allows access to even the least accessible spots.
Rechargeable battery power
The built-in lithium-ion battery provides up to 6 hours of continuous operation, making the instrument ideal for extended interventions. Recharging is fast and safe, designed for intensive daily use.
Technical Specifications Wigam Refrigerant Gas Detector
| Feature | Value |
|---|---|
| Technology | Heated diode sensor (semiconductor) |
| Sensitivity | Up to 3 g/year |
| Response time | <3 seconds |
| Warm-up time | <60 seconds |
| Probe length | 40 cm |
| Calibration | Automatic |
| Alarms | Audible and visual on LCD display |
| Power supply | Lithium-ion battery |
| Autonomy | Up to 6 hours |
| Compliance | EN14624:2012, SAE J1627, CE No. 1516 2007 |
| Gases detected | CFCs: R12, R11, R500, R503 HCFCs: R22, R123, R124, R502 HFCs: R134a, R404A, R125, R407C, R507, R410A, R32 HFOs: R1234yf, R1234ze HCs: R600, R290 Mixture: N2-H2 (Azohydro) |
There are no reviews
Data sheet
- Type: Gas leak detector
