Wigam nitrogen set with cartridge and reducer for HVAC systems 13005017001
WIG 13005017001

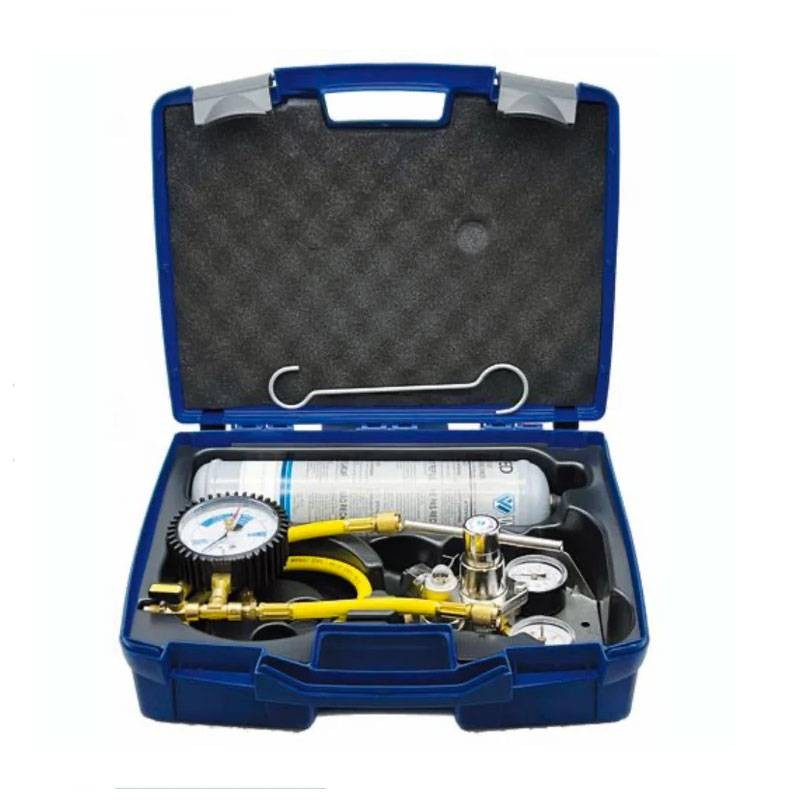

Wigam K-AZ200-50/BN2 nitrogen pressurization kit, for leak control, flushing and flushing of HVAC systems. Compatible with cylinders and cartridges. Kit consists of:
-
AZ200-50 series nitrogen reducer with built-in dual connections for cartridges and cylinders
-
Pressure gauge d80, class 1.0 with defined sectors, positioning index and adjustment screw
-
1/4 SAE hose, 900mm + 200mm
-
RG180/5-4 adapter (5/16 SAE F x 1/4 SAE M)
-
Sturdy plastic carrying case
€324.26
Items Available: 4
Frequently bought together
Professional Wigam nitrogen pressurization and HVAC test kit
Versatile and complete for every technical application
Complete, ready-to-use solution for leak testing, flushing and flushing operations in HVAC systems. Also ideal for testing pressure switches and gauges, it is an essential tool for every technician in the industry.
Reducer with dual connections for cartridge and cylinder
The AZ200-50 reducer included in the kit has a built-in connection that makes it compatible with both 1-liter cartridges and 5-liter cylinders, offering great operational flexibility. The cylinder connections are standard W 21.7 x 1/14 M.
Nitrogen cartridge 950 cc TPED included
The kit comes with a 950 cc nitrogen cartridge, precharged to 110 bar and TPED certified, ideal for quick mobile operations or as support during field maintenance.
Precise control with professional pressure gauge
Equipped with an 80 mm diameter, class 1.0 pressure gauge with graduated sectors, positioning index and adjustment screw, the system allows precise control of outlet pressure up to 4.8 MPa.
Ready to use in sturdy carrying case
The kit comes in a hard plastic carrying case designed to neatly and securely hold all components, facilitating transportation and organization during technical operations.
Technical Specifications Wigam Nitrogen Kit K-AZ200-50/BN2
| Feature | Value |
|---|---|
| Reducer | AZ200-50 with connections for cartridges and cylinders |
| Max. inlet pressure | 20 MPa |
| Max outlet pressure | 4.8 MPa |
| Nitrogen cartridge | 950 cc - 110 bar - TPED |
| Connections | 1/4 SAE + adapter 5/16 SAE F x 1/4 SAE M |
| Pressure gauge | Ø80 mm, class 1.0 |
| Hose | 900 mm + 200 mm, 1/4 SAE |
| Cylinder connections | W 21.7 x 1/14 M |
| Applications | Leak testing, flushing, flushing, pressure switch/gauge testing |
| Packaging | Rigid plastic case |
There are no reviews
Data sheet
- Type: Nitrogen Sets
