Milwaukee SDS-PLUS 26 mm Rotary Hammer with Fixtec Brushless M18 chuck
COP 4933478892
4058546361747
SDS-Plus 26 mm M18™ Brushless Rotary Hammer with FIXTEC™ system – Complete kit with 2 batteries 5.0Ah, rapid charger, and Heavy Duty case. Professional performance, maximum versatility.

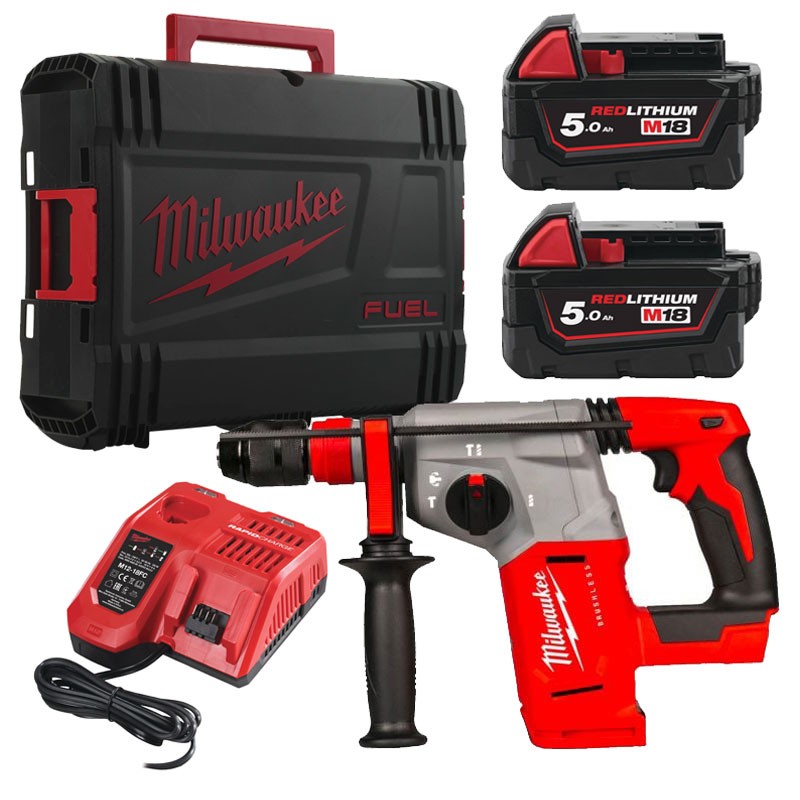

The set includes everything needed to start working immediately:
-
1 SDS-Plus 26 mm M18™ Brushless Rotary Hammer with FIXTEC™ system
-
2 M18™ 5.0Ah REDLITHIUM™ batteries – long runtime
-
1 Rapid Charger M12™–M14™–M18™ – extended compatibility
-

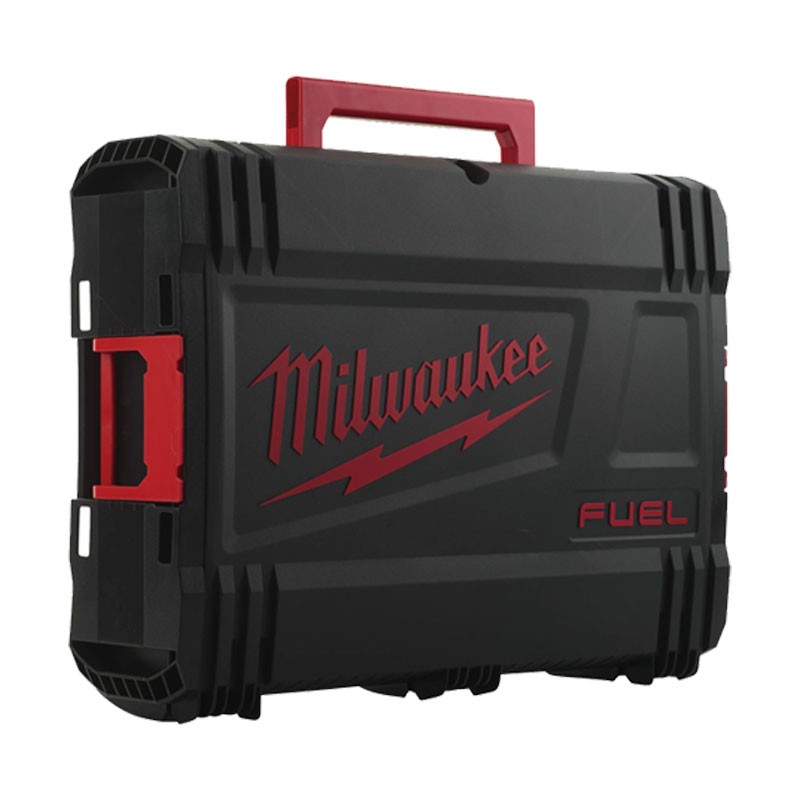

1 Heavy Duty Case – for transport and protection
-
1 13 mm Metal FIXTEC™ Chuck, side handle, and depth rod
€654.67
Items Available: 5
: 1

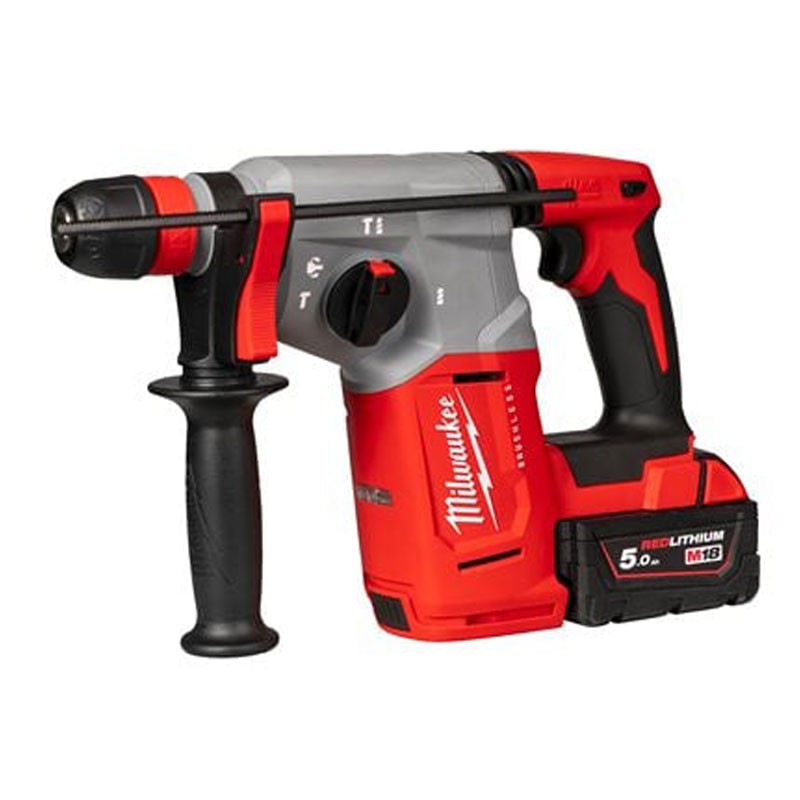

SDS-Plus Brushless Rotary Hammer: Power and Precision in One Tool
The SDS-Plus 26 mm M18™ rotary hammer represents Milwaukee's excellence for professional drilling and demolition work. Thanks to the brushless motor and REDLINK PLUS™ electronics, it ensures high performance, extended autonomy, and thermal and overload protection in any working condition.
The powerful hammer mechanism delivers 2.3 Joules of impact energy, ensuring efficiency in drilling concrete up to Ø26 mm and precision on wood and metal (up to 26 mm and 13 mm respectively).
Compact, Ergonomic, and Durable Design

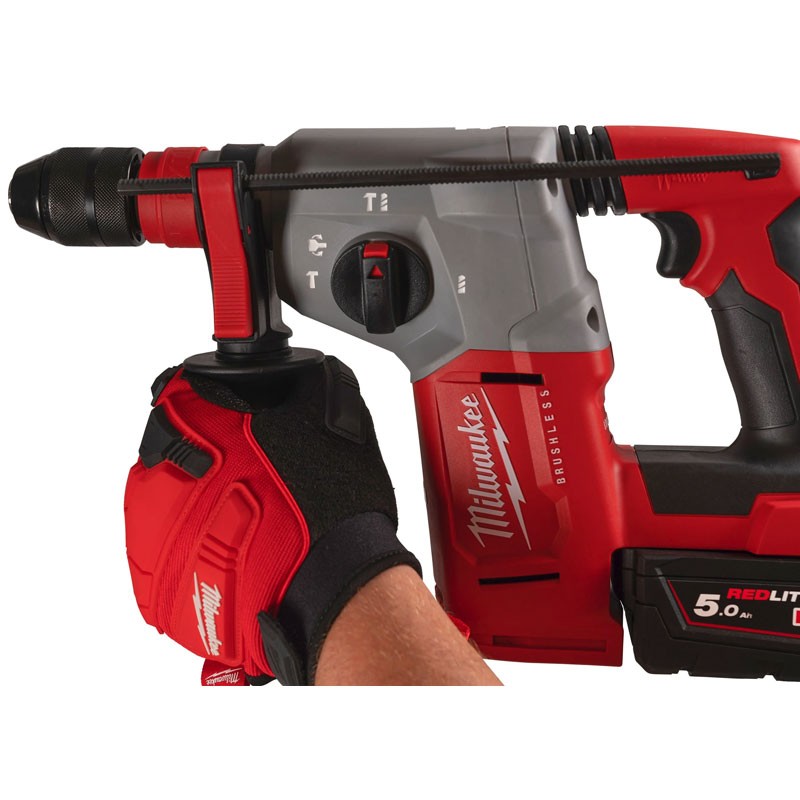

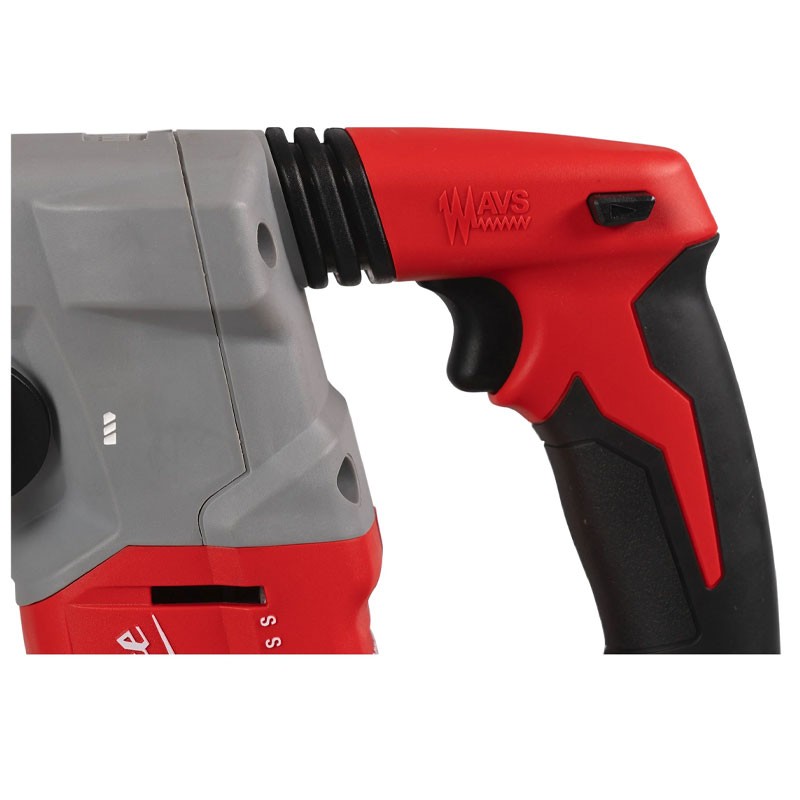

The machine is designed to ensure comfort and control, even during prolonged use. The anti-vibration side handle and compact design make it ideal for working in tight spaces, while the metal gear case ensures maximum durability and impact resistance.
The FIXTEC™ system allows for quick tool-free chuck changes, switching from SDS-Plus to the 13 mm metal keyless chuck included in the kit.
Maximum Versatility with 4 Operating Modes
The rotary hammer offers four operating modes:
- Hammer drilling – for drilling into concrete
- Chiselling – for material removal or small demolitions
- Rotation – for light drilling on wood and metal
- Neutral position – for precise chisel orientation
Perfect for professionals who need a versatile and high-performance tool on construction sites, installations, or maintenance.
- Impact energy: 2.3 J (EPTA)
- 4 working modes: hammer drilling, chiselling, rotation, chisel position
- FIXTEC™ system for quick chuck change
- Brushless motor + REDLINK PLUS™ electronics
- Compatible with M18 CDEX dust extraction
- SDS-Plus attachment + 13 mm chuck included
- Heavy Duty case + 2 M18™ 5.0Ah batteries + rapid charger
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Attachment | SDS-Plus + Reduced shank 13 mm |
| Max drilling capacity wood | 26 mm |
| Max drilling capacity metal | 13 mm |
| Compatible with dust extraction system | Milwaukee M18 CDEX |
| Impact energy (EPTA) | 2.3 J |
| Impact energy | 2.3 J |
| Standard equipment | Side handle, depth rod, 13 mm metal FIXTEC™ chuck |
| FIXTEC chuck | Yes |
| Supplied in | Heavy Duty case |
| Max concrete drilling | 26 mm |
| Blow frequency | 4,900 blows/min |
| Optimized for concrete drilling | 6 – 18 mm |
| No-load speed | 0 – 1,400 rpm |
| Weight | 2.8 kg |
| Weight with battery (EPTA) | 3.5 kg (M18 B5) |
| NOISE LEVEL | |
| Sound pressure level (Lpa) | 90.7 dB(A) |
| Uncertainty Lpa | 3 dB(A) |
| Sound power level (Lwa) | 101.7 dB(A) |
| Uncertainty Lwa | 3 dB(A) |
| VIBRATIONS | |
| Vibrations during drilling | 14.9 m/s² |
| Uncertainty vibrations drilling | 1.5 m/s² |
| Vibrations during chiselling | 12.7 m/s² |
| Uncertainty vibrations chiselling | 1.5 m/s² |

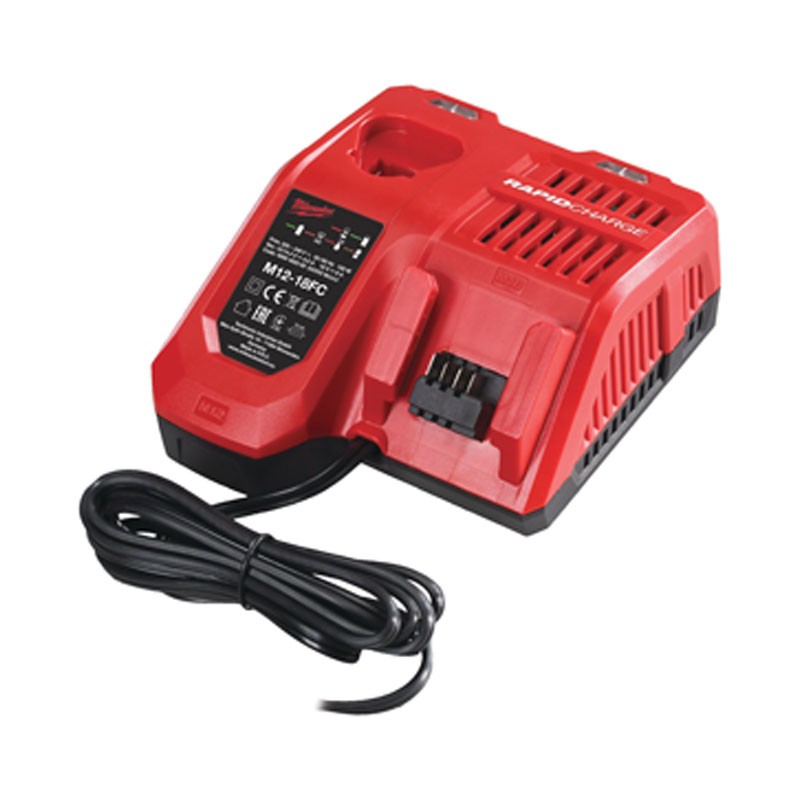

Rapid Charger M12™ - M14™ - M18™
Milwaukee M12™ / M14™ / M18™ rapid charger – compatible with all REDLITHIUM™ batteries, intelligent sequential charging, and optimized charging times.
- Compatible with Milwaukee M12™, M14™, and M18™ batteries
- Supports all REDLITHIUM™ batteries
- Sequential charging: charges the first inserted battery to optimize time
- Fast charging times, ideal for intensive work cycles
- Compact and robust design, perfect for workshops, construction sites, and laboratories
Intelligent and Fast Charging for All Milwaukee Batteries
The Milwaukee M12™ - M14™ - M18™ rapid charger is designed to ensure efficient management of REDLITHIUM™ batteries, reducing downtime and improving productivity on site. Thanks to the sequential charging function, the battery inserted first is automatically charged first, offering a smoother workflow without unnecessary waiting.
| MAIN FEATURES | |
|---|---|
| Compatible battery capacity (Ah) | 2.0, 4.0, 5.0, 3.0, 5.5, 8.0, 12.0 |
| Wall mountable | ✔ |
| Lithium battery compatibility | Yes |
| NiCd battery compatibility | No |
| NiMH battery compatibility | No |
| Charging port | 1 × M12™, 1 × M18™ |
| Charging time (min) | 26 / 52 / 59 / 36 / 60 / 87 / 130 |
| Battery type | Li-ion |
| Charging speed | 6.0 / 4.5 |
| Weight | 0.8 kg |

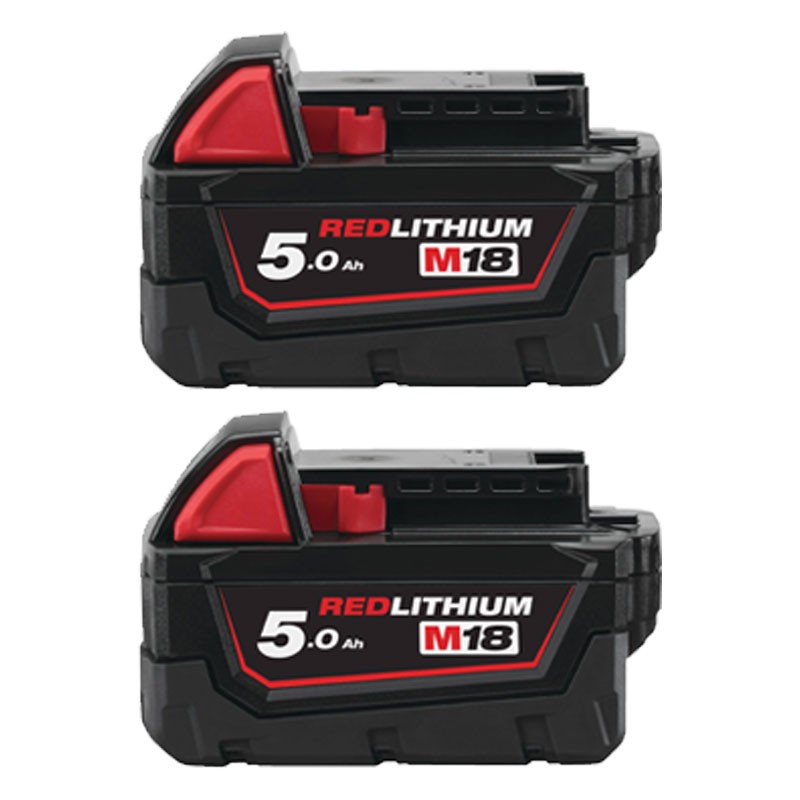

Milwaukee M18™ 5.0 Ah REDLITHIUM™ Battery
The M18™ 5.0 Ah REDLITHIUM™ battery is designed to provide consistent and reliable power to the entire Milwaukee M18™ tool range, offering an optimal combination of runtime and power. Perfect for intensive professional use, it allows you to tackle the toughest jobs with up to 20% better performance compared to traditional lithium-ion batteries.
REDLINK™ Technology: Protection and Performance Under Control
Thanks to the integrated REDLINK™ electronics, the battery is protected from overloads, overheating, and deep discharges, ensuring safer use and an extended lifecycle. The system constantly monitors each individual cell, optimizing charging and discharging processes and preserving the internal integrity of the battery even under extreme usage conditions.
Robust Construction, Resistant to Shocks and Weather
The battery pack structure is designed to last:
- Cells perfectly locked to withstand shocks and vibrations
- Internal anti-shock separators
- Anti-infiltration protection element that diverts water away from electronic components
- Rubber coating to improve impact resistance and thermal dispersion
Operation is guaranteed even at extreme temperatures, down to -20°C, making it ideal for use on any construction site or industrial environment.
Always Keep Track of Autonomy
Thanks to the integrated LED indicator, you can view the remaining charge level at any time, better planning interventions and optimizing work times without unnecessary interruptions.
| MAIN FEATURES | |
|---|---|
| Battery capacity (Ah) | 5.0 |
| Battery type | Li-ion |
| Voltage | 18 V |
| Charging time (Charger M12-18 MBPSC4) | 59 min |
| CHARGING TIMES WITH COMPATIBLE CHARGERS | |
| Charger M12-18 SC | 59 min |
| Charger M12-18 AC | 100 min |
| Charger M12-18 C | 100 min |
| Charger M18 DBSC / MDBSC AC | 59 min |
| Charger M18 PC6 / MPC6 AC | 59 min |
| Simultaneous Charger M18 DFC | 59 min |
| Charger M12-18 FC | 59 min |
| Charger M1418C6 | 100 min |
| GENERAL DATA | |
| Weight | 0.7 kg |
There are no reviews
Data sheet
- Type: Rotary Hammers
