Tecnel Speed Controller for Brush Motors 1000W 230V AC IP20 TE8210
TTE TE8210
Tecnel speed controller for 1000W brush motors, precise and linear control for 230V power tools. Smooth regulation from 0 to 100% speed with constant power even at low speed, with the following features:
-
Technology: phase cut SCR
-
Supply voltage: 230V AC - 50 Hz
-
Maximum power handled: 1000 W
-
Protection index: IP20
-
Control: Potentiometer with graduated scale and knob
€58.56
Out of stock
Incoming
Precise speed governor for brush tools
Speed controller for brush motors (charcoal) designed to provide smooth and reliable speed control in a wide range of power tools. Using phase-cut SCR technology, it allows continuous adjustment from 0% to 100%, maintaining constant torque even at low speeds.
Ready to use, with simplified wiring

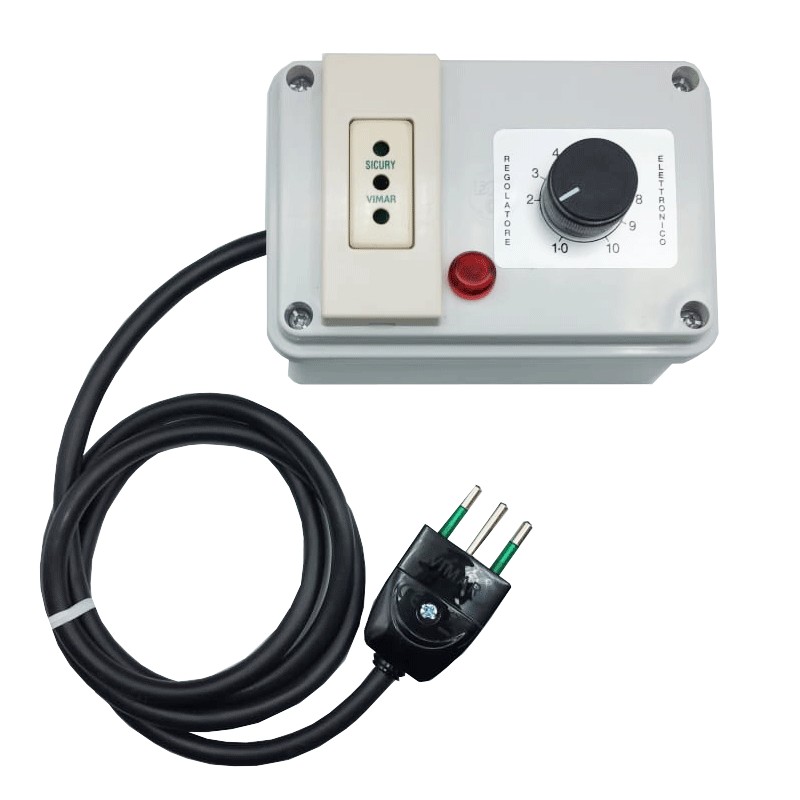

Supplied in a watertight box, the device is ready for immediate use thanks to its built-in power socket and cord with plug. Features potentiometer with knob and graduated scale, facilitating visual and manual speed adjustment, ideal for applications in professional and craft environments.
Versatile applications on various power tools
The TE8210 controller is particularly suitable for:
-
Drills: to adapt the speed to the diameter of the drill bit
-
Sanders and grinders: for delicate or intensive machining operations
-
Polishing machines: also for car bodywork, with precise control of rotation
- Nibbling machines: by adapting the speed to the thickness of the sheet metal
Caution: the TE8210 is only compatible with brush motors without an internal electronic controller. Cannot be used with induction motors (e.g., fans) or for dimming lamps.
Technical Specifications Speed Controller
Technical Specifications
| Technology | Phase-cut SCR |
| Supply Voltage. | 230 V AC - 50 Hz |
| Maximum power handled | 1000 W |
| Protection index | IP20 |
| Control | Potentiometer with knob and scale |
| Adjustment | Linear from zero to maximum speed |
Functionality
| Built-in power tool socket | Yes |
| Power cord with plug | Yes |
| Internal protection fuse | Yes |
| Compatibility | Not suitable for induction motors or lamp control |
Dimensions
| Dimensions (W x H x D) | 120 × 80 × 50 mm |
There are no reviews
Data sheet
- Type: Electronic Variators
