Hiltron Protec 4 Zone GSM IR Burglar Alarm Kit KPROTEC4GSM50
C1A KPROTEC4GSM50
8056450414784
Hiltron Protec 4 Zone GSM IR Burglar Alarm Kit: professional protection with GSM dialer, dual technology and intelligent zone management.

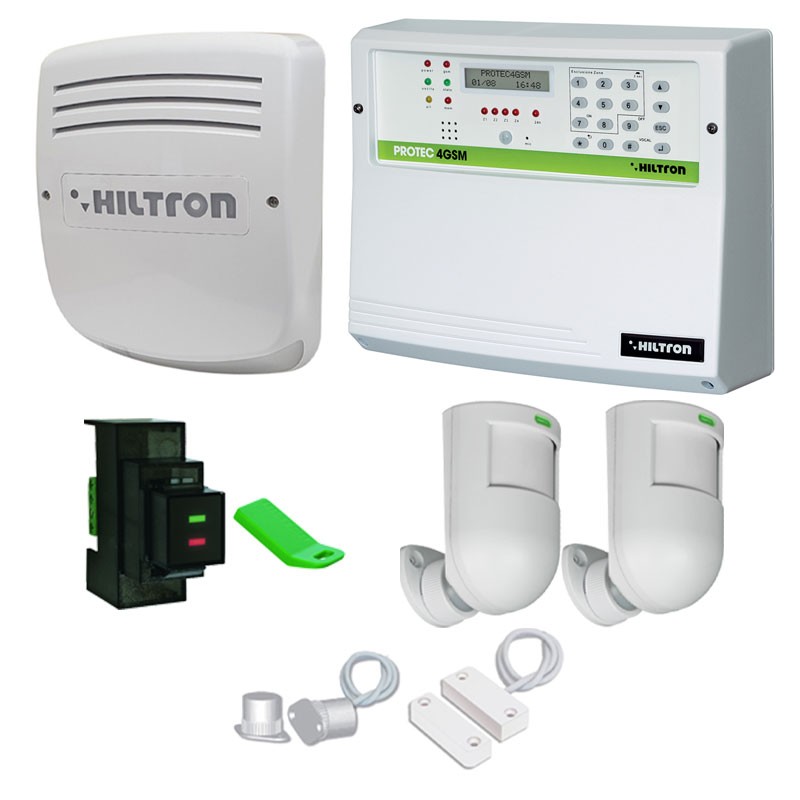

The Kit consists of:
-
1x PROTEC4GSM Central Unit - 4 wired zones, GSM dialer, built-in IR sensor
-
1x External siren SA400 - Self-powered, anti-shock, self-testing
-
1x DX200 proximity reader - RS485 bus, zone partialisation
-
1x Flush-mounted contact C56 - Cylindrical for window frames
-
1x Magnetic contact C58 - Surface-mounted
-
2x Dual technology sensors DG12 - Infrared + microwave
€512.40
Items Available: 28
: 17
Frequently bought together
Hiltron Protec 4 burglar alarm kit: for home and professional security
The Hiltron Protec Kit KPROTEC4GSM50 offers a professional-level wired burglar alarm solution, ideal for homes, offices, stores, or small commercial buildings. At the heart of the system is the Protec4GSM control panel, which has 4 wired zones and a built-in GSM dialer, for sending alarms and notifications via SMS or call. It also includes a built-in IR sensor, for additional security directly at the control panel.
Perimeter and volumetric protection
The kit features 2 DG12 dual technology detectors, combining passive infrared and microwave for more reliable detections and reduced false alarms. The SA400 external, self-powered siren is shock-resistant thanks to its anti-shock function and is self-testing to ensure maximum operation at all times. Perimeter protection is complemented by a cylindrical flush-mounted contact (C56) and a surface-mounted magnetic contact (C58) for doors or windows.
Intelligent management with proximity reader
The DX200 reader allows convenient access control via HF keys/tags, with zone partialization directly from the RS485 bus. This allows only certain areas of the system to be activated (e.g., activate only the perimeter at night), increasing the flexibility of use for different living or working needs.
- Protec4GSM control panel with 4 wired zones and built-in GSM dialer
- Internal IR sensor and management via SMS or call
- SA400 self-powered external siren with antishock and self-test
- DX200 proximity reader with zone partialization on RS485 bus
- DG12 dual technology sensors for maximum reliability
- Flush-mounted and surface-mounted magnetic contacts

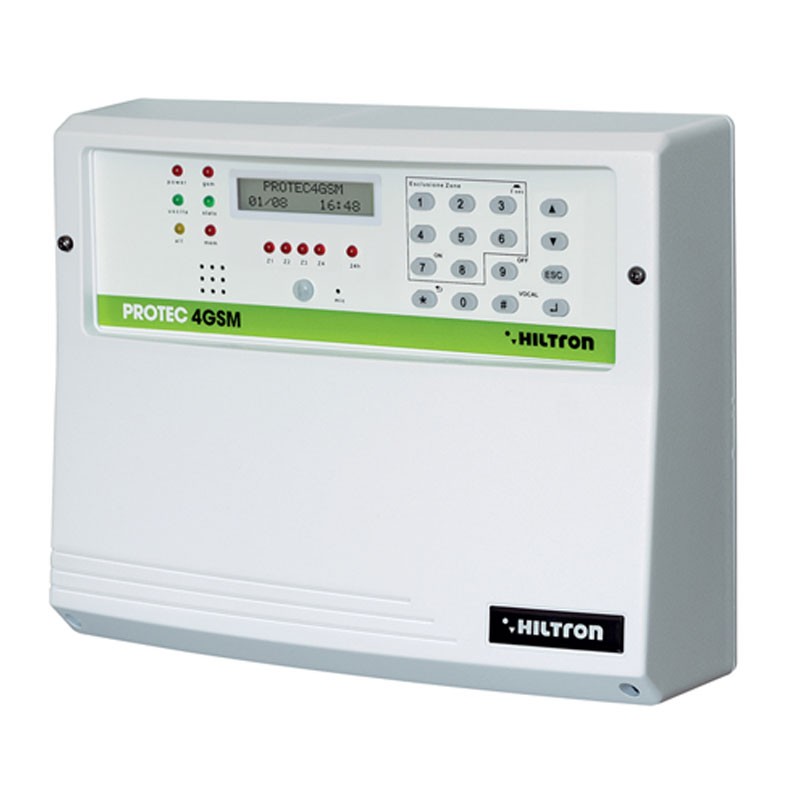

Protec4GSM control panel with GSM IR
| Feature | Detail |
|---|---|
| Built-in GSM dialer | Zone identification, remote self-exclusion |
| APP for system management | MyHILTRON (free of charge) |
| GSM module | Quadriband |
| Control LEDs | Network presence, exit time, alarm status, zone status, alarm memory |
| Protection zones | 4 |
| Built-in detector type | Can be used for backlighting or anti-sabotage |
| Voice-guided menus | Zone identification, simple remote self-exclusion |
| Pre-recorded voice messages | Network presence status, anti-theft status |
| Possibility of control | Via remote console |
| Self-inhibition of each zone | Active if not reset after an alarm |
| Adjustable alarm duration | 180 - 600 sec |
| Maximum deliverable current | 2.6 A |
| Rated supply voltage | 230 V |
| Battery compartment | B12V7A |
| IP rating | IP30 |
| Safety rating | 1 |
| Environmental class | 2 |
| Dimensions (W x H x D) | 280 mm × 230 mm × 96 mm |

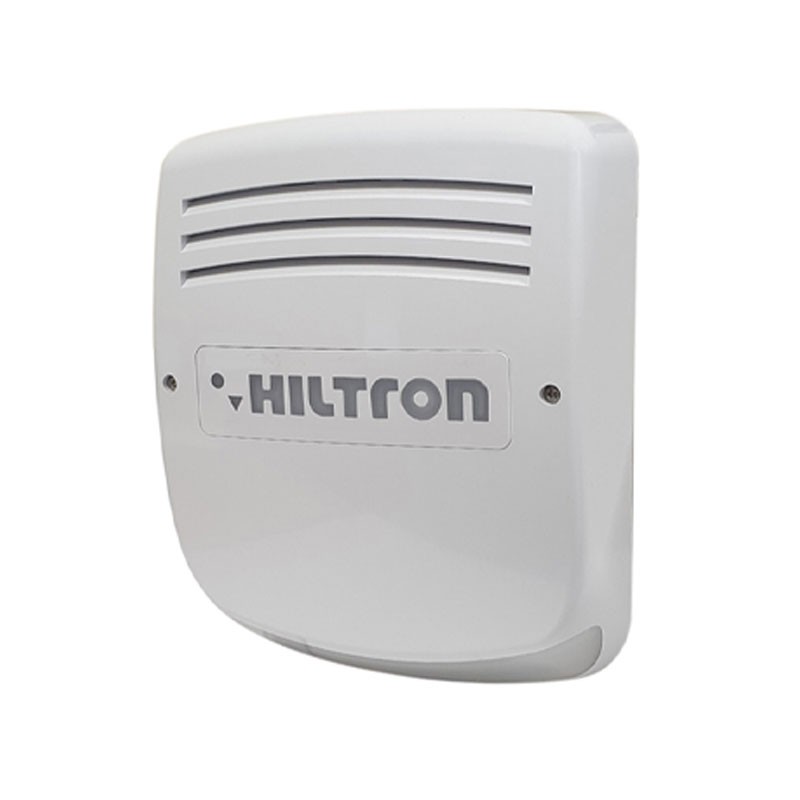

SA400 outdoor siren
| Feature | Detail |
|---|---|
| Advanced periodic self-diagnosis technology | With ANOMALY output signaling |
| LED flasher | High luminous efficiency and low power consumption |
| Check | Battery status and periodic battery efficiency test |
| Anti-shock sensor | Included |
| AUTOTEST function | Included |
| Acoustic speaker | Magneto-dynamic high sound emission |
| Programming | Via 8 dip switches |
| Rated supply voltage | 14 V DC |
| Maximum power consumption | 2,2 A |
| Terminal board input signals | ALARM, STOP SOUND, SYSTEM STATUS |
| Terminal board output signals | TAMPER, FAULT |
| Internal enclosure | Entirely made of metal for high burglary resistance |
| Container | ABS with polycarbonate flasher |
| Battery compartment | B12V2A |
| Color | White |
| Colored shell options | SC400M (brown), SC400G (gray), SC400R (red) optional |
| Environmental class | 4 |
| IP rating | IP44 |
| Complies with the standard | CEI EN 50131-1 |
| Dimensions (W x H x D) | 200 mm × 265 mm × 78 mm |

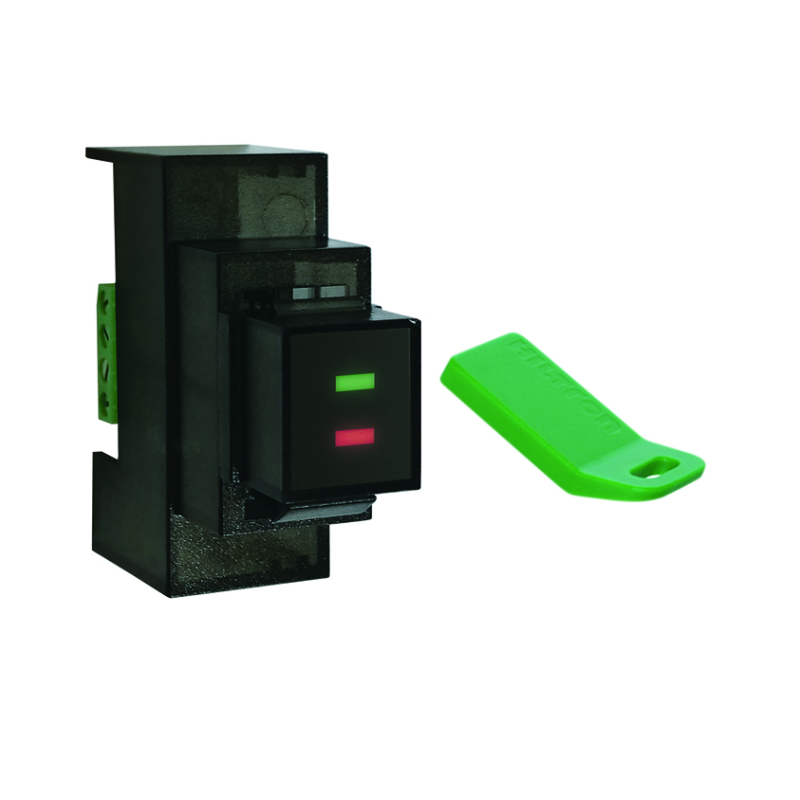

LF DX200 proximity reader
| Feature | Detail |
|---|---|
| Compatibility | PROTEC8GSM and TM800GSM control panels |
| Zone partialization | Yes, over RS485 |
| Installation | Installable inside any recessed luminaire end cap with RJ45 connection |
| Number of LEDs | 2 |
| Environmental class | 2 |
| Safety rating | 1 |
| Dimensions (W × H × D) | 19 mm × 33 mm × 47 mm |

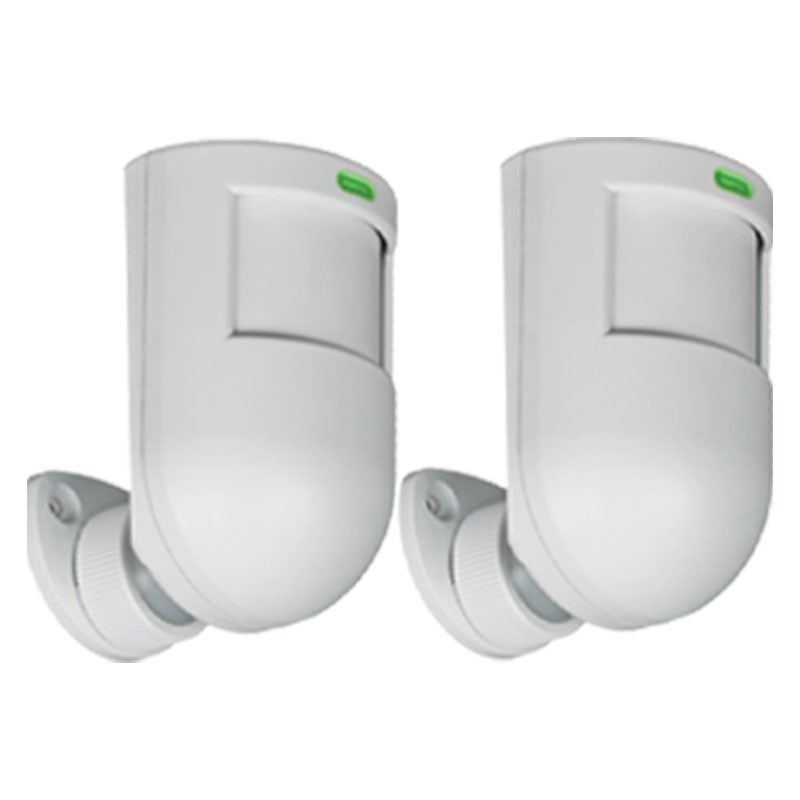

DG12 dual technology detector
| Feature | Detail |
|---|---|
| Dual digital sensor | 1 |
| Microwave sensor | 10.525 GHz |
| Junction | Anti-disorientation |
| Sensitivity | Adjustable with trimmer |
| Tamper protection | Anti-opening |
| Function | Tamper-resistant |
| High immunity | 30 V/m |
| Rated supply voltage | 12 VDC ±10% |
| Maximum power consumption | 18 mA |
| Lens beams | 23 (on 3 horizontal levels) |
| Coverage | 12 meters |
| Solid-state relay outputs | NC 100 mA, 50 VDC max |
| Initial stabilization time | 30 seconds |
| Dimensions (W × H × D) | 59 mm × 99 mm × 60 mm |

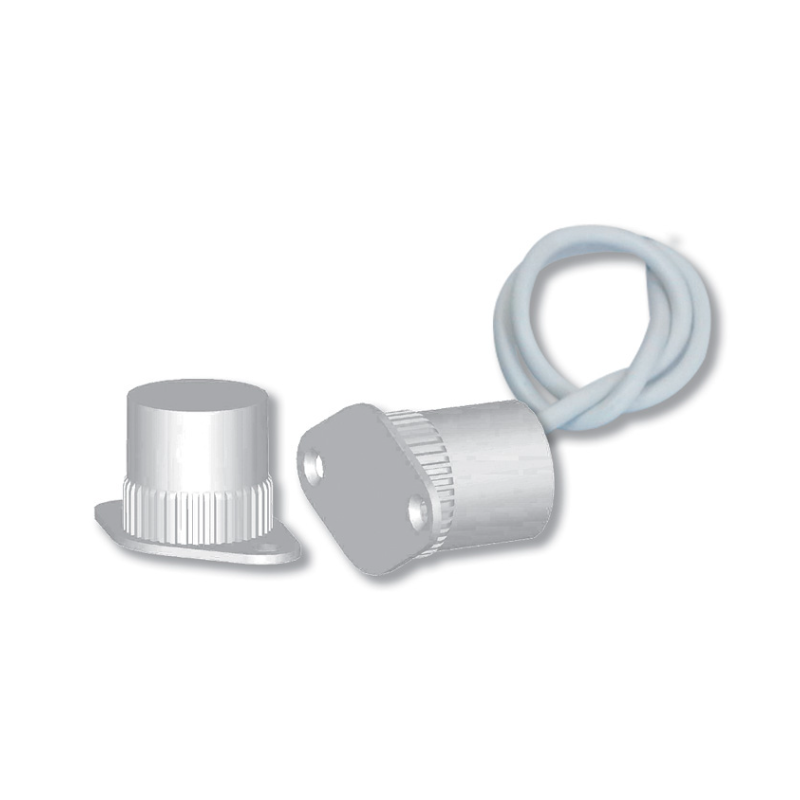

Cylindrical recessed contact C56
| Feature | Detail |
|---|---|
| Weight | 0.025 kg |
| Contact type | Recessed |
| Installation | Recessed on armored doors |
| Output terminals | 2 wires |
| Maximum voltage | 30V |
| Maximum current | 500 mA |
| Operating distance | 12 mm |
| Alarm output | NC |
| Cable length | 25 cm |
| Color | White |
| Container | Nylon |
| Safety Grade | 1 |
| Environmental class | 2 |
| Dimensions (L) | 36 mm |
| Dimensions (H) | 22 mm |
| Dimensions (D) | 19 mm |

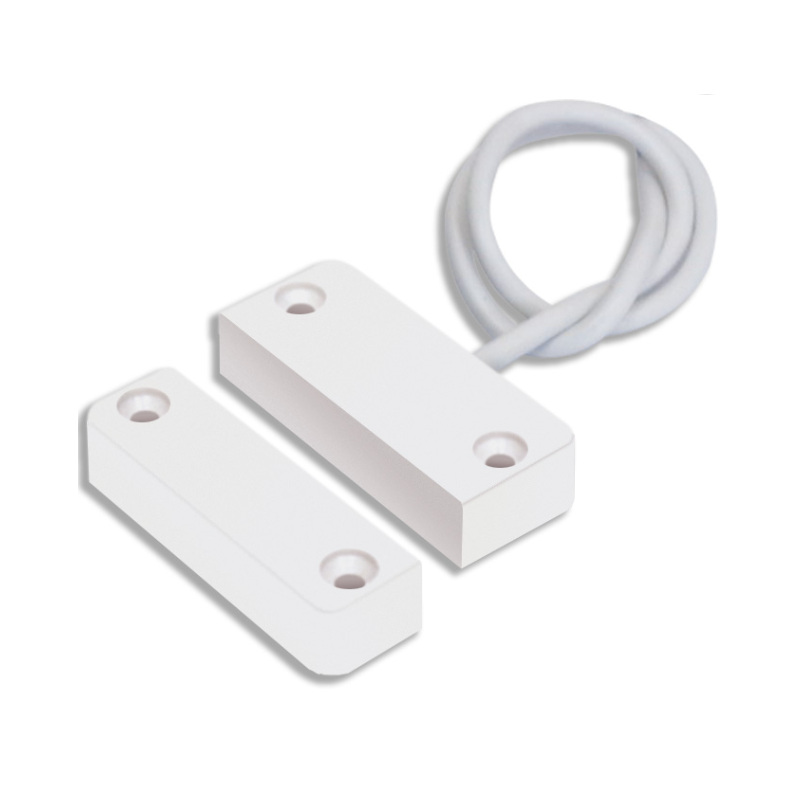

Magnetic contact REED C58
| Feature | Detail |
|---|---|
| Weight | 0.021 kg |
| Contact type | External |
| Installation | On doors and windows |
| Output terminals | 2 wires |
| Maximum voltage | 30V |
| Maximum current | 500 mA |
| Cable length | 25 cm |
| Operating distance | 18 mm |
| Alarm output | NC |
| Container | Nylon |
| Color | White |
| Safety Grade | 1 |
| Environmental class | 2 |
| Dimensions (L) | 16 mm |
| Dimensions (H) | 9 mm |
| Dimensions (D) | 40 mm |
There are no reviews
Data sheet
- KIT: Burglar alarm kits
- System: With Wires
