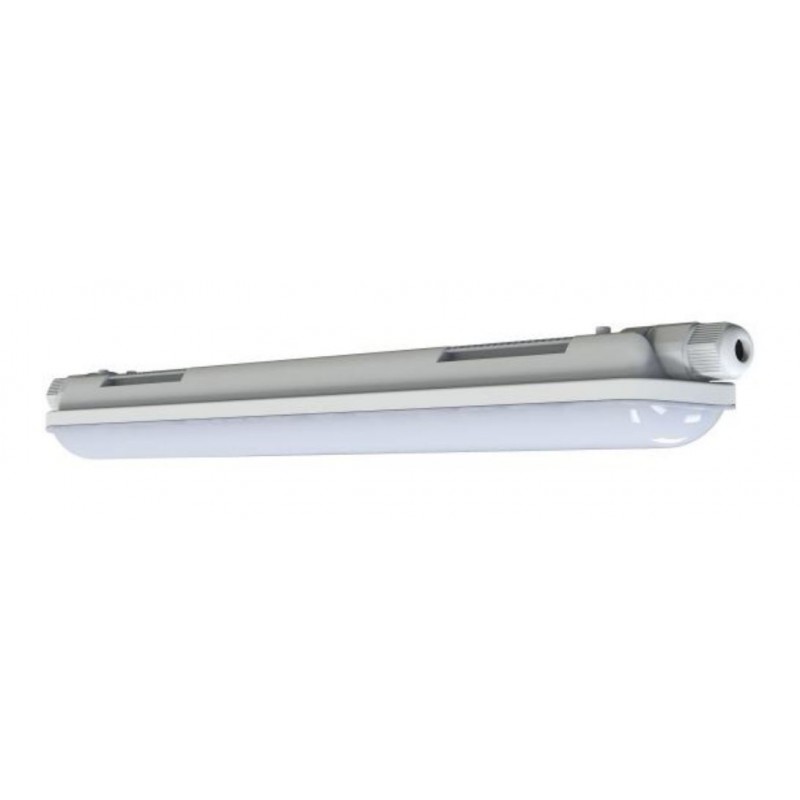

Ledvance Osram Watertight LED ceiling light 17W 4000K 0.6 metres (2x18)
LDV DPE3TH60017840G
4058075855809
LED watertight ceiling light Ledvance Osram DAMPPROOF ECO 3TH ON-OFF 17 W, IP65, natural light 4000 K. Ideal for industrial environments, warehouses, and covered parking areas:
-
Nominal voltage: 220/240V
-
Power 17 Watt with luminous flux 2835 lumens
-
High luminous efficacy: 167 lm/Watt
-
Natural light 4000 Kelvin with color rendering Ra 80
-
Durable polycarbonate body, grey color
-
Protection class II and impact resistance IK08
-
Quick connection with screwless terminals (N-E-L)
-
Protection degree: IP65
-
Long lifespan up to 100,000 hours
-
Installation: ceiling
€23.00
Items Available: 24
: 22
Watertight LED Ceiling Light Ledvance Osram, professional lighting for harsh environments
The LED watertight ceiling light Ledvance Osram DAMPPROOF ECO 3TH ON-OFF series (code DPE3TH60017840G) is designed to ensure high performance and long-term reliability in industrial and technical environments. Thanks to the IP65 protection rating, it is perfect for installations in places subject to dust, humidity, and water splashes, such as workshops, logistics warehouses, underground parking lots, and covered passages.
The natural light of 4000 Kelvin ensures clear and uniform visibility, ideal for work and transit activities, improving visual comfort and operational safety.
Energy efficiency and visual comfort
With a luminous flux of 2835 lumens and an efficacy of 167 lm/W, this ceiling light allows for energy savings of up to 68% compared to traditional fluorescent lamp fixtures. The power factor greater than 0.90 and the harmonic distortion less than 20% contribute to stable and efficient operation of the electrical system.
The low flicker (Pst LM < 1 and SVM < 0.4) ensures high visual comfort even during prolonged use, while the certified photobiological safety RG0 ensures no risk to eyesight.
Simple installation and long lifespan
The DAMPPROOF ECO 3TH is equipped with a 3-pole screwless connection terminal, allowing for quick installation without the use of tools. The ceiling surface mounting makes the product extremely versatile for numerous professional applications.
The body and cover in polycarbonate ensure mechanical resistance and durability over time. With a lifespan of up to 100,000 hours and 100,000 switching cycles, it represents a reliable and low-maintenance solution for continuous lighting systems.
It operates stably even in harsh environmental conditions, with an operating temperature from -20 °C to +55 °C, ensuring optimal performance even in non-air-conditioned environments.
Technical characteristics
| ELECTRICAL DATA | |
|---|---|
| Nominal power | 17.00 W |
| Nominal voltage | 220–240 V |
| Mains frequency | 50/60 Hz |
| Nominal current | 91 mA |
| Inrush current (IP) | 5.6 A |
| Maximum number of fixtures on B16 switch | 134 |
| Maximum number of fixtures on C10 switch | 87 |
| Maximum number of fixtures on C16 switch | 140 |
| Power factor | > 0.90 |
| Total harmonic distortion (THD) | < 20 % |
| Protection class | II |
| PHOTOMETRIC DATA | |
| Luminous flux | 2835 lm |
| Luminous efficacy | 167 lm/W |
| Colour temperature | 4000 K (natural light) |
| Colour rendering index (CRI) | Ra 80 |
| Standard colour deviation | ≤ 6 SDCM |
| Flicker value (Pst LM) | < 1 |
| Stroboscopic effect (SVM) | < 0.4 |
| Photobiological safety group EN 62778 | RG0 |
| Photobiological safety group EN 62471 | RG0 |
| Beam angle | 120° |
| DIMENSIONS AND WEIGHT | |

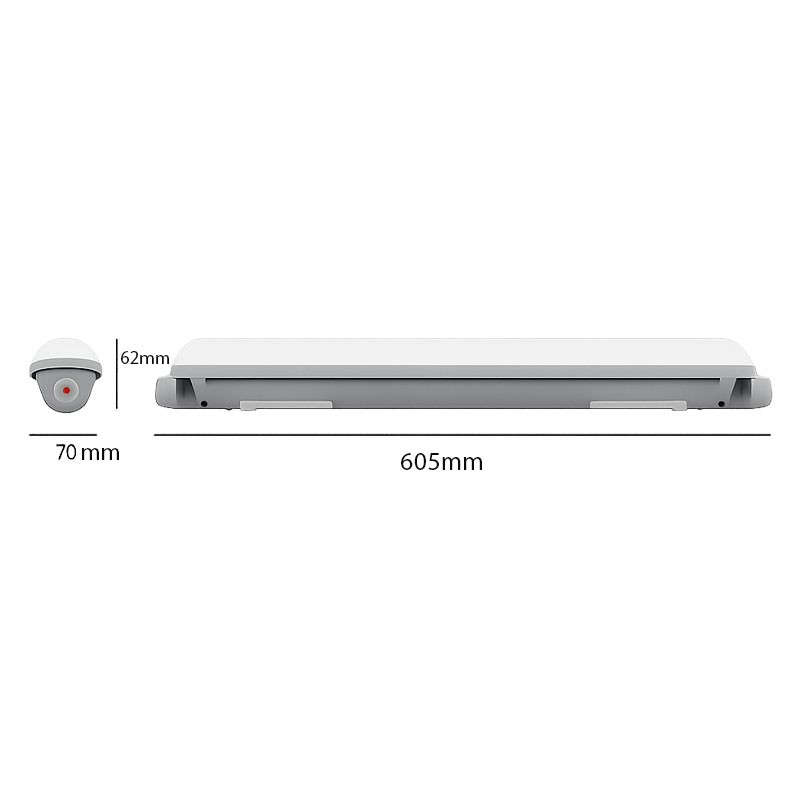

| Dimensions (L × W × H) | 605 × 70 × 62 mm |
| Weight | Approximately 483 g |
| MATERIALS AND COLOURS | |
| Product and housing colour | Grey |
| Body/cover material | Polycarbonate (PC) |
| Emitting surface material | Polycarbonate (PC) |
| Glow wire test (IEC 60695-2-12) | 650 °C |
| Mercury content | 0.0 mg |
| APPLICATIONS AND MOUNTING | |
| Ambient temperature range | -20 °C / +60 °C |
| Storage temperature | -20 °C / +80 °C |
| Connection type | Screwless terminal, 3 poles (N, E, L) |
| Protection rating | IP65 |
| Impact protection class | IK08 |
| Dimmable | No |
| Mounting type | Surface |
| Posizione di montaggio | Ceiling |
| With light source | Yes |
| Replaceable light source | No |
| AVERAGE LIFE | |
| Duration L70/B50 @ 25 °C | 100,000 hours |
| Duration L80/B10 @ 25 °C | 100,000 hours |
| Estimated duration L80/B50 @ 25 °C | 100,000 hours |
| Duration L90/B10 @ 25 °C | 54,000 hours |
| Number of switching cycles | 100,000 |
| Current flow | 160 mA |
| ECE – Ripple current flows | < 5 % |
| ECE lifespan | 100,000 hours |
| CERTIFICATIONS AND STANDARDS | |
| Emergency operation test type | None |
| Standard | CE / CB / UKCA / EAC |
| Limited surface temperature | Yes |
| Impact protection against ball | No |
| Replaceable LED module | Non-replaceable |
There are no reviews
Data sheet
- Type: Led watertight ceiling lights
- Staining: Natural
- Degree of protection: IP65
- Length: 0,6 meters
- Watts: From 1 to 20W
- Integrated Led: YES
- Colour temperatures: 4000 Kelvin
