Euroacque proportional dosing unit with by pass and swivel jig F 1/2 DBLUB00D
EUQ DBLUB00D
8059617082147

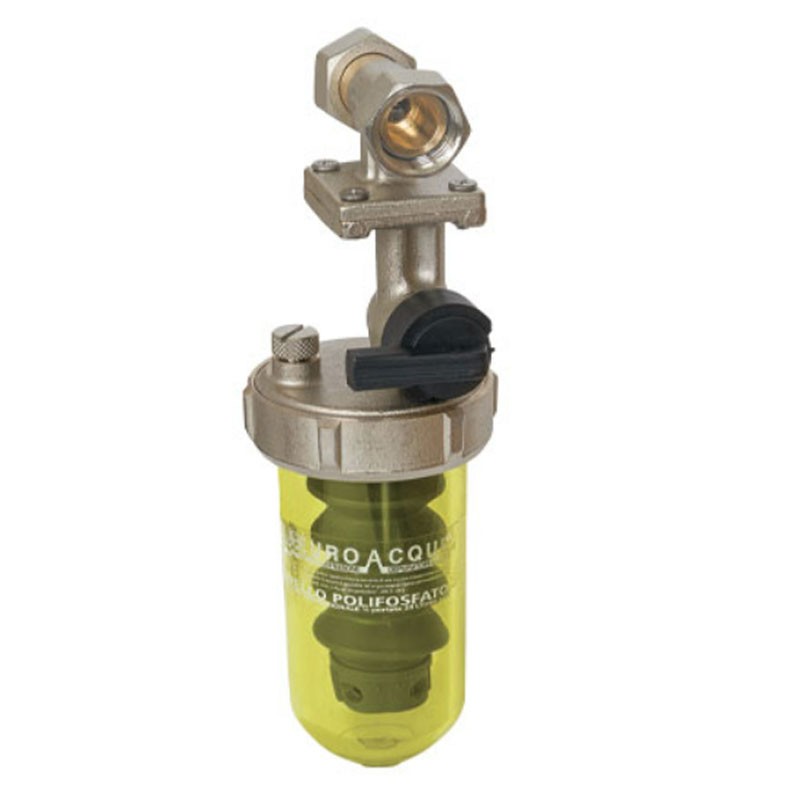

Euroacque proportional dosing unit with by-pass and swivel jig with the following features:
- Connections: Female 1/2
- Flow rate: 20 Lt/Min
- Working pressure: Max 10 bar
- Max pressure: 28 bar
Proportional polyphosphate powder or cylinders dispensers with swiveling connections (rotates in 90° steps), built-in tap by-pass on the head in Chrome Brass, Brass pot stop ring nut, front vent screw. The connections have 2 tangs and internal bacteriostatic bellows.
A cartridge polyphosphate charge is included.
€71.82
Items Available: 19
: 4
The equipment is operated on the principle of proportional dosing using the venturi system D/BLU are proportional dosing units designed to meet the most demanding installation, maintenance and refill requirements. They are equipped with a flow-diverting valve (BY-PASS, except for the D/ BLU/S version) that, by sliding smoothly on a double O.RING rail, allows the interruption of the water flow inside the dosing unit to allow Euroacque polyphosphates to be refilled easily, cleanly, quickly and safely without having to shut down the general line.
These are ergonomic dispensers that make it easy to open the container, eliminating the risk of bumping the other parts of the dispenser with your hands. In addition, the convenient tang coupling (excluding D/BLU/H model not equipped with tangs) between the coupling and the body allows 90° step rotations for special placements.
The D/BLU is equipped with a screw vent placed vertically for maximum ease of opening the dispenser. The dispenser consists of 6 main elements:
- Rotatable attachments
- Central body (with built-in-by pass, for R, D, H models)
- Vent
- Pot-stopper ring
- Suction bellows
- Vessel
- Gasket/screw kit
There are no reviews
Data sheet
- Type: Dispensers
