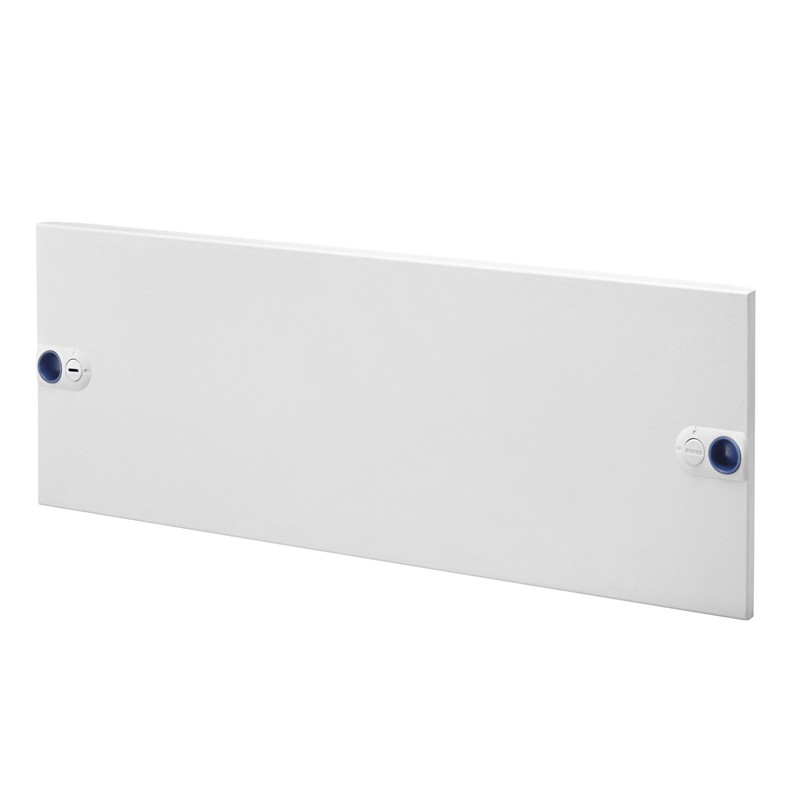

Gewiss closed front panel 24 modules 600x200 GW47175
GEW GW47175
8011564096349
CVX 160I/160E Gewiss full/closed front panel, 24 modules, external dimensions BxH 600x200 mm.
€22.02
Items Available: 61
: 10
Characteristics:
- Rated operational voltage (Ue): up to 500 V AC
- Rated insulation voltage (Ui): up to 500 V AC
- Rated impulse withstand voltage (Uimp): 6 kV 1,2/50 μs
- Rated current (In): up to 160 A
- Rated conditional short-circuit current (Icc): 10 kA
- Rated peak current (Ipk): 17 kA
- Rated short-time withstand current (Icw): 10 kA (1s)
- Protection against indirect contacts: metal casing prepared for grounding
- Operating temperature: -5 °C ÷ 40 °C
- Storage temperature: -25 °C ÷ 55 °C
- Sheet steel thickness metal casing: 10/10 mm
- Sheet steel door thickness: 12/10 mm
- Painting of the metal sheet with epoxy-polyester powder colour Grey RAL 7035
- Standards: EN 61439-1 and EN 61439-2, EN 62208, CEI 23-48, CEI 23-49
There are no reviews
Data sheet
- Type: Panels
