Vimar Plana 2P+E 16A Type P17/11 250V IP20 White 14203
VIW 14203
8007352106680
Vimar Plana two-pin socket, safety, compatibility and reliability in a glossy white flush-mounted module with the following features:
-
Rated current: 16A
-
Rated voltage: 250V
-
Number of modules: 1 fruit
-
Type of mounting: Recessed
-
Connection: Screw terminal
-
Degree of protection: IP20
-
Color: White
Module for frames 14613, 14614, 14617, 14601, 14602, 14620.
€5.10
Items Available: 45613
: 6230
Frequently bought together
SICURY socket P17/11 for every domestic installation
The white 2P+E 16A P17/11 socket, belonging to the SICURY range, is designed to meet the requirements of safety, reliability and compatibility with Italian standards. It is the ideal choice for civil electrical installations where a versatile and functional socket outlet with simple and safe installation is required.
Compact design and simple installation
With a 1-module fruit format, the socket is compatible with the main civil flush-mounted plates. Installation is via screw terminals, ensuring a stable and durable connection. The thermoplastic plastic body provides good wear resistance, while the absence of halogens makes it suitable even in environments where low smoke emission in case of fire is required.
Increased safety for the user
Equipped with increased contact protection, this socket provides increased safety for the user during plug insertion and removal, reducing the risks of accidental contact with live parts. It conforms to IP20 rating, suitable for dry and protected indoor installations.
Compatibility with Italian 10A and 16A plugs.
The two-pin configuration type P17/11 allows the insertion of 10A and 16A Italian plugs, making it versatile for use with numerous electrical appliances, home appliances and everyday electronic devices. Its rated voltage is 250V, with an operating frequency of 50-60 Hz, ideal for European power grid standards.
Aesthetics and elegant finish
The high-gloss white finish offers a neutral, modern aesthetic that easily complements any decor style. The untreated surface maintains the natural effect of the plastic material, ensuring a clean and uncluttered appearance over time.
Technical characteristics Vimar Plana two-pin socket
| Parameter | Value |
|---|---|
| Socket type | 2P+E Italian type P17/11 |
| Rated current | 16 A |
| Rated voltage | 250V |
| Operating frequency | 50/60 Hz |
| Number of modules | 1 |
| Mounting type | Recessed |
| Connection | Screw terminal |
| Increased contact protection | Yes |
| Protection class | IP20 |
| Material | Thermoplastic, halogen-free |
| Color | White |
| Finish | Glossy |

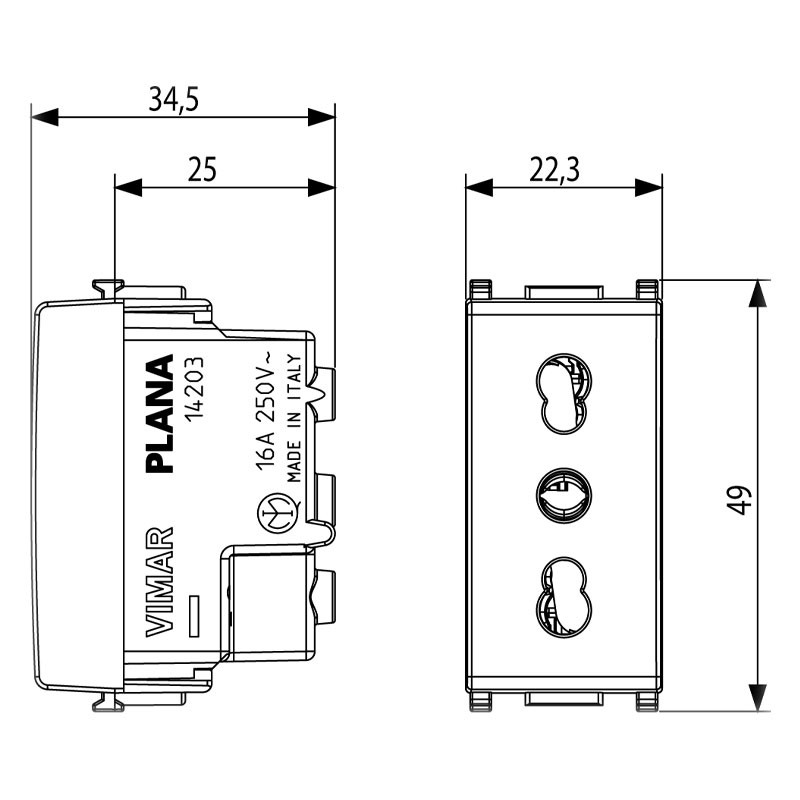

| Width | 22.3 mm |
| Height | 49 mm |
| Depth | 34.5 mm |
| Lockable / with switch | No |
| Marking | Not present |
