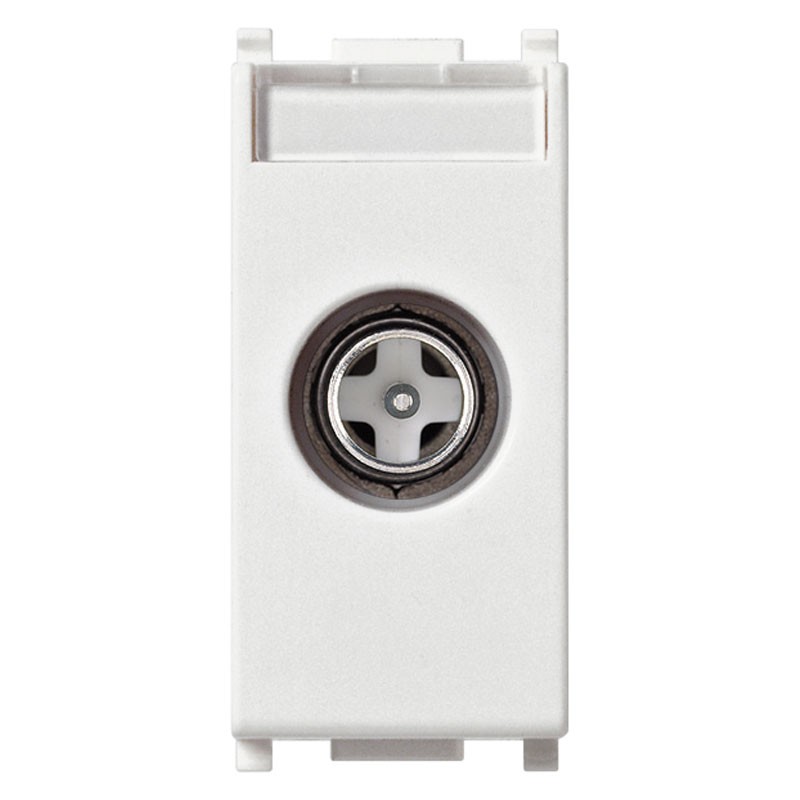

Vimar Plana Direct TV-RD-SAT socket White 14300.01

Vimar
Vimar
VIW 14300.01 8007352101234

Vimar Plana direct TV-RD-SAT receptacle with attenuation of only 1 dB, current flow 24V 500mA, white color. Ideal for low-loss TV and SAT systems, with the following features:

  • Operating frequency: 5 - 2400 MHz

  • Shunt attenuation: 1 dB

  • Number of outputs: 1

  • Output connector: Male

  • Current flow: 24V - 500 mA max

  • Material: Plastic

  • Color: White

  • Mounting: Snap-in

  • Application: Terrestrial TV, FM radio, SAT, DVB-T, DVB-S/S2

Do you have questions about this product or did you not find what you were looking for? Ask us!
Vimar Plana Direct TV-RD-SAT socket White 14300.01
€8.83
€8.83

€8.83
Tax included
Calculate shipping cost
Items Available: 2156
Further availability of the manufacturer
€8.83

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Direct TV-RD-SAT socket: optimal signal for digital and satellite installations

The TV-RD-SAT direct coaxial socket is designed to ensure uncompromised signal transmission in terrestrial TV, FM radio and SAT installations. With an extended frequency band from 5 to 2400 MHz, this socket is suitable for both analog and digital signals, including DVB-T and DVB-S/S2, ensuring excellent visual and sound quality.

High performance with minimal attenuation

With a shunt attenuation of only 1 dB, the socket maintains signal integrity even over long distances, minimizing losses. The very low link attenuation-just 0.10 dB at 860 MHz and 0.20 dB at 2150 MHz-makes it an ideal choice for professional installations where maintaining signal level is essential.

Compatible with remote power supply

The receptacle has DC current pass-through of up to 24V and 500 mA, a key feature for powering pole-mounted amplifiers, LNBs or other active devices directly through the coaxial cable, simplifying installation and avoiding additional wiring.

Functional design and stylish finish

High-quality plastic body with white finish blends seamlessly into the plates and holders of major civic series. Snap-on fixing ensures quick installation, while compatibility with the most common systems makes it easy to fit into any home or condominium TV/SAT system.

Technical characteristics Vimar Plana TV socket

Parameter Value
Operating frequency 5 - 2400 MHz
Tap attenuation 1 dB
Link attenuation at 860 MHz 0.10 dB
Link attenuation at 2150 MHz 0.20 dB
Number of outputs 1
Output connector Male
Current flow 24 V / 500 mA max
Supported applications Terrestrial TV, FM radio, SAT, DVB-T, DVB-S/S2
Compatibility Remote power supply active devices
Installation type Inlet socket
Mounting Snap-in
Material Plastic
Color White - RAL 9003
