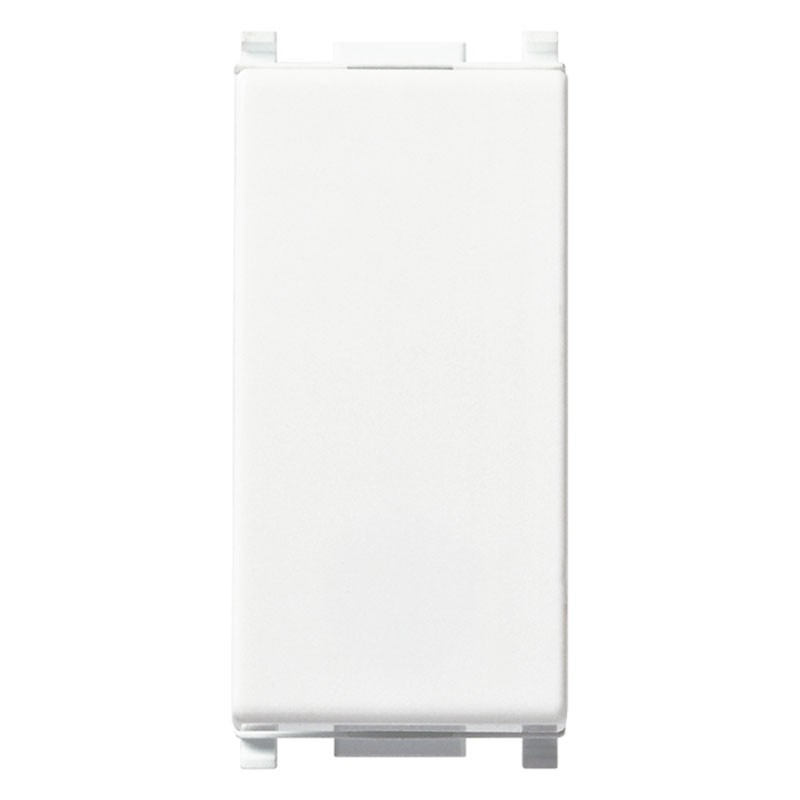

Vimar Plana Intermediate Switch 1P 16AX 250V IP40 White 14013

Vimar
Vimar
VIW 14013 8007352106536

Vimar Plana Intermediate Switch, with interchangeable rocker button. Perfect for civil installations, it offers functionality and discreet design, with the following features:

  • Number of poles: 1P

  • Rated current: 16AX

  • Rated voltage: 250V

  • Color: Glossy white

  • Material: Thermoplastic, halogen-free

  • Control type: Tilt button

  • Mounting: Recessed

  • Modules: 1

  • Degree of protection: IP40

Do you have questions about this product or did you not find what you were looking for? Ask us!
Vimar Plana Intermediate Switch 1P 16AX 250V IP40 White 14013
€11.85
€11.85

€11.85
Tax included
Calculate shipping cost
Items Available: 2642
Further availability of the manufacturer
€11.85

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

1P 16AX Intermediate Switch: intelligent control of light in any environment

The white 1P 16AX intermediate switch is an essential component for electrical systems that require advanced lighting control from multiple locations. Its function allows, in combination with two diverters, to turn a light on and off from three or more different positions, making it perfect for hallways, stairwells, living rooms and bedrooms.

Compact and versatile design for every installation need

Equipped with a modular 1-fruit body, the inverter is easily installed on standard holders. Press-fit attachment and screw terminal for electrical connections ensure simple and secure mounting. The glossy white color and minimalist design make it suitable for any decor style, modern or classic.

Illuminable function and quality materials

The inverter can be illuminated through the addition of a replaceable LED, which is useful for locating in the dark and for controlling the light's illumination (tell-tale or orientation function). It is made of halogen-free thermoplastic, a flame-retardant and safe material ideal for residential and professional applications.

Performance and regulatory compliance

The inverter supports a maximum load of 200W for lamps with integrated ballasts and meets the requirements of IEC 60669-1:2017. It is also rated with an IP40 degree of protection, suitable for indoor non-humid environments.

Vimar Plana Intermediate Switch Technical Specifications

Parameter Value
Function Intermediate Switch
Number of poles 1P
Rated current 16 AX
Rated voltage 250 V~
Max. load compatibility 200 W (lamps with integrated ballast)
Control type Tilt button
Lighting Optional, replaceable LED
Color Glossy white (RAL 9003)
Material Thermoplastic, halogen-free
Mounting Recessed
Fixing Snap-on
Modularity 1 module
Degree of protection IP40

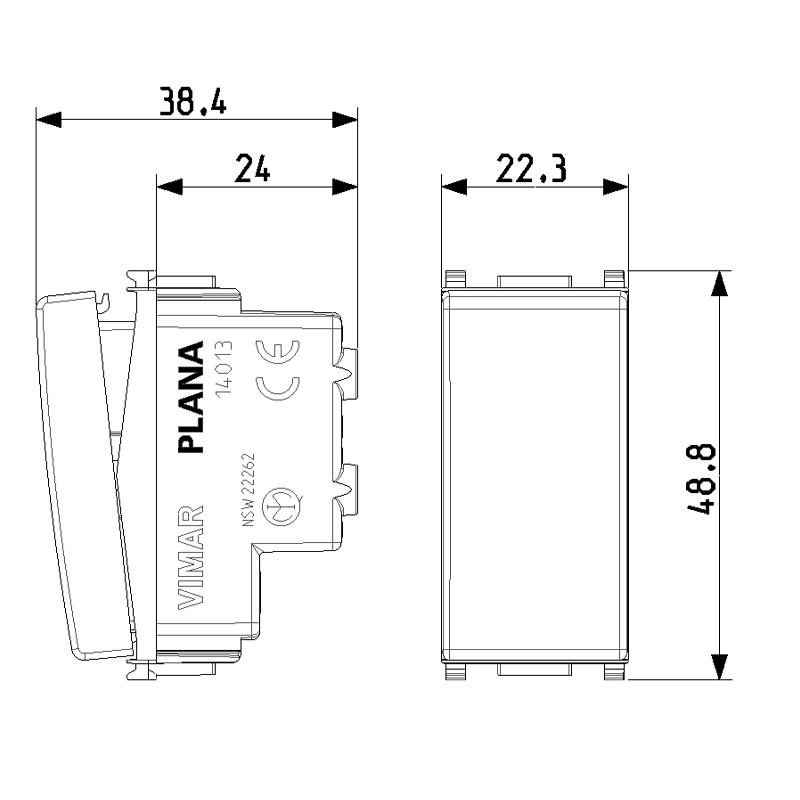

Luminaire dimensions (W x H x D) 22.3 × 49 × 38.7 mm
Recessed depth 24 mm
Reference standard IEC 60669-1:2017
