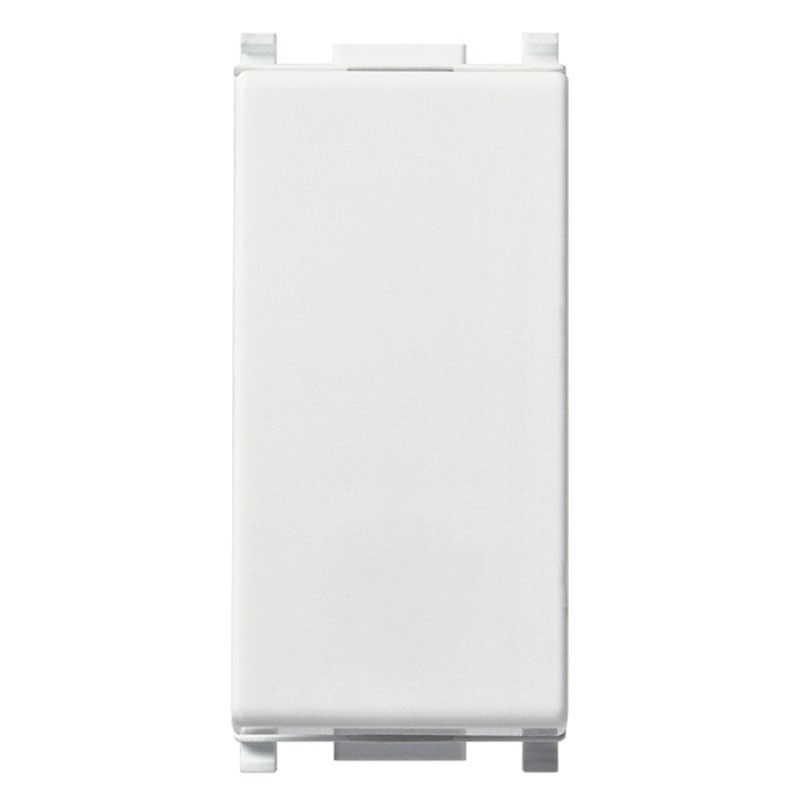

Vimar Plana 1P 10AX 250V 1 Module Single-Pole Diverter Switch White 14004
VIW 14004
8007352106390
Vimar Plana single-pole diverter for controlling light points from two positions. Compatible with civil and commercial installations, it features replaceable button, possibility of LED backlighting and modern glossy white design, with the following features:
-
Rated current: 10 AX
-
Rated voltage: 250V
-
Maximum lamp power with integrated power supply: 100 W
-
Number of modules: 1
-
Optional lighting: Yes (replaceable LED)
-
Body material: Halogen-free thermoplastic
-
Color: Glossy white
-
Installation: Recessed
-
Fixing: Snap-in
-
Degree of protection: IP40
€3.64
Items Available: 13491
: 2705
Frequently bought together
Two-point light control diverter with style and functionality
The 1P 10AX 250V diverter switch allows control of one light point from two different locations, typically used in hallways, bedrooms and passage areas. The button can be illuminated with LEDs, ideal for locating the control in the dark.
Modern design and safe materials
Made of halogen-free thermoplastic plastic, the diverter features a shiny, glossy surface that is dirt-resistant and easy to clean. The button is replaceable to allow customization of the plate.
Stable fixing with patented system
Thanks to Vimar's Plack Clack system, the device attaches to the plate with a stable and secure click, ensuring the rigidity of the light point even over time and during intensive use.
Technical Specifications Vimar Diverter Switch
| Rated current | 10 AX |
| Rated voltage | 250V |
| Max lamp power with integrated ballast | 100 W |
| Number of modules | 1 |
| Control type | Tilt button |
| Optional lighting | Yes (replaceable LED) |
| Lighting function | Control / Orientation |
| Body material | Halogen-free thermoplastic |
| Color | Glossy white (RAL 9003) |
| Surface type | Glossy |
| Installation | Recessed |
| Fixing | Snap-in (Plack Clack®) |
| Degree of Protection | IP40 |
| Connection type | Screw terminal |
| Recessed depth | 24 mm |

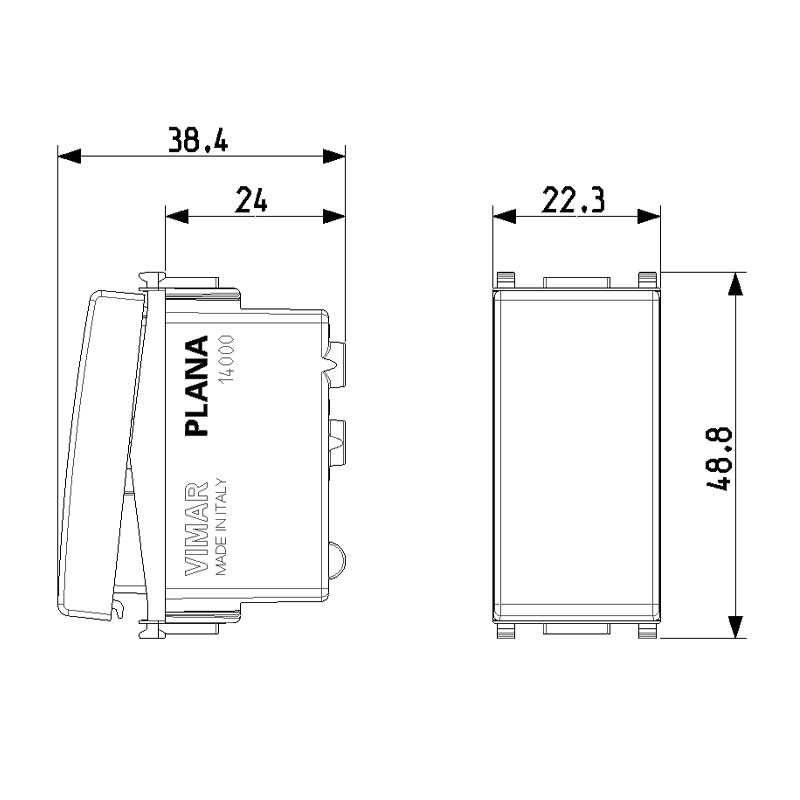

| Dimensions (W × H × D) | 22.3 × 49 × 38.4 mm |
Ottimo super veloce davvero eccezionale unico eccezionale
articolo conforme a descrizione, fornitore consigliato
PRODOTTO DI OTTIMA QUALITA' BEN CONFEZIONATOED INTEGRO
buona fattura la consiglio, costruttivamente sono nella norma
Tutto come da descrizione. Prodotto di ottima fattura!
prodotto conforme prodotto conforme prodotto conforme
Dispositivo ben fatto e di facile installazione.
ottimo prodotto anche se un pò caro.
Lo consiglio vivamente qualità prezzo imbattibili
Ottimo prodotto.
Vimar sempre una garanzia
Data sheet
- Main Commands: Multiway switches
