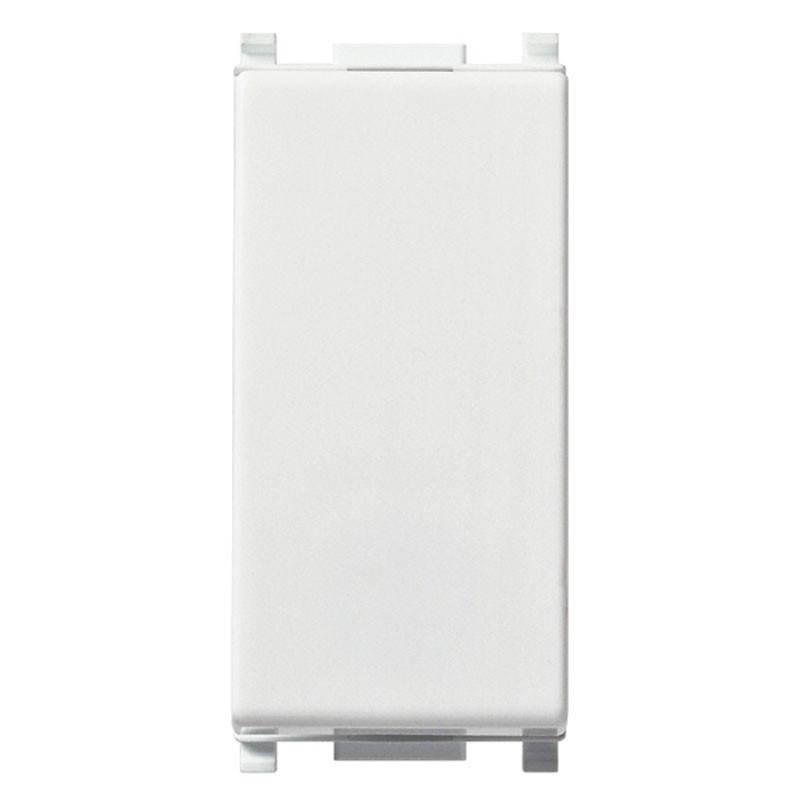

Vimar Plana 1P 10AX 250V Single-Pole Circuit Breaker White 14000
VIW 14000
8007352106307
Vimar Plana single-pole switch with replaceable button and lighting option. Ideal for recessed installations in residential or professional environments, with the following features:
-
Rated current: 10 AX
-
Rated voltage: 250V
-
Number of modules: 1
-
Command type: Bascula / Button
-
Color: White
-
Illuminable: Yes (replaceable LED)
-
Material: Heat-resistant plastic, halogen-free
-
Degree of Protection: IP40
-
Installation: Recessed
-
Fixing: Snap-in (lock in place)
€2.81
Items Available: 16950
: 2359
Frequently bought together
Versatile Vimar Plana switch for modern installations
This single-pole 10AX switch is ideal for controlling lights and small loads in civil environments. It supports up to 100 W for lamps with integrated ballasts, and is perfect for standard or LED lighting.
Functional and aesthetic design
Equipped with a replaceable rocker button, it can be combined with plates of different colors or finishes. The button can be illuminated (replaceable LED not included), useful for both visual control of circuit status and a night orientation function.
Compatibility and safety
Thanks to modular compatibility (1 module) and screw terminal connection, it easily fits into the holders and plates of the main civil series. It is designed with heat-resistant and halogen-free materials for added safety and durability.
Technical Specifications Vimar Unipolar Switch
| Rated current (In) | 10 AX |
| Rated voltage | 250 V |
| Max lamp wattage with integrated ballast | 100 W |
| Number of modules | 1 |
| Control type | Toggle / Button |
| Illuminable | Yes (replaceable LED) |
| Color | Glossy white (similar to RAL 9003) |
| Material | Heat-resistant plastic, halogen-free |
| Degree of protection | IP40 |
| Installation | Recessed |
| Fixing | Snap-on |
| Connection Type | Screw terminal |
| Recessed depth | 24 mm |

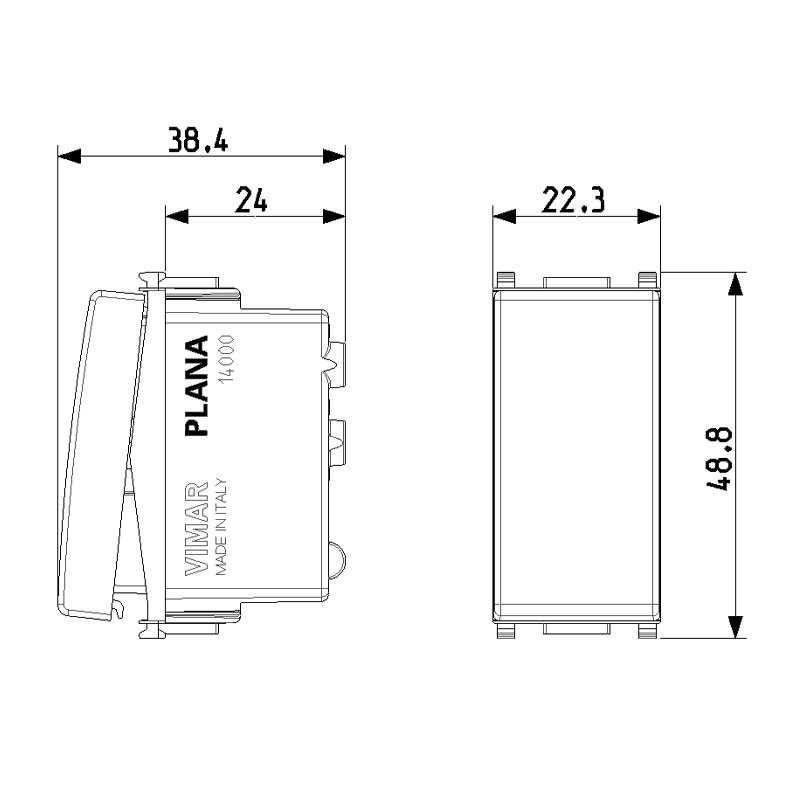

| Dimensions (W × H × D) | 22.3 × 49 × 38.4 mm |
Ottimo super veloce davvero eccezionale unico eccezionale
PRODOTTO DI OTTIMA QUALITA' BEN CONFEZIONATOED INTEGRO
Interruttore a un contatto, classico, funzionale..
buona fattura la consiglio, costruttivamente sono nella norma
Tutto spettacolare,la qualità Vimar è impareggiabile,attualmente i migliori sul mercato,la serie plana un must qualità/prezzo
Come da descrizione. Tutto perfettamente funzionante
Tutto come da descrizione. Prodotto di ottima fattura!
ottimo prodotto base ma funzionale. consigliato
Da consigliare, ottimo prodotto giusto rapporto tra qualita' e prezzo, da utilizzare meno imballo x la spedizione
Qualità prezzo imbattibili un buon prezzo
Data sheet
- Main Commands: Switches
