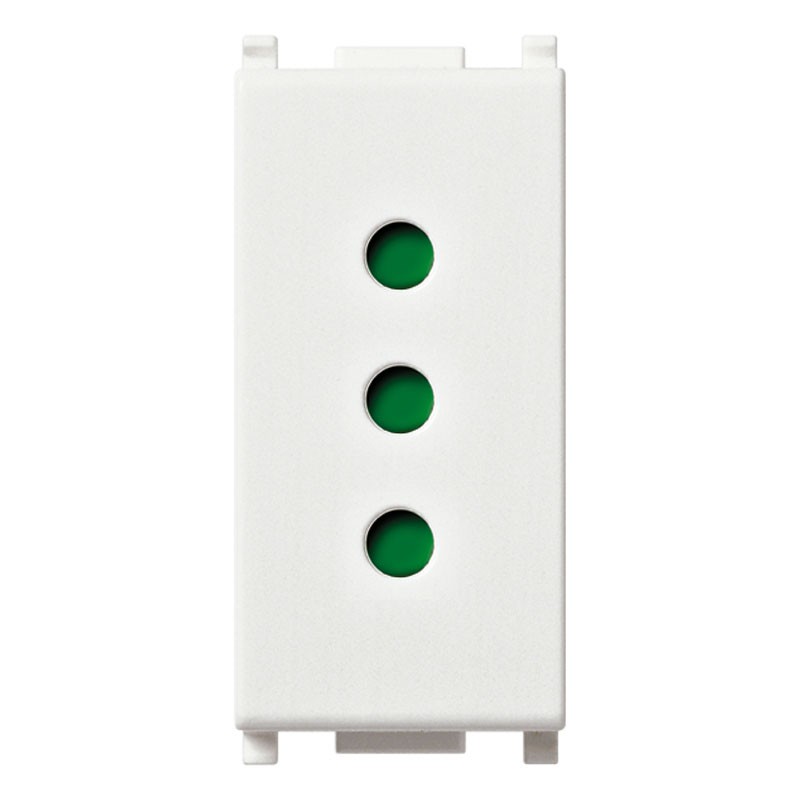

Vimar Plana socket 2P+E 10A type P11 Italian standard White 14201
VIW 14201
8007352106635
Sicury Vimar Plana Italian standard socket outlet. Safe, compact and ideal for recessed civil installations, with accidental contact protection, with the following features:
-
Rated current: 10A
-
Rated voltage: 250V
-
Number of modules: 1
-
Color: White
-
Type of connection: Screw terminal
-
Mounting: Recessed
€4.72
Items Available: 2548
: 758
Frequently bought together
SICURY 2P+E 10A socket outlet: safety and compactness for the electrical system
The SICURY 2P+T 10A type P11 socket outlet is an essential component for residential and professional electrical installations. Thanks to its compact 1-module design, it is perfect for recessed installations in tight spaces while maintaining high performance and reliability.
Compatibility with Italian P11 standard
This socket is designed according to the Italian standard type P11, suitable for 10A plugs, with rated voltage 250V and operating frequency 50-60 Hz. Its versatility makes it ideal for connecting common electrical devices such as lamps, small appliances and electronic devices.
Built-in protection and safety
SICURY technology offers increased protection against accidental contact, making the outlet safe even in domestic environments. Connection via screw terminals ensures stability and ease of installation.
Easy integration into installations
The socket can be installed in any flush-mounting box compatible with 1-module inserts. It does not have a hinged cover or lighting, making it a simple, functional and durable solution.
Technical Characteristics Vimar Plana Socket
General information
| Parameter | Value |
|---|---|
| Type | 2P+E socket outlet type P11 |
| Standard | Italian 10A |
| Number of modules | 1 |
| Mounting | Recessed |
| Increased protection | Yes |
| Degree of Protection | IP20 |
Electrical data
| Parameter | Value |
|---|---|
| Rated current | 10 A |
| Rated voltage | 250 V~ |
| Frequency | 50 to 60 Hz |
| Connection type | Screw terminal |
Materials and finish
| Parameter | Value |
|---|---|
| Color | Glossy white (RAL 9003) |
| Material | Halogen-free thermoplastic |
| Finish | Glossy, untreated |

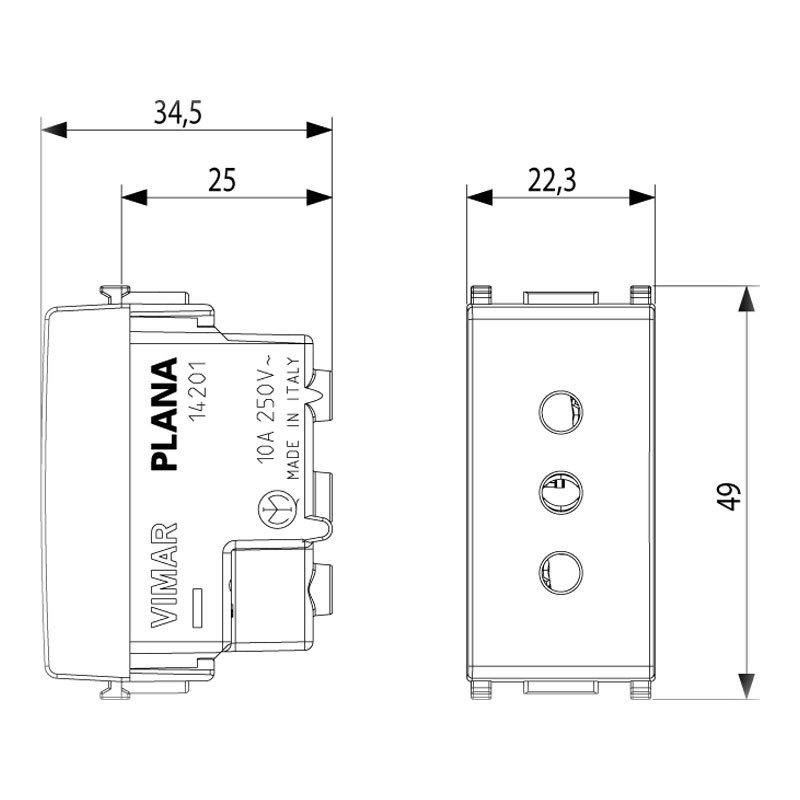

Dimensions
| Parameter | Value |
|---|---|
| Width | 22.3 mm |
| Height | 49 mm |
| Depth | 24 mm |
Tutto spettacolare,la qualità Vimar è impareggiabile,attualmente i migliori sul mercato,la serie plana un must qualità/prezzo
qualità del prodotto come da casa madre
Pezzo corrisponde perfettamente a ciò che è indicato nella pagina wed del sito
Presa di ottima costruzione e facile montaggio
Perfettamente rispondete alle mie aspettative.
articolo perfetto, consigliato l'acquisto
Vimar Plana una garanzia, solidità, semplicità di montaggio.
Materiale buono prezzo normale sono sodisfatto
Ottimo prodotto rispecchia in pieno la descrizione
Frutti vimar serie plana buoni rapporto qualità prezzo buonissimo
Data sheet
- Main Commands: Power Sockets
